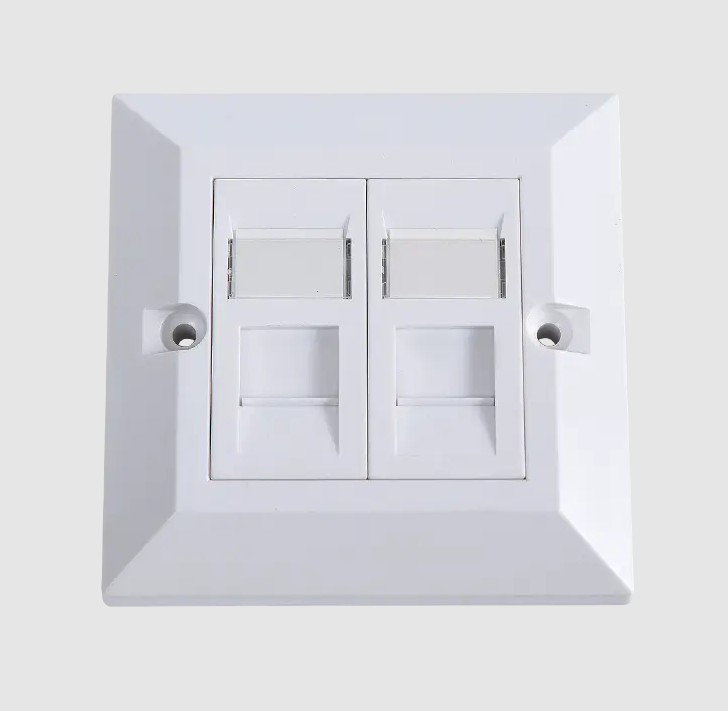

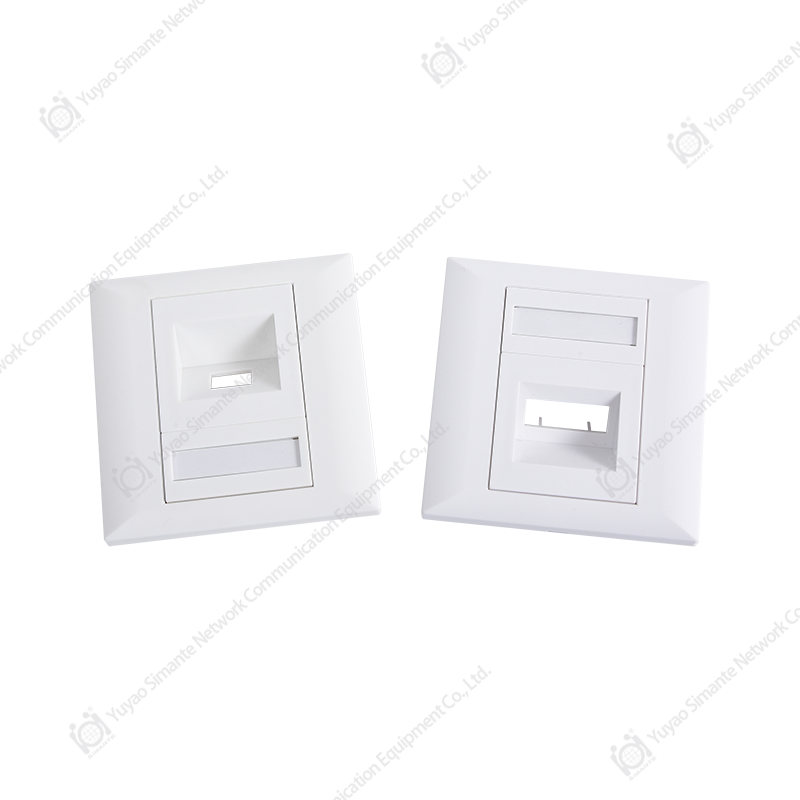

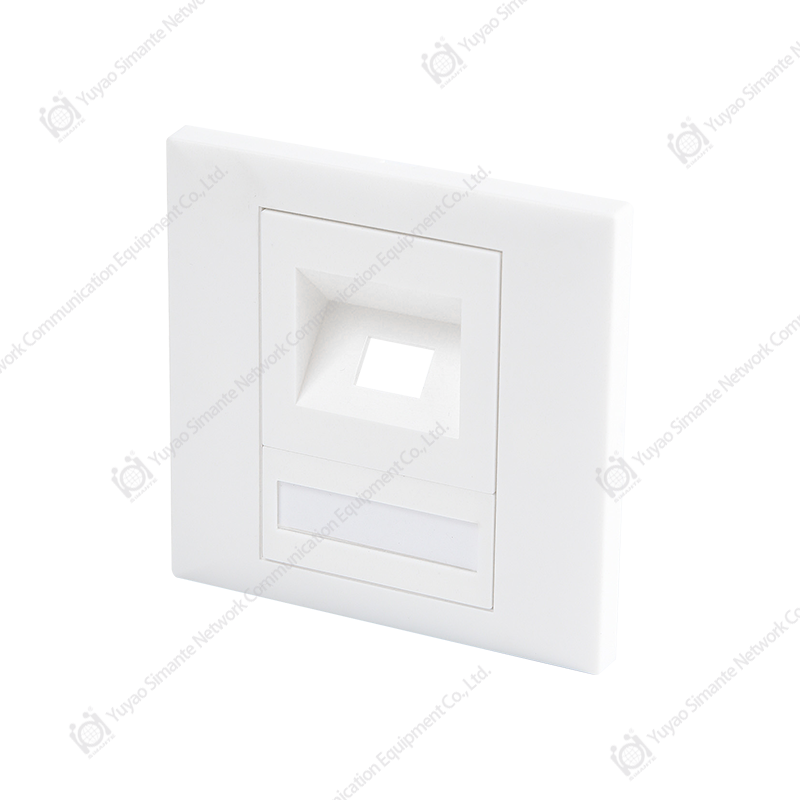

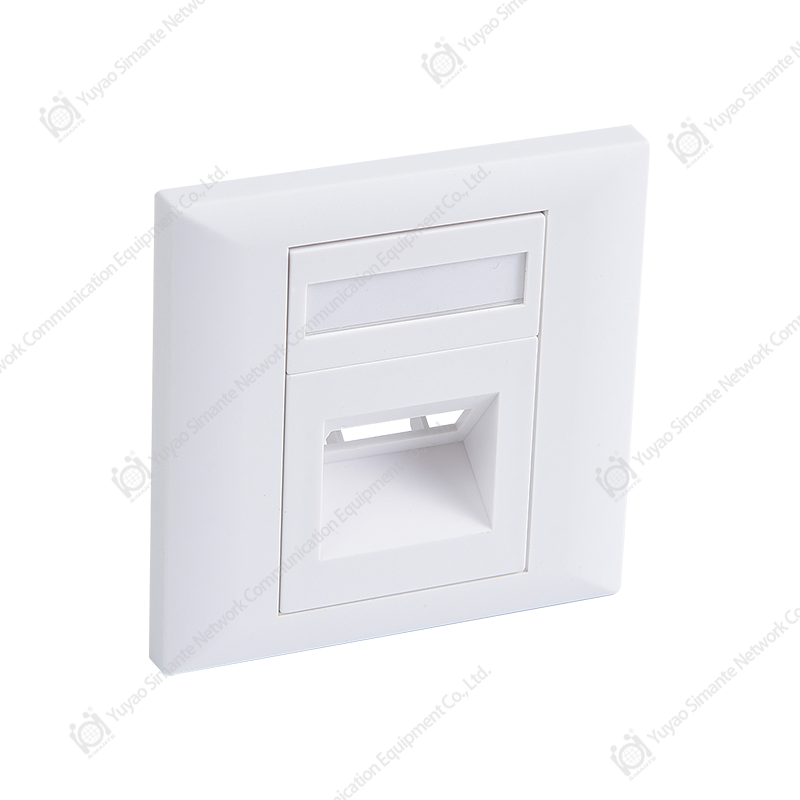

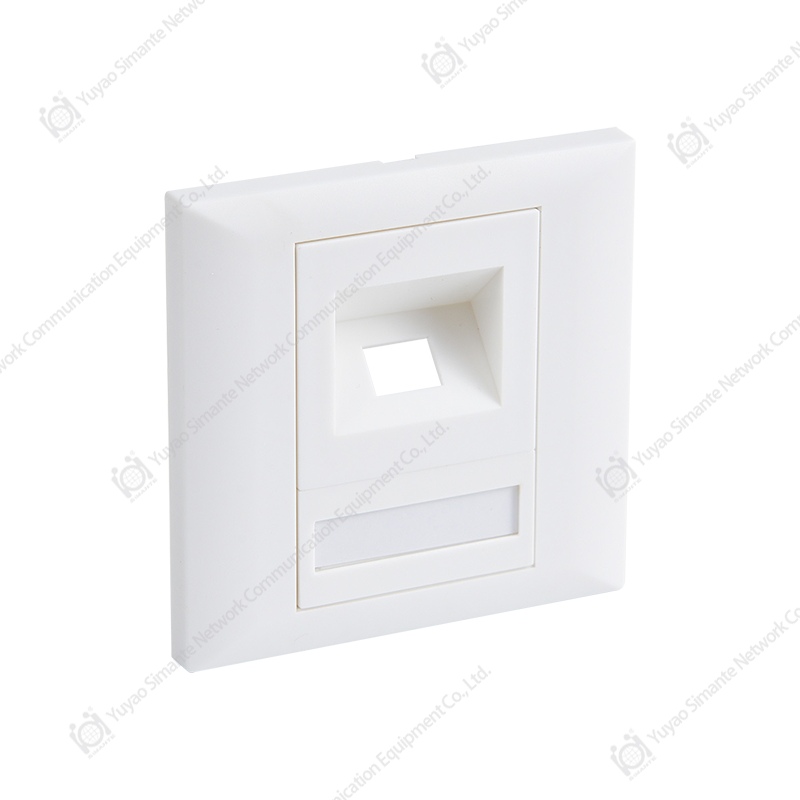

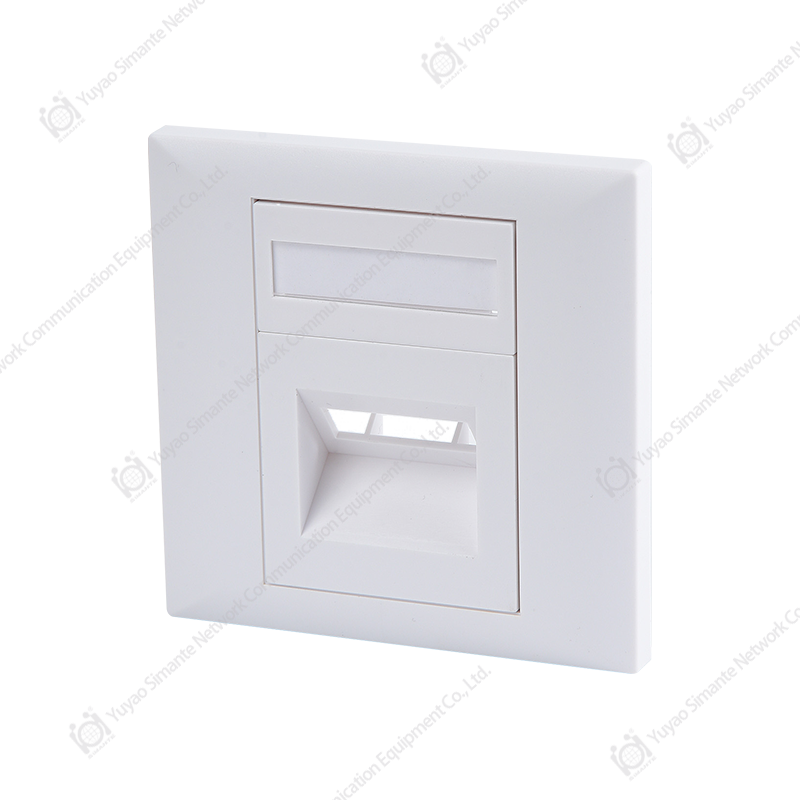

1. Embedded face frame, no screws are visible on the surface, easy to install and disassemble.
2. Larger front identification space, convenient for port identification, equipped with detachable nameplate, convenient for port management.
3. Environmental requirements: meet ROHS standards.
4. Using high-quality ABS engineering plastics, anti-collision, impact resistance, not easy to deform.
5. Environmental performance: temperature: -25～+70℃
6. Outline drawing and maximum size customized
7. Packaging and storage: The product is put into a special blister bag, and then put into a cardboard box, and the product accessories are placed at the same time, and a label indicating the product model and quantity is pasted on the upper left corner of the front of the carton , and put it in the carton. The packaged products should be stored in a warehouse where the ambient temperature is -5℃~+30℃, the relative humidity is not more than 70%, and there is no acid, alkali and other corrosive gases in the surrounding air, and the storage period is three years.
Regular packing quantity: 10 boxes per box, 20 per box, 200 per box.
8. Note: Product use mark: customer specified packaging
Fiber Optic Patch Panel

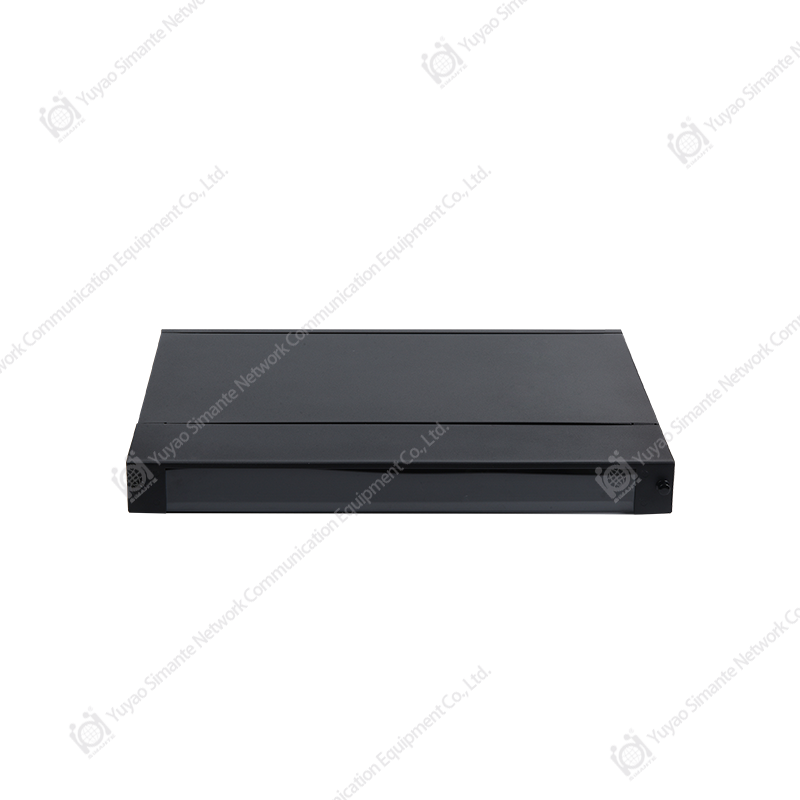

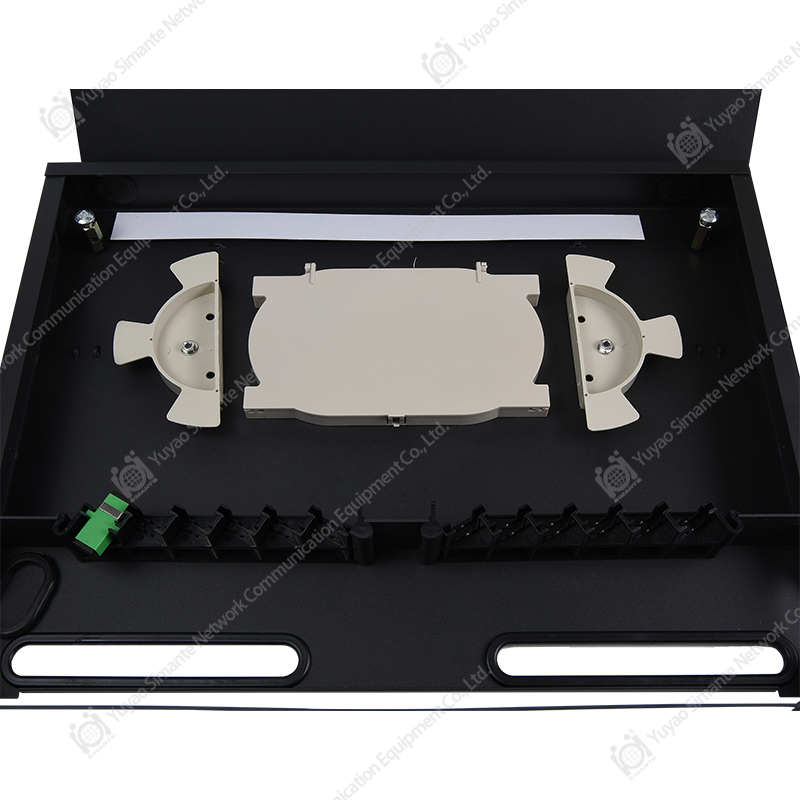

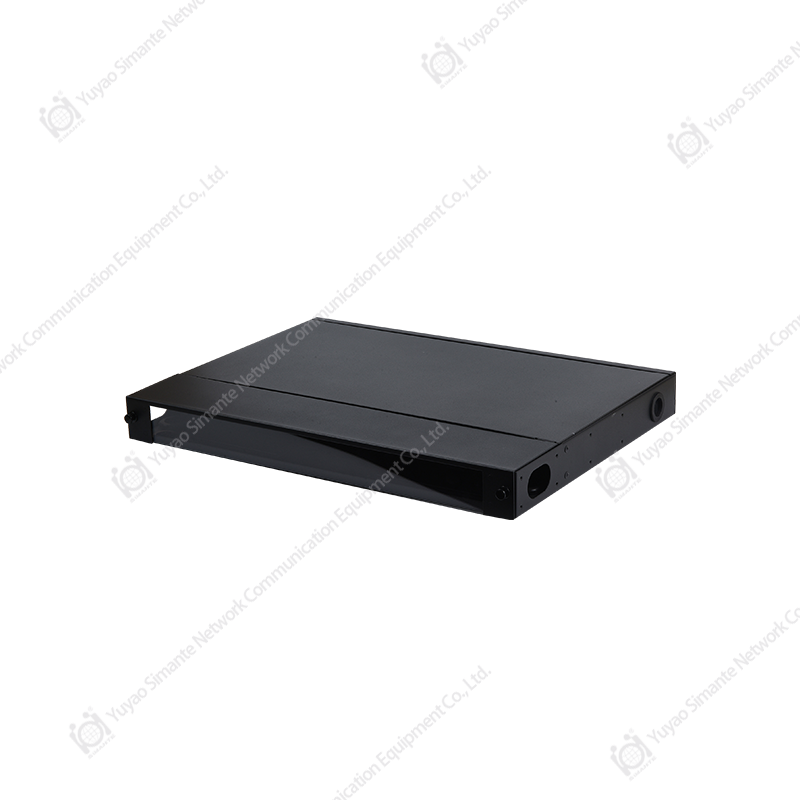

1.19" rack mount standard, sturdy, easy-to-install design, greatly improving work efficiency; compatible with 19" equipment racks, cabinets and wall mounts.
2. Environmental requirements: meet ROHS standards.
3. Material introduction: This patch panel product is used to connect the horizontal wiring and work area wiring on the same floor of the building, and is mainly used for wiring equipment and terminal equipment or adapter conversion connection. Product mating and mating cables are copper-axle twisted pair cables and copper-axle jumpers.
4. Inter-matching relationship: use with connectors of the same standard series
5. Applicable standard: General specification: YD/T 926.1-2009
Sub-standard: YD/T 926.3-2009
6. Technical parameters:
Electrical Characteristics:
A. Frequency range: 1～250MHz
B. Working voltage: 125 V
C. Withstand voltage: DC1000V (AC750V) 1min without breakdown and arcing phenomenon
D. Near-end crosstalk attenuation: ≥6dB
E. Insulation resistance: initial value ≥100MΩ, after constant damp heat test ≥100MΩ
Mechanical properties:
A. Insertion force and pull-out force: the insertion force is not more than 20N, and the pull-out force is not less than 20N
B. Effect of connector connection device: 50N 60±5s
C. IDC terminal is clamped to 23~26AWG twisted pair
Durability:
A. The number of times the plug and socket are inserted: 750 times
B. Number of wire terminations: 250 times
7.Material and surface treatment:
A. Metal material:
Bracket: cold rolled steel sprayed with plastic
Gold Needle: Phosphor Bronze Gold Plated
IDC card wire terminal: Phosphor bronze nickel plated
B. Non-metallic materials:
Plastic: PC polycarbonate, PBT
C. Thickness of gold-plated layer: 3~50U gold-plated
D. PCB material: FR4
8. Environmental performance: Temperature: -5～+40℃ Humidity: ≤85% (temperature 85℃±3℃)
Salt spray test:
A. The pH value of the salt solution before atomization is between 6.5 and 7.2 (35±2℃);
B. The salt solution is prepared with sodium chloride (chemically pure, analytically pure) and distilled or deionized water.
Its concentration is (5±0.1)% (mass percentage);
C. Continuous atomization is adopted, and the recommended duration is 48h;
D. When atomizing, it is necessary to prevent impurities such as oil and dust and the temperature and humidity of the jet air from affecting the work.
conditions for the space.
9. Outline drawing and maximum siz customized.
10. Packaging and storage: The product is put into a special blister bag, and then put into a cardboard box, and product accessories are placed at the same time, and a label indicating the product model and quantity is affixed on the upper left corner of the front of the carton , and put it in the carton. The packaged products should be stored in a warehouse where the ambient temperature is -5℃~+30℃, the relative humidity is not more than 70%, and there is no acid, alkali and other corrosive gases in the surrounding air, and the storage period is three years.
Regular packing quantity: 10 boxes per box, 1 per box, 10 per box.
11. Note: Product use mark: customer specified packaging.
