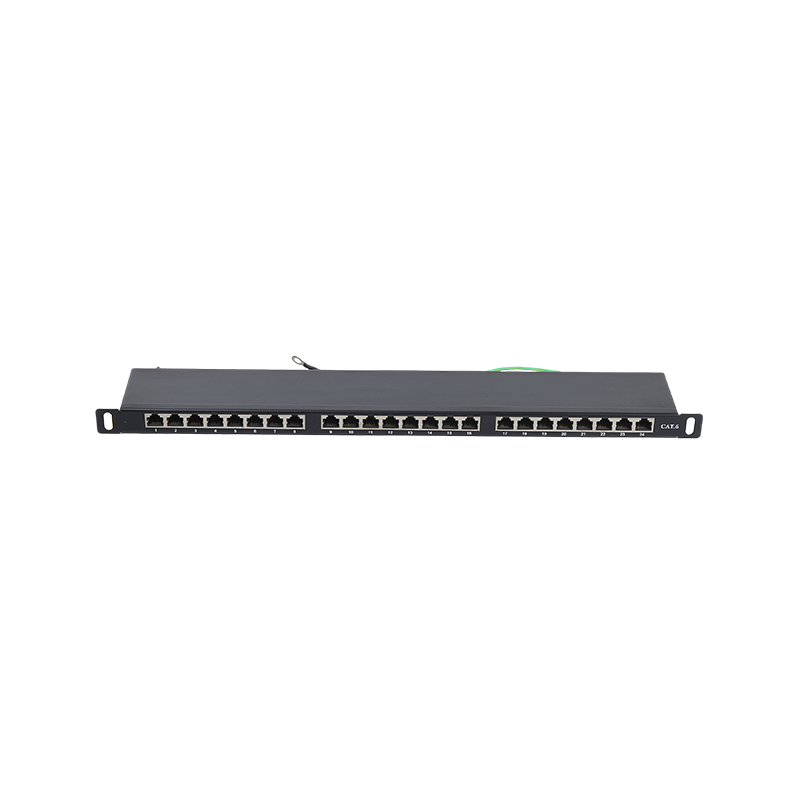

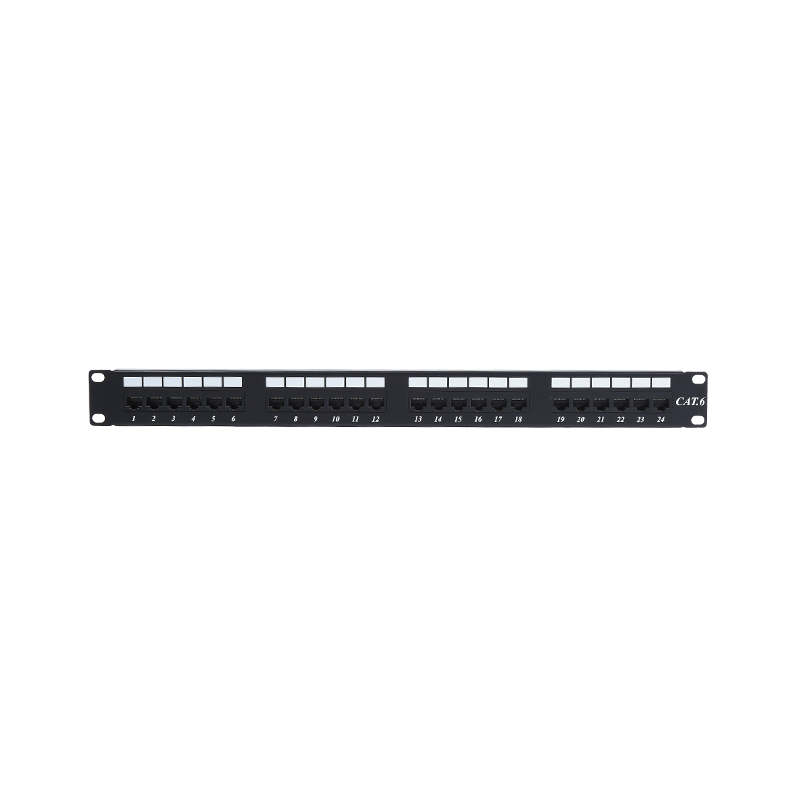

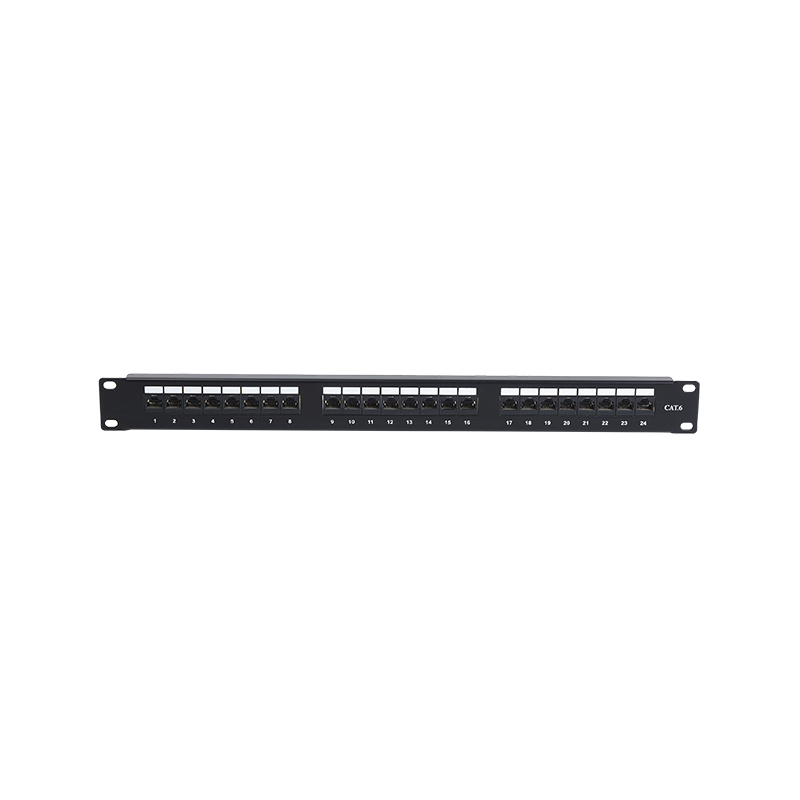

Custom CAT6 Patch Panel

Home / Products / Copper System / Patch Panel / CAT6 Patch Panel

PRODUCTS

DETAILS

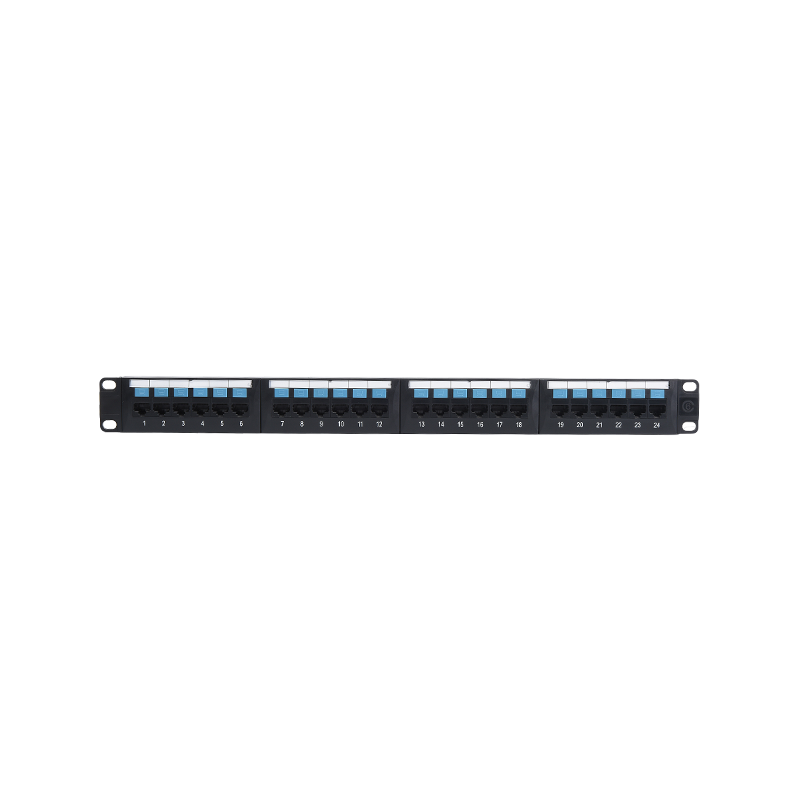

CAT6 Patch Panel Manufacturers

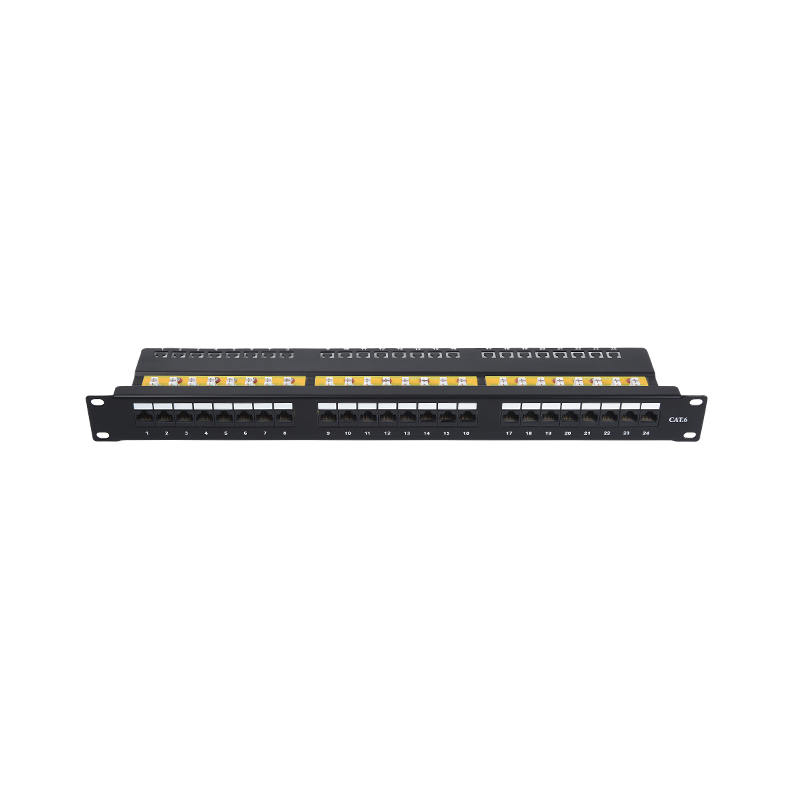

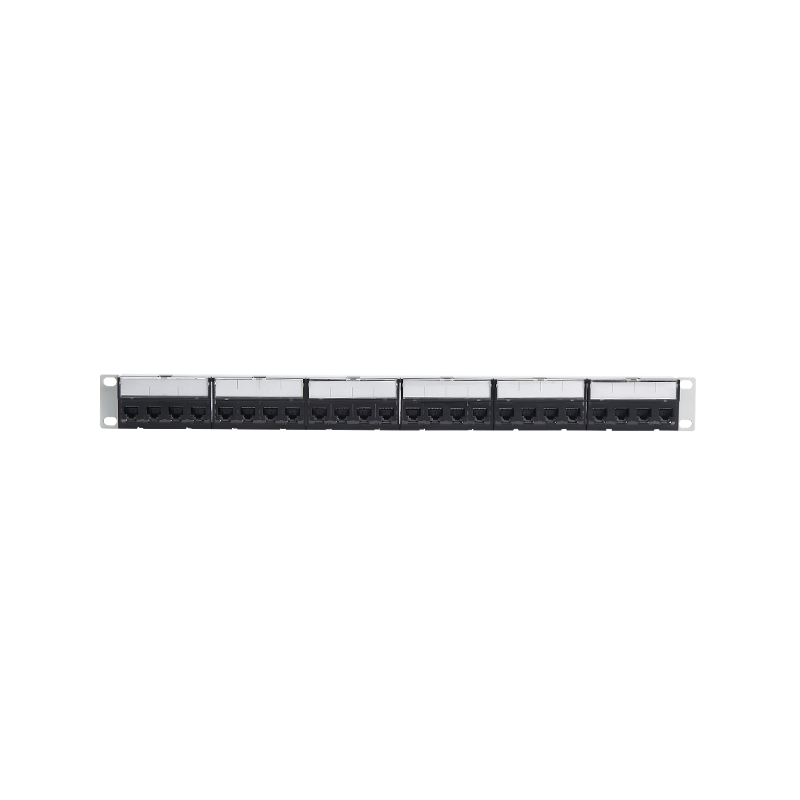

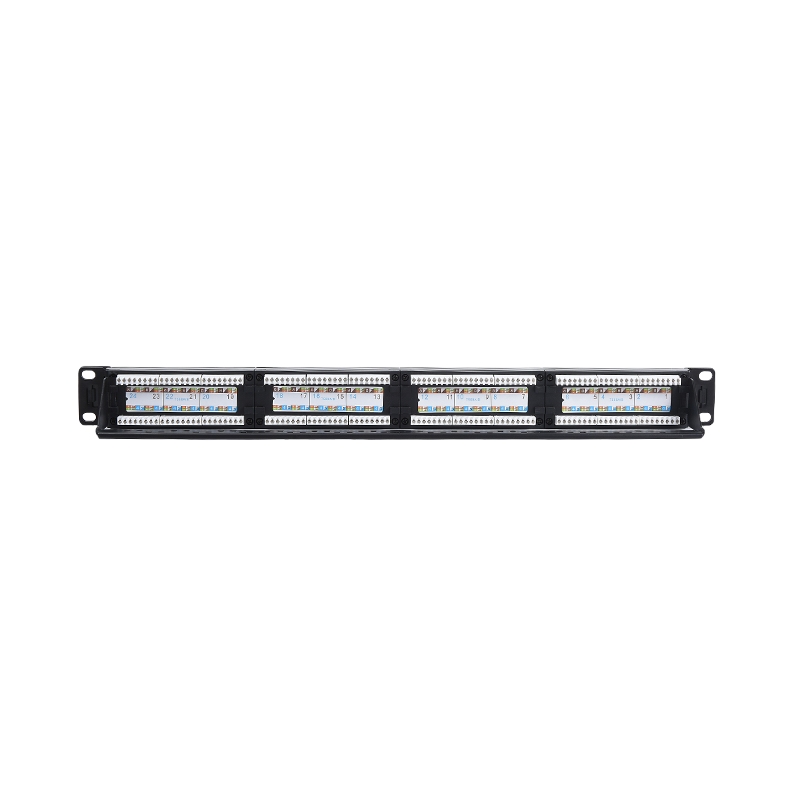

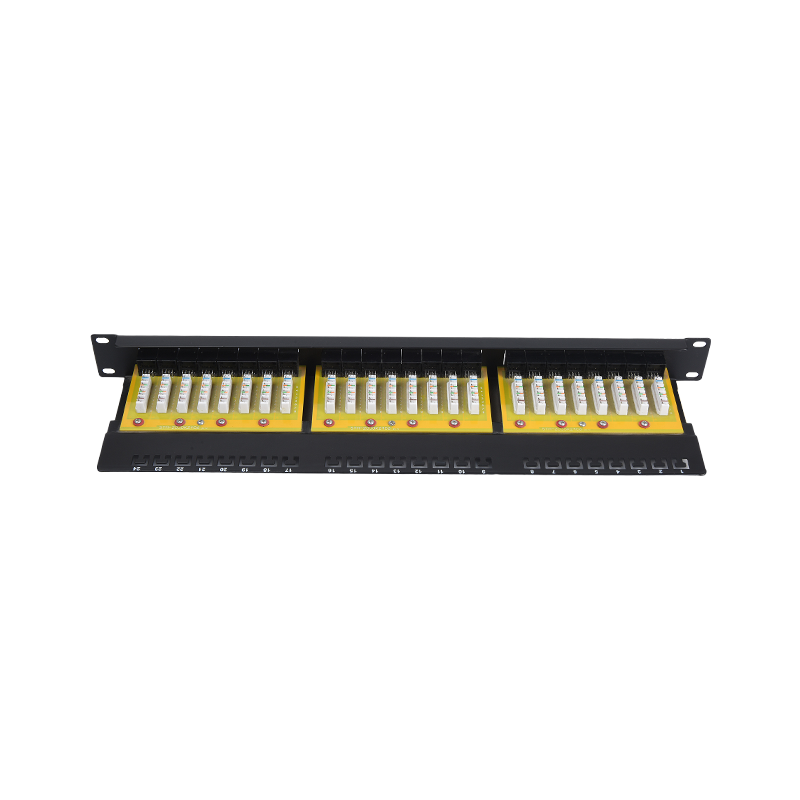

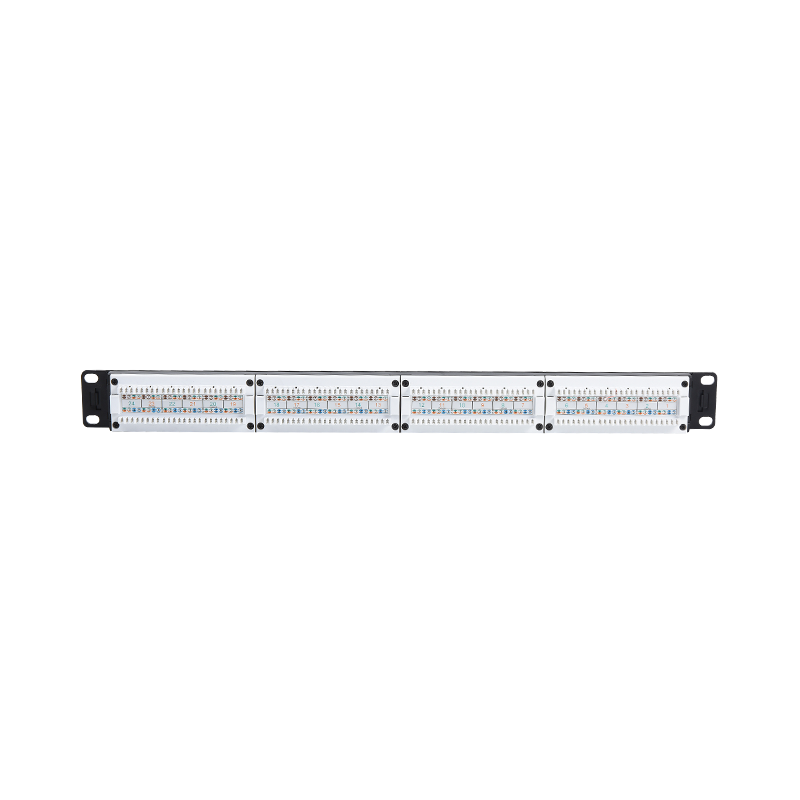

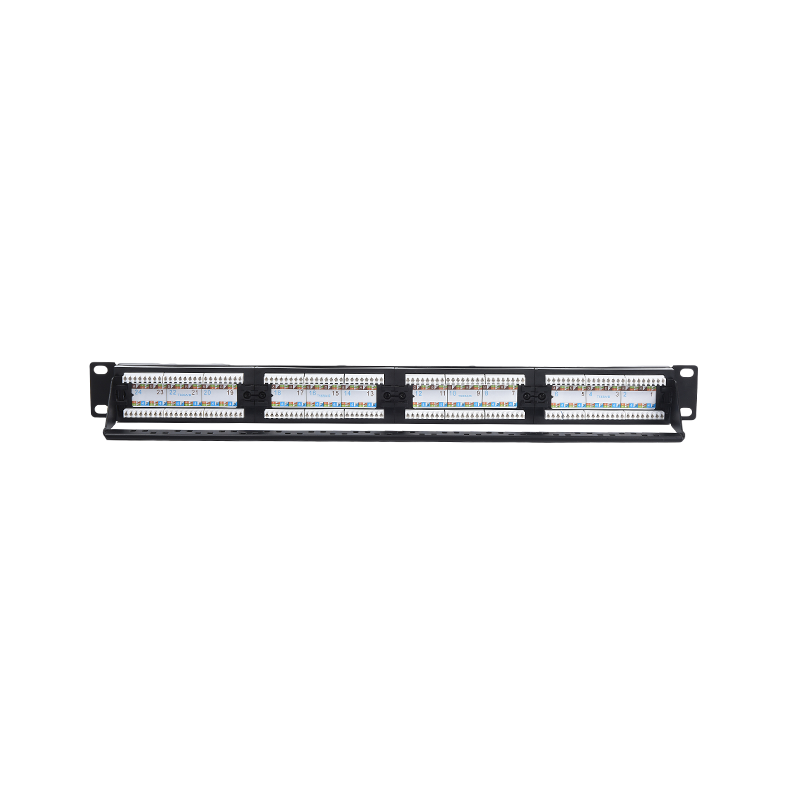

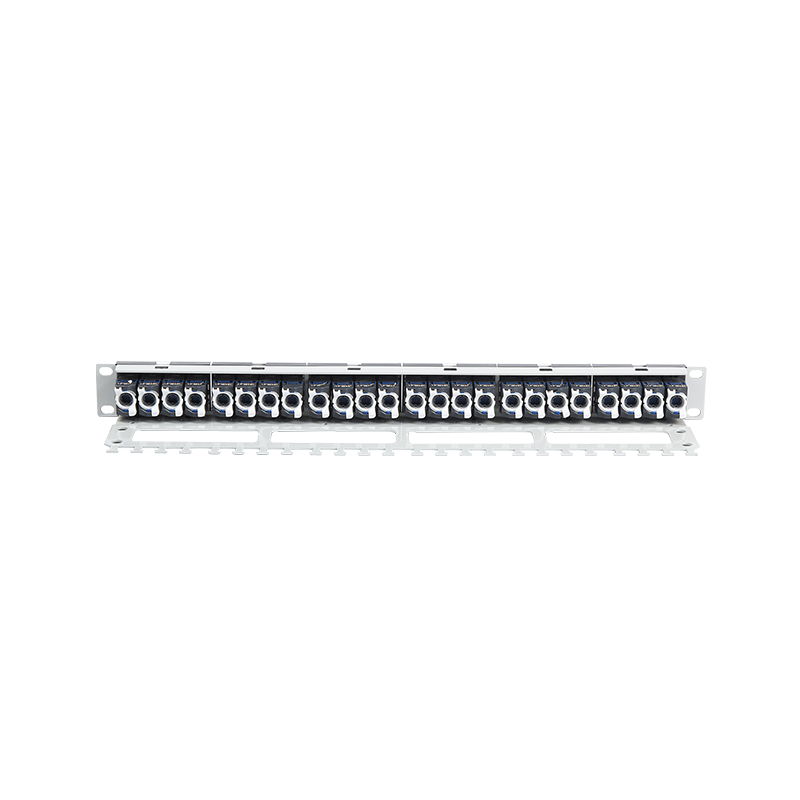

A CAT6 patch panel is a device used to organize and manage network cables in a structured cabling system. It typically includes a series of ports, each of which can be connected to a network cable, allowing cables to be easily plugged and unplugged as needed. The "CAT6" designation refers to the category of the cable that the panel is designed to support, in this case Category 6. This type of cable is capable of supporting gigabit Ethernet speeds and is capable of operating at frequencies up to 250 MHz and can handle higher bandwidth applications up to 10 Gbps. It is more reliable and provides more headroom for future network expansion than CAT5E or CAT6A.
1.19" rack mount standard, sturdy, easy-to-install design, greatly improving work efficiency; compatible with 19" equipment racks, cabinets and wall mounts.

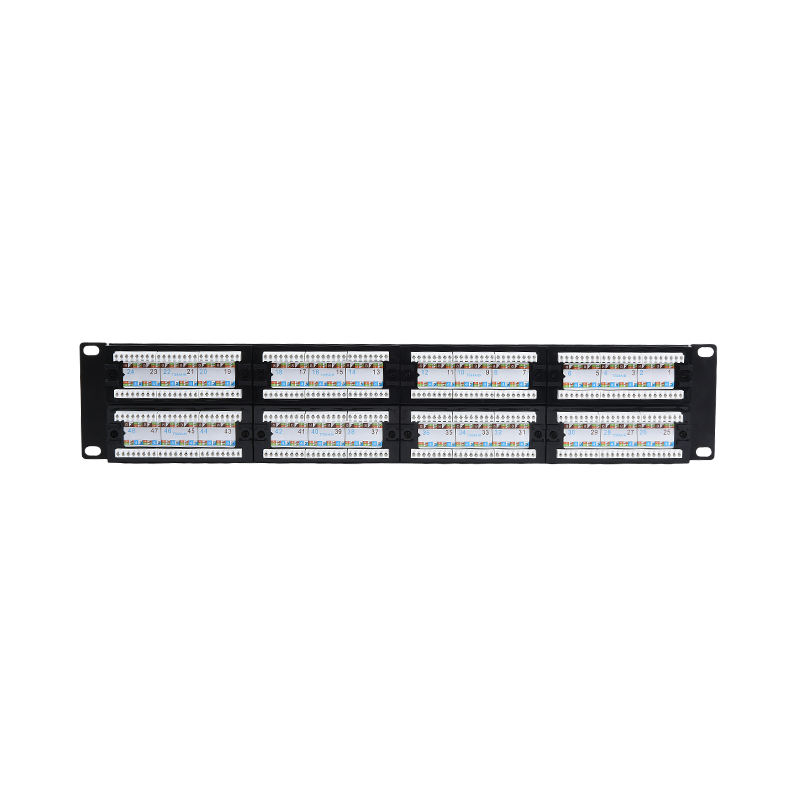

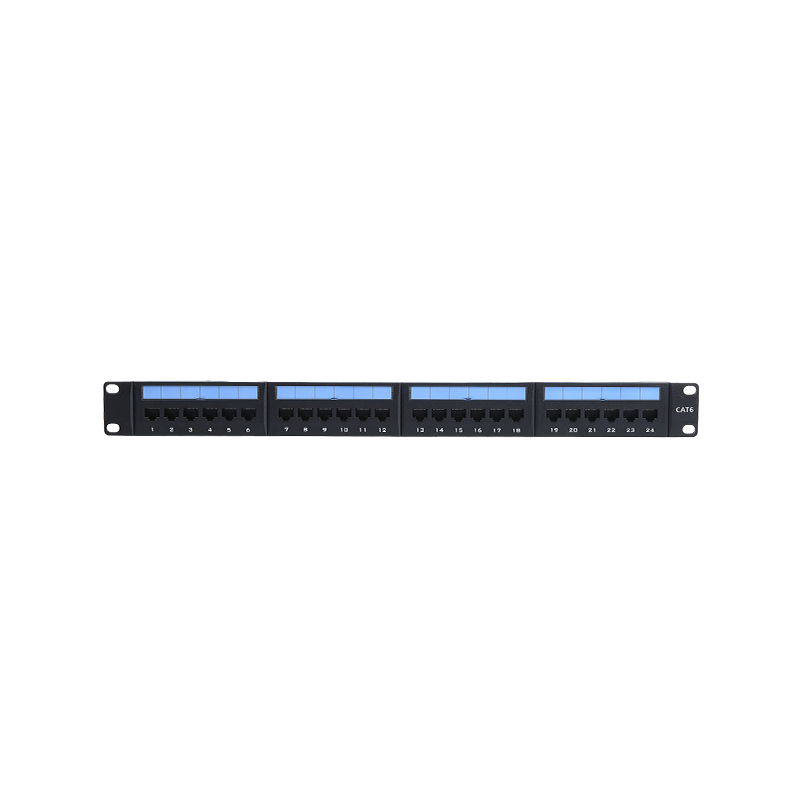

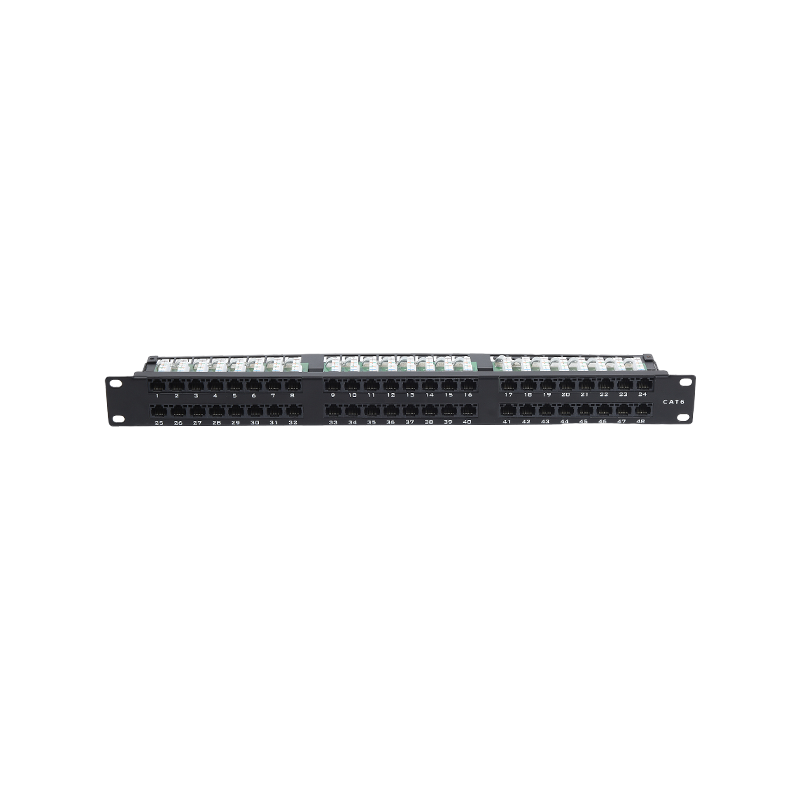

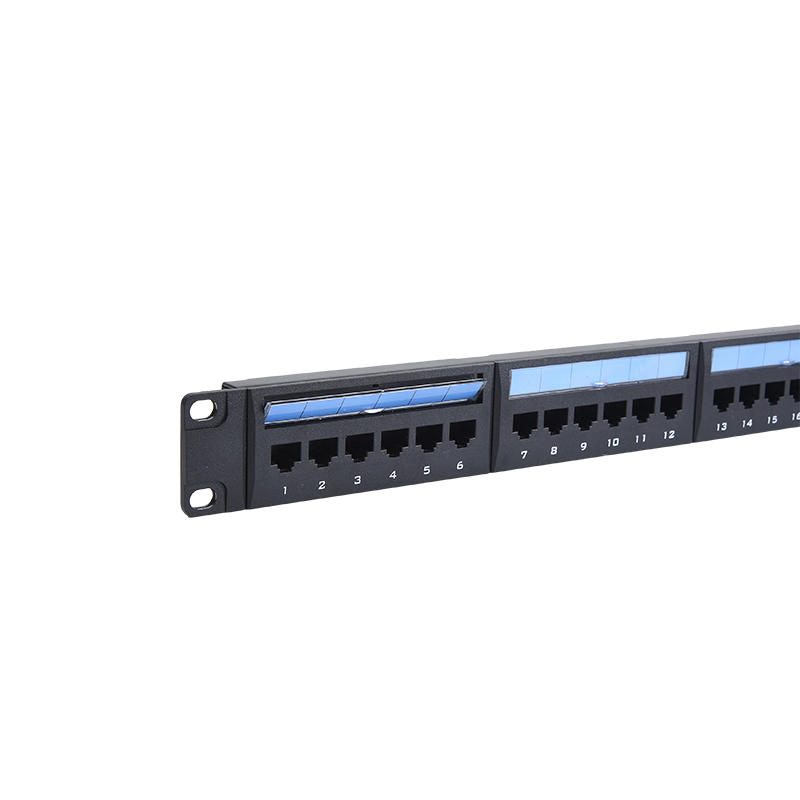

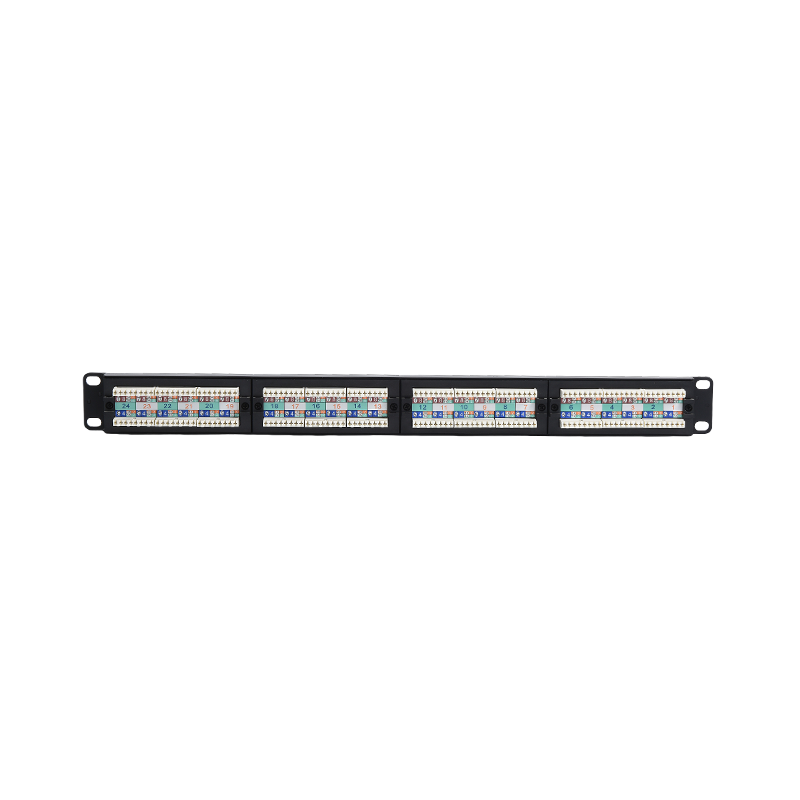

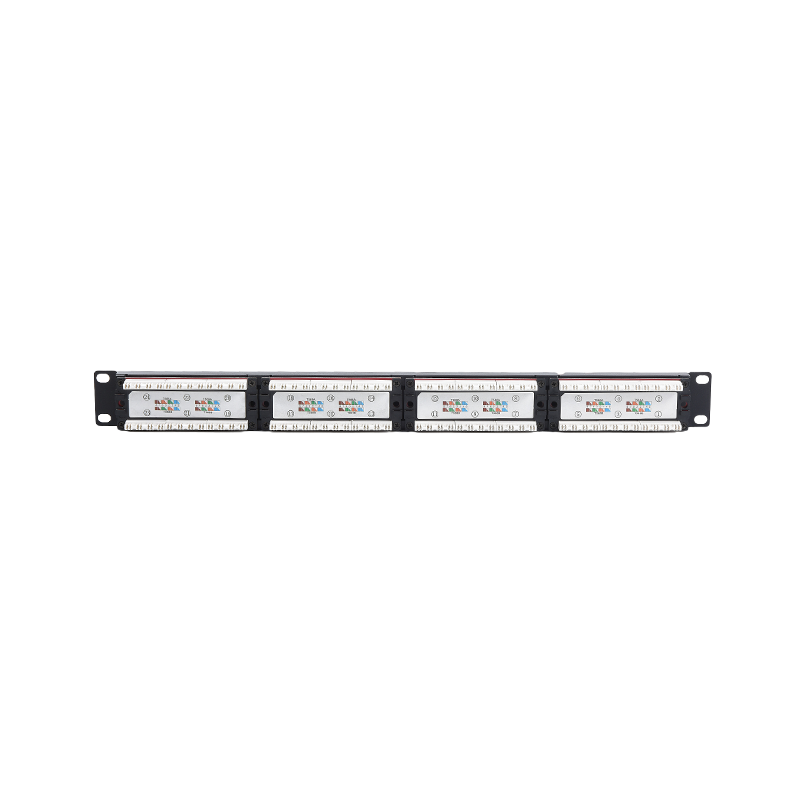

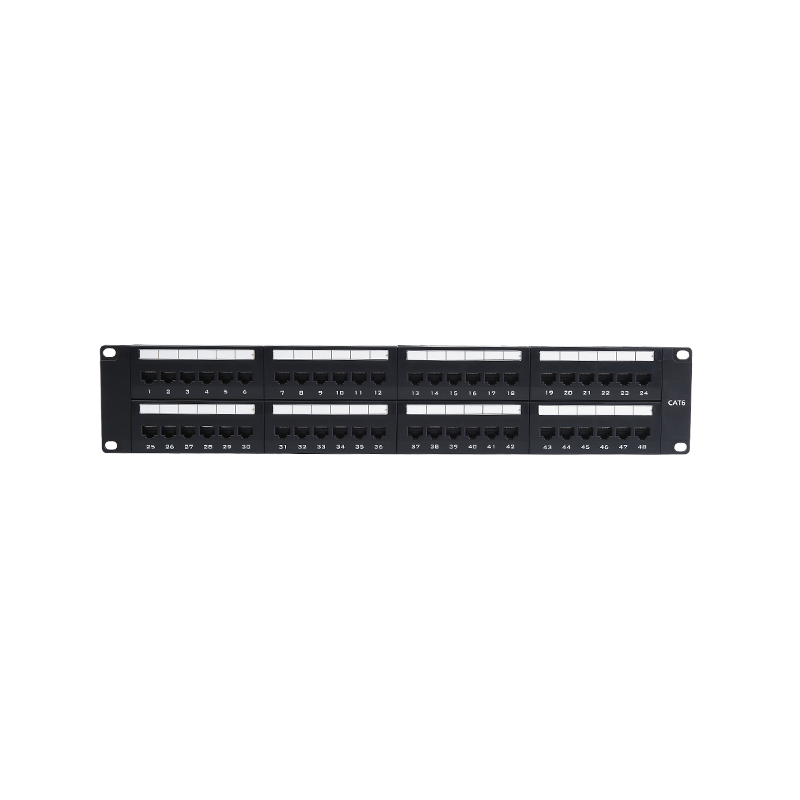

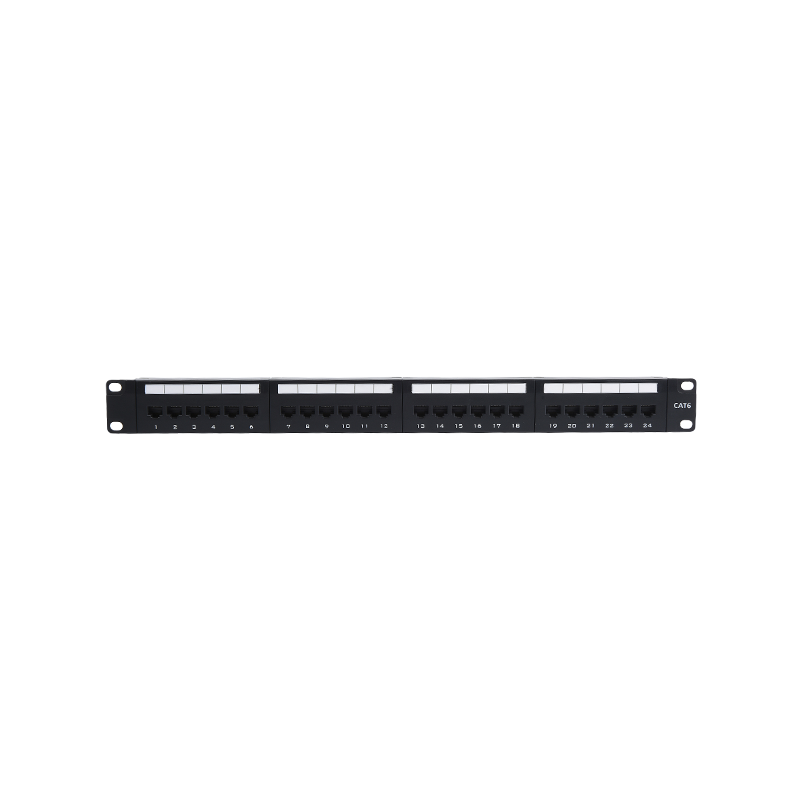

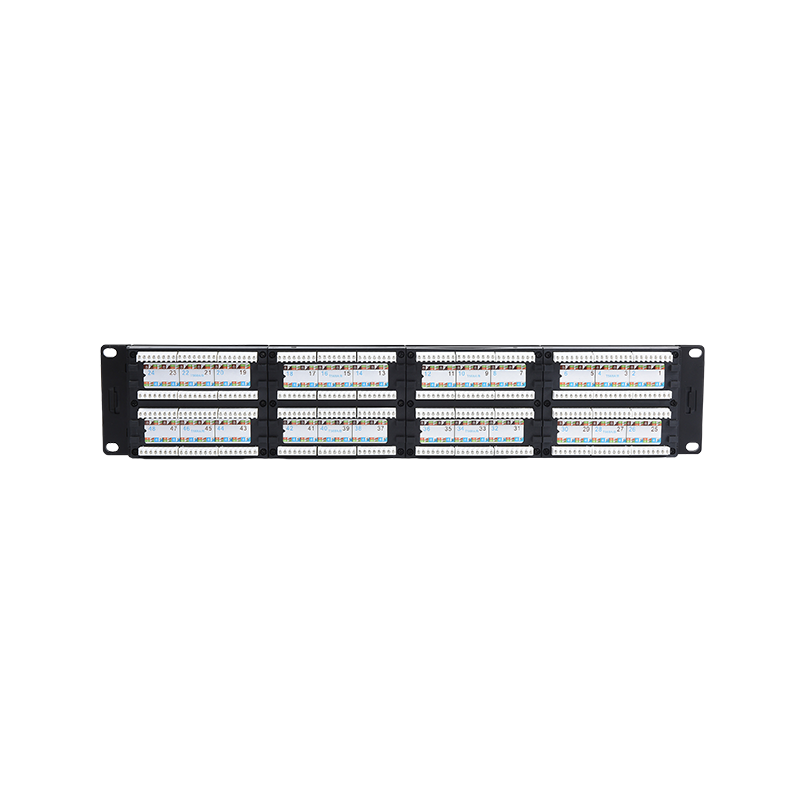

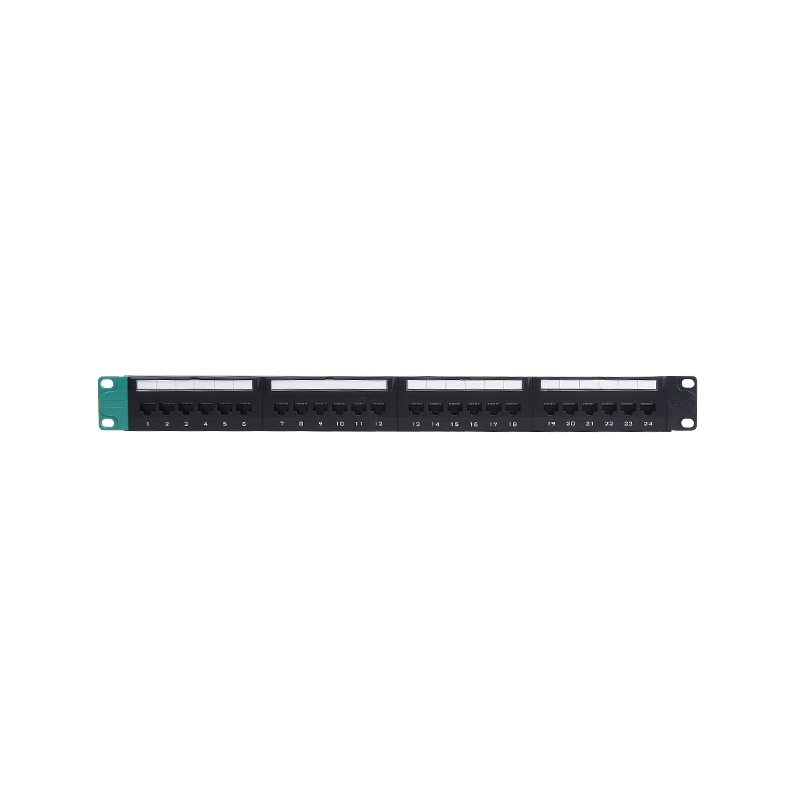

2. 0.5U, 1U, 2U optional. 24 ports and 48 ports have labels on the front, and the large label on the front is convenient for customer's port identification; there is a cable manager on the back, which can effectively guide the cable to the termination point.
3. Connection method: RJ45 jack with jumper, IDC terminated with horizontal wiring. The contact pin contact adopts high and low dislocation technology, which effectively reduces the near-end crosstalk value.
4. Environmental requirements: meet ROHS standards.
5. Material introduction: This patch panel product is used to connect the horizontal wiring and working area wiring on the same floor of the building, and is mainly used for the conversion connection of wiring equipment and terminal equipment or adapters. Product mating and mating cables are copper-axle twisted pair cables and copper-axle jumpers.
6. Inter-matching relationship: use with connectors of the same standard series
7. Applicable standard: General specification: YD/T 926.1-2009
Sub-standard: YD/T 926.3-2009
8. Technical parameters:
Electrical Characteristics:
A. Frequency range: 1～250MHz
B. Working voltage: 125 V
C. Withstand voltage: DC1000V (AC750V) 1min without breakdown and arcing phenomenon
D. Near-end crosstalk attenuation NEXT: ≥4dB
E. Insulation resistance: initial value ≥ 100MΩ
      After constant damp heat test ≥100MΩ
Mechanical properties:
A. Insertion force and pull-out force: the insertion force is not more than 20N, and the pull-out force is not less than 20N
B. Effect of connector connection device: 50N 60±5s
C. IDC terminal is clamped to 23~26AWG twisted pair
Durability:
A. The number of times the plug and socket are inserted: 750 times
B. Number of wire terminations: 250 times
9. Material and surface treatment:
A. Metal material:
Bracket: cold rolled steel sprayed with plastic
Gold Needle: Phosphor Bronze Gold Plated
IDC card wire terminal: Phosphor bronze nickel plated
B. Non-metallic materials:
Plastic: PC polycarbonate, ABS
C. Thickness of gold-plated layer: 6~50U gold-plated
D. PCB material: FR4
10. Environmental performance: Temperature: -25～+70℃ Humidity: ≤85% (temperature 85℃±3℃)
Salt spray test:
A. The pH value of the salt solution before atomization is between 6.5 and 7.2 (35±2℃);
B. The salt solution is prepared with sodium chloride (chemically pure, analytically pure) and distilled or deionized water.
Its concentration is (5±0.1)% (mass percentage);
C. Continuous atomization is adopted, and the recommended duration is 48h;
D. When atomizing, it is necessary to prevent impurities such as oil and dust and the temperature and humidity of the jet air from affecting the work.
conditions for the space.

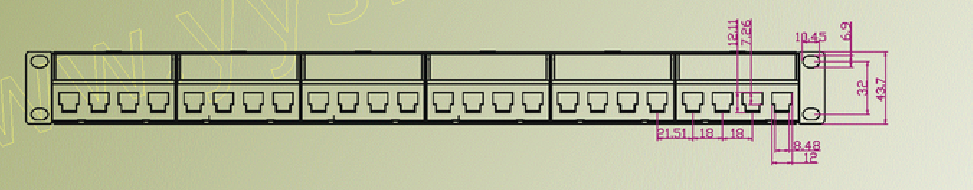

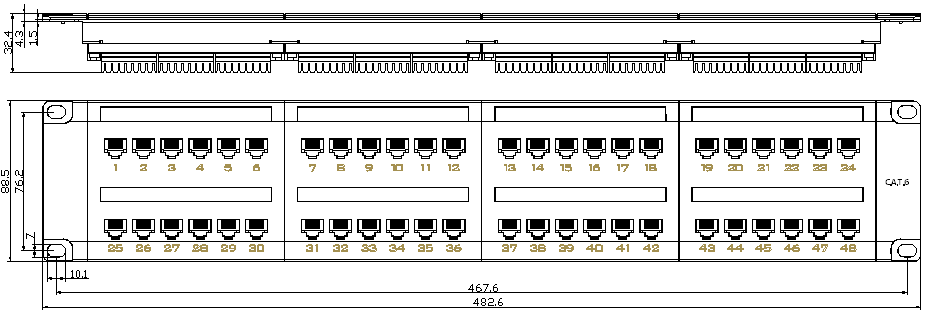

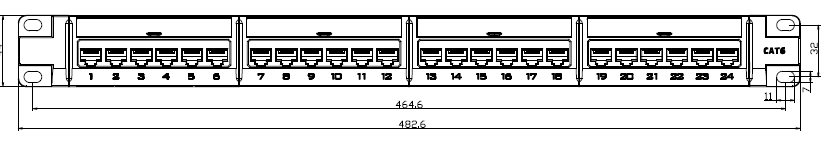

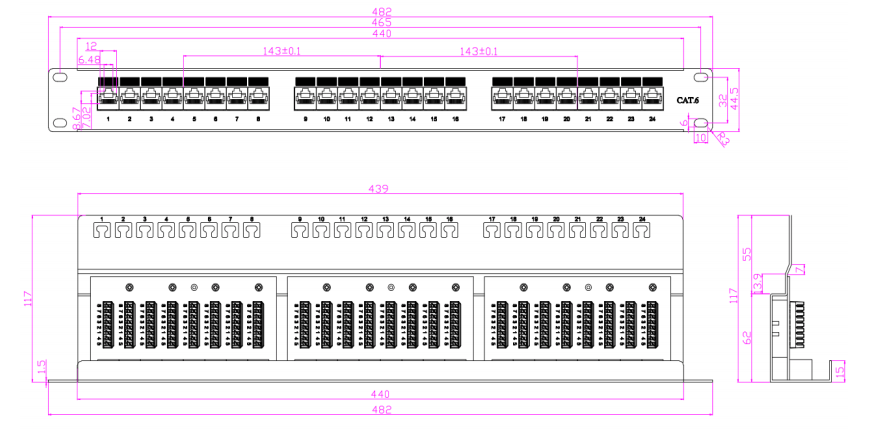

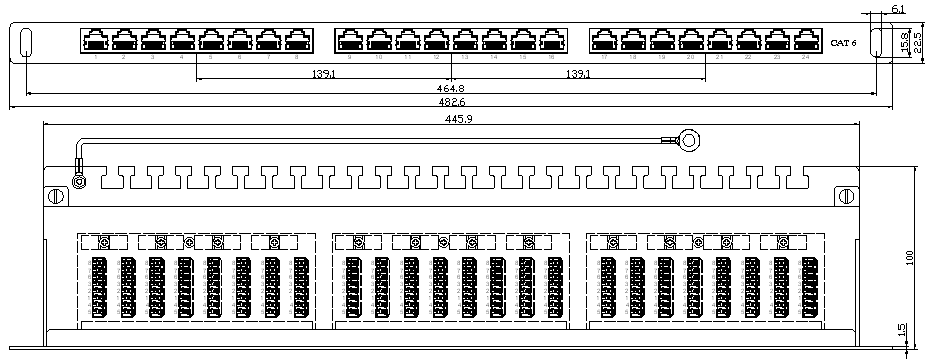

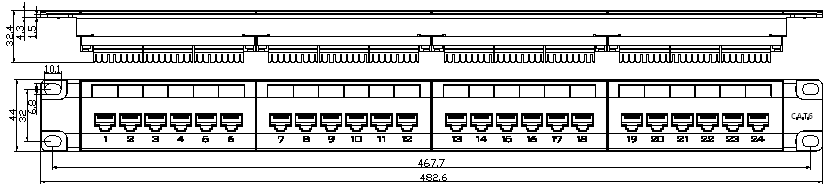

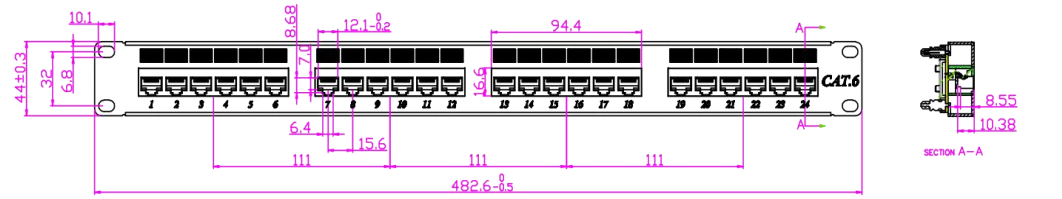

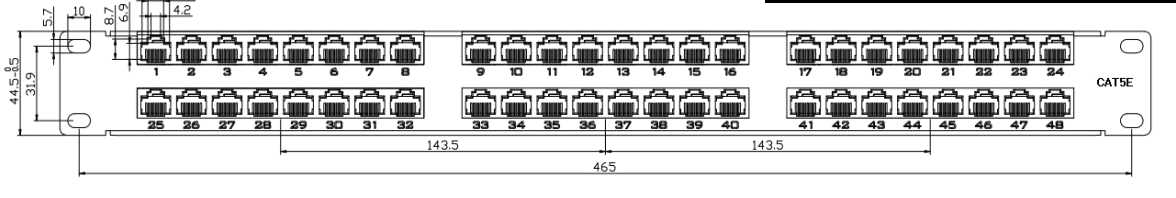

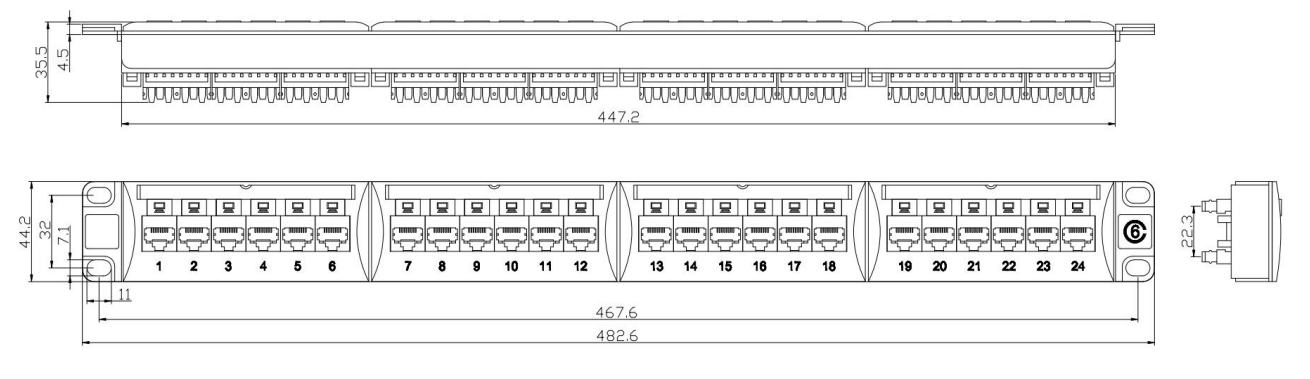

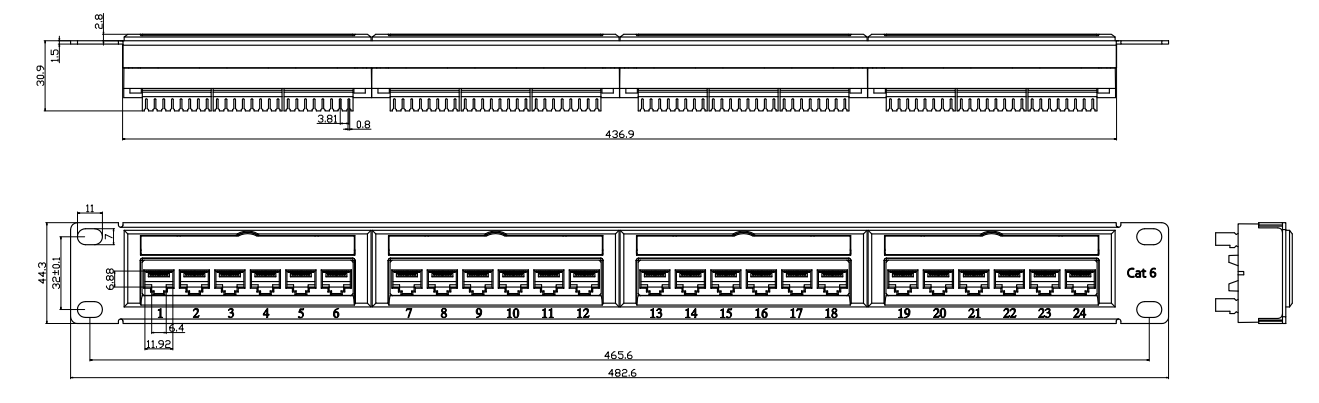

11. Outline drawing and maximum size customized
12. Packaging and storage: The product is put into a special blister bag, and then put into a cardboard box, and the product accessories are placed at the same time, and a label indicating the product model and quantity is affixed on the upper left corner of the front of the carton , and put it in the carton. The packaged products should be stored in a warehouse where the ambient temperature is -5℃~+30℃, the relative humidity is not more than 70%, and there is no acid, alkali and other corrosive gases in the surrounding air, and the storage period is three years.
Regular packing quantity: 10 boxes per box, 1 per box, 10 per box.
13. Note: product use mark: customer specified packaging.
Since 2005

Yuyao Simante Network Communication Equipment Co., Ltd.

Yuyao Simante Network Communication Equipment Co., Ltd. is professional CAT6 Patch Panel manufacturers and suppliers in China, we offer complete network cabling solutions and optical fiber products integrating design, development, sales and service. The factory has 10 regular and customization production lines, fully automatic injection molding machine 10 sets, semi-automatic injection molding machine 20 units, all kinds of automatic installed machine 8 units, maintaining the stable annual output of more than 9 million. So we can custom made 24 48 Port UTP CAT6 Patch Panels. Type: Shielded, Legrand etc..

We specialize in network cabling solutions and optical fiber products integrating design, development, sales and service.

Based on the mature research and development system, the quality stability of Simante has been guaranteed at the design source. We have more than 10 engineers and over 30 full-time technical persons who continue to provide their professional value in the position, improving quality and promoting product update. Simante provides specialized integrated solutions for customers to ensure it meets the customer's requirement. We have advanced UTP CAT6 Patch Panel factory. Welcome to visit.

17+ Industry Experience

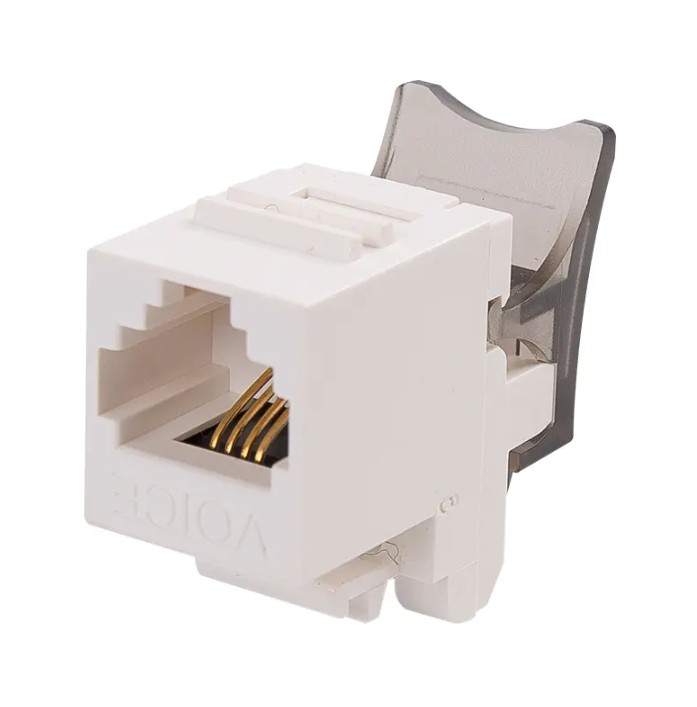

Our main products include keystone jacks,patch panels, wall face plates, data sockets, etc., and are widely used in structured cabling, network communication, smart home and automation equipment, and other fields. The factory has 10 regular and customization production lines, fully automatic injection molding machine 10 sets, semi-automatic injection molding machine 20 units, all kinds of automatic installed machine 8 units, maintaining the stable annual output of more than 9 million.

It is precisely because we are based on the high-end market that Simante has higher requirements for product quality. Not only strictly manage the production, but also meet customers' comprehensive testing requirements for products through good performance testing. As fast growing CAT6 Patch Panel supliers in China, We maintain stable export volume in Europe, Australia, Africa, the Middle East and Southeast Asia, and also undertake OEM and ODM projects.

Simante, help you create value together!

Certificate Display

We have a number of national patents, we have also passed the ISO9001 quality management system certification, and all our products meet the standards.

  • EMC
  • LVD
  • TUV
  • ROHS
  • ISO
  • REACH

News

Our major events and exhibition information.

Does ring cable manager support centralized management of multi-device cables? In the modern office environment, centralized management of multiple device cables has become a key ...
Shielded Male Connector’s shielding effect and mechanism to reduce electromagnetic interference In modern electronic equipment and communication systems, electromagnetic interference (EMI) is a pr...
In which network environments are Port Shielded Blank Patch Panels widely used? Port Shielded Blank Patch Panel, that is, port shielded blank patch panel, is an indispensable part ...
Does Australia Faceplate Single Port support multiple types of cables or adapters? Australia Faceplate Single Port, as a common panel port, is widely used in the Australian market and...
Advantages of Dust-proof Brush Cable Organizer over traditional cable organizers In daily life and work, the organization and management of cables has always been a headache. Althou...
How is the Shielded CAT6A Inline Coupler compatible with other types of network connectors? In the field of network communications, network connectors are one of the key components in building...
Single Port Surface Box: How to install and use it effectively to improve the efficiency of home decoration? In modern home decoration, Single Port Surface Box is popular for its simple design and practical fu...
What is the key role of Male Connector in electronic devices? Among many electronic devices, what role does Male Connector play? This article will delve into the ...
What are the characteristics and applicable scenarios of CAT3 Keystone Jack? In network cabling, CAT3 Keystone Jack is a common connector, but what unique characteristics does i...
RingCable Manager: Maintain a neat and organized cable layout In modern networking and data center environments, a neat and organized cable layout is critical to ...
Toolless Shielded Male Connector’s electromagnetic interference suppression mechanism In network cabling, electromagnetic interference can adversely affect data transmission and network ...
Two Ports Beveled Frame 45°UK Type Faceplate’s special role in network cabling In modern network cabling, choosing the right panel is crucial, and Two Ports Beveled Frame 45°UK Ty...

INDUSTRY KNOWLEDGE EXTENSION

The design and application of a CAT6 patch panel are specifically tailored to accommodate the higher performance capabilities of CAT6 Ethernet cables. Here's an overview of the design and application of CAT6 patch panels:
    Port Configuration: CAT6 patch panels come in various port configurations, typically ranging from 12 ports to 48 ports or more. The ports are designed to accommodate RJ45 connectors used for CAT6 Ethernet cables. The number of ports depends on the specific needs of the network installation.
    Termination Style: CAT6 patch panels utilize punch-down termination, similar to other patch panels. They feature IDC (Insulation Displacement Connector) terminals, such as 110 or Krone style, to securely terminate individual cable conductors. The punch-down termination process ensures a reliable and consistent connection, minimizing the risk of signal loss or interference.
    Enhanced Performance: CAT6 patch panels are designed to support the higher performance and data transmission speeds of CAT6 cables. They are engineered to reduce crosstalk and interference, providing improved signal integrity and allowing for Gigabit Ethernet (1000BASE-T) and potentially even 10-Gigabit Ethernet (10GBASE-T) over shorter distances.
    Wiring Scheme: CAT6 patch panels support both T568A and T568B wiring schemes, which are the industry-standard configurations for Ethernet connections. The panels are typically labeled with color-coding or markings indicating the corresponding wiring scheme, making it easier to follow the correct wiring pattern during installation or troubleshooting.
    Cable Management: CAT6 patch panels often include cable management features to organize and secure network cables. These features can include cable management bars, cable ties, or loops that allow for proper routing and strain relief. Effective cable management ensures a neat and organized appearance, as well as better airflow and accessibility within the network cabinet or rack.
    Labeling and Identification: CAT6 patch panels have labeling options to identify and document each port connection. The panels may include pre-printed labels or blank label fields where administrators can mark or print the corresponding port numbers, device names, or other relevant information. Proper labeling simplifies cable identification, troubleshooting, and maintenance tasks.
    Mounting Options: CAT6 patch panels are designed for easy installation and integration into network cabinets, racks, or wall-mount enclosures. They typically feature standard 19-inch rack-mount dimensions, allowing for seamless integration with other networking equipment. Some panels may also offer options for wall-mount installation, providing flexibility for various installation scenarios.
    Compliance and Certification: Look for CAT6 patch panels that comply with industry standards and certifications, such as those set by the Telecommunications Industry Association/Electronic Industries Association (TIA/EIA) and UL (Underwriters Laboratories). Compliance ensures that the patch panel meets the performance and safety standards required for reliable network connectivity.
CAT6 patch panels are commonly used in networks that require higher data transfer speeds, such as small to medium-sized businesses, data centers, or enterprise environments. They provide a reliable and organized solution for managing network connections, supporting the performance demands of modern network applications.
