Cat6 Keystone Jack Manufacturers

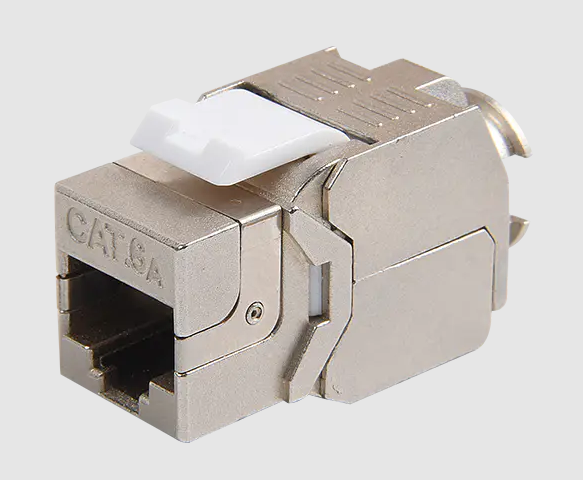

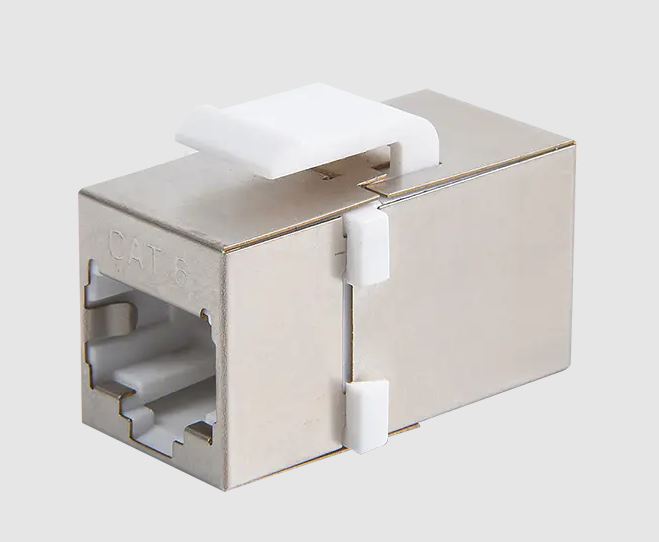

A Cat6 keystone jack is a type of keystone jack that is designed to support the Cat6 standard for Ethernet networking. Cat6 (Category 6) is a standard for cable and connector systems that is capable of faster data transfer and greater bandwidth than previous standards such as Cat5 and Cat5e.
A keystone jack is a small, modular connector that can be used to terminate the end of a cable. The keystone jack is designed to fit into a keystone wall plate or patch panel, which provides a central location for connecting and disconnecting cables. The Cat6 keystone jack typically includes a series of conductive pins that are used to make connections with the wires inside the cable.
Cat6 keystone jacks are designed to support high-speed data transfer and are typically used in data centers, server rooms, and other high-performance networking environments where high-speed data transfer and low crosstalk are critical. They are also used in residential or commercial settings for networking and telecommunications purposes.
The Cat6 keystone jack is backward compatible with Cat5e, Cat5 and Cat3 cables, which makes it suitable for upgrading existing cabling infrastructure.
1. Embedded design, can be used with panels and patch panels, and the network cable can be fixed and connected through the card position.
2. Connection method: RJ45 crystal head 1 to 1 straight-through type. RJ45 jack with jumper, IDC terminated with horizontal wiring. The contact pin contact adopts high and low dislocation technology, which effectively reduces the near-end crosstalk value.
3. 360 degree all-round shielding shell design to prevent EMC electromagnetic interference; all-metal zinc alloy die-casting design, unique grounding design, reliable and convenient performance.
4. Environmental requirements: meet ROHS standards.
5. Material introduction: This module product is used to connect the horizontal wiring and work area wiring on the same floor of the building, and is mainly used for wiring equipment and terminal equipment or adapter conversion connection. Product mating and mating cables are copper-axle twisted pair cables and copper-axle jumpers.
6. Inter-matching relationship: Inter-match with connectors of the same standard series.
7. Applicable standard: General specification: YD/T 926.1-2009
Sub-standard: YD/T 926.3-2009
8. Technical parameters:
Electrical Characteristics:
A. Frequency range: 1～250MHz
B. Working voltage: 125 V
C. Withstand voltage: DC1000V (AC750V) 1min without breakdown and arcing phenomenon
D. Near-end crosstalk attenuation NEXT: ≥3dB
Mechanical properties:
A. Insertion force and pull-out force: the insertion force is not more than 20N, and the pull-out force is not less than 20N
B. Effect of connector connection device: 50N 60±5s
Durability:
A. The number of times the plug and socket are inserted: 750 times
9. Material and surface treatment:
A. Metal material:
Gold Needle: Phosphor Bronze Gold Plated
Housing: Zamak 5, nickel plated
B. Non-metallic materials:
Plastic: PC Polycarbonate S
C. Thickness of gold-plated layer: 6~50U gold-plated
D. PCB material: FR4
10. Environmental performance: Temperature: -25～+70℃ Humidity: ≤85% (temperature 85℃±3℃)
Salt spray test:
A. The pH value of the salt solution before atomization is between 6.5 and 7.2 (35±2℃);
B. The salt solution is prepared with sodium chloride (chemically pure, analytically pure) and distilled or deionized water.
Its concentration is (5±0.1)% (mass percentage);
C. Continuous atomization is adopted, and the recommended duration is 48h;
D. When atomizing, it is necessary to prevent impurities such as oil and dust and the temperature and humidity of the jet air from affecting the work.
conditions for the space.
11. Outline drawing and maximum size customized
12. Packaging and storage: The product is put into a special blister bag, and then put into a cardboard box, and the product accessories are placed at the same time, and a label indicating the product model and quantity is affixed on the upper left corner of the front of the carton , and put it in the carton. The packaged products should be stored in a warehouse where the ambient temperature is -5℃~+30℃, the relative humidity is not more than 70%, and there is no acid, alkali and other corrosive gases in the surrounding air, and the storage period is three years.
Regular packing quantity: 10 boxes per carton, 50 pcs per box, 500 pcs per carton.
13. Note: product use mark: customer specified packaging.
Since 2005

Yuyao Simante Network Communication Equipment Co., Ltd.

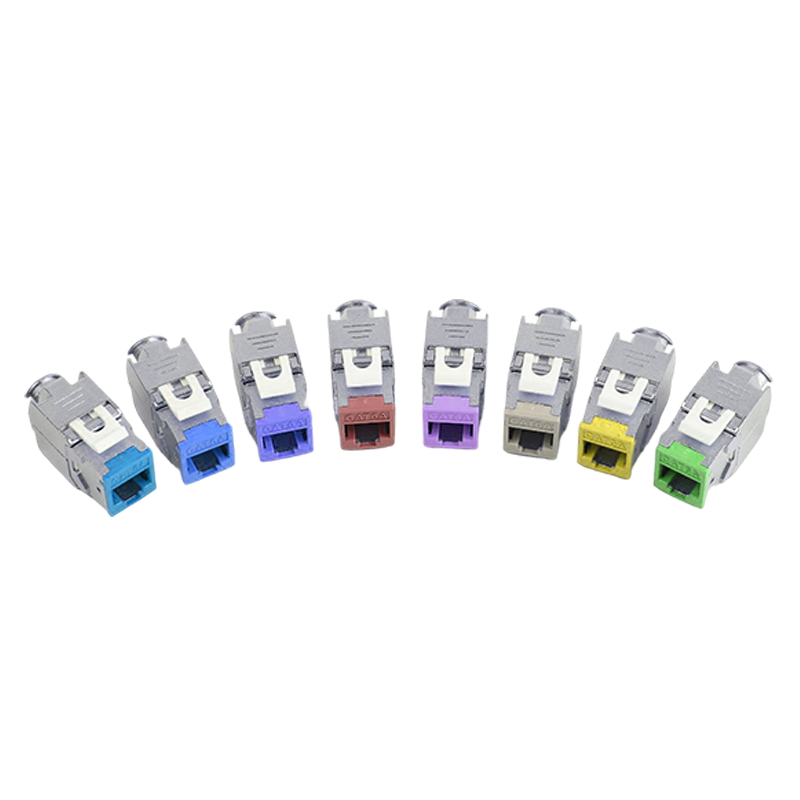

Yuyao Simante Network Communication Equipment Co., Ltd. is professional Cat6 Keystone Jack manufacturers and suppliers in China, we offer complete network cabling solutions and optical fiber products integrating design, development, sales and service. The factory has 10 regular and customization production lines, fully automatic injection molding machine 10 sets, semi-automatic injection molding machine 20 units, all kinds of automatic installed machine 8 units, maintaining the stable annual output of more than 9 million. So we can custom made cat6 rj45 keystone jack. Keystone jack Cat6 Type: FTP Shielded, Toolless Keystone Jack, Rotary Type, Slim Type..

We specialize in network cabling solutions and optical fiber products integrating design, development, sales and service.

Based on the mature research and development system, the quality stability of Simante has been guaranteed at the design source. We have more than 10 engineers and over 30 full-time technical persons who continue to provide their professional value in the position, improving quality and promoting product update. Simante provides specialized integrated solutions for customers to ensure it meets the customer's requirement. We have advanced Rj45 Keystone Jack factory. Welcome to visit.

17+ Industry Experience

Our main products include keystone jacks,patch panels, wall face plates, data sockets, etc., and are widely used in structured cabling, network communication, smart home and automation equipment, and other fields. The factory has 10 regular and customization production lines, fully automatic injection molding machine 10 sets, semi-automatic injection molding machine 20 units, all kinds of automatic installed machine 8 units, maintaining the stable annual output of more than 9 million.

It is precisely because we are based on the high-end market that Simante has higher requirements for product quality. Not only strictly manage the production, but also meet customers' comprehensive testing requirements for products through good performance testing. As fast growing CAT6 Keystone Jack supliers in China, We maintain stable export volume in Europe, Australia, Africa, the Middle East and Southeast Asia, and also undertake OEM and ODM projects.

Simante, help you create value together!

Certificate Display

We have a number of national patents, we have also passed the ISO9001 quality management system certification, and all our products meet the standards.

  • EMC
  • LVD
  • TUV
  • ROHS
  • ISO
  • REACH

News

Our major events and exhibition information.

What parts are 24 Port Fiber Optic Patch Panel mainly used to connect in building wiring? The horizontal wiring system is the physical link between the information point in the building and ...
In a high electromagnetic interference environment, how does the port shielded blank patch panel ensure network stability? In a high electromagnetic interference environment, the port shielded blank patch panel uses multipl...
During the wiring process, when using the 110 Wiring Block, are there any special requirements for the wiring and jumper connection methods? The 110 Wiring Block is mainly used to terminate multiple pairs of voice cables from the main machin...
What application scenarios can blank patch panels be used for? In a data center or network room, as the number of devices and bandwidth requirements increase, the ...
What positive impact can the Dust-proof Brush Cable Organizer have on extending the service life of cables? The Dust-proof Brush Cable Organizer can effectively prevent dust and debris from entering the cabin...
How does the 86 Type Single Port Rotary Faceplate perform in terms of impact resistance and collision resistance? The 86 Type Single Port Rotary Faceplate is made of high-quality ABS engineering plastics, which has...
What role do Cable Manager play in preventing cable damage? Cable Manager arrange and fix cables neatly through their unique designs, such as adjustable fingers...
What are the environmental performance requirements for Single Port Surface Box in terms of humidity? The environmental performance requirements for Single Port Surface Box in terms of humidity are extr...
What are the common types of Cable Manager? What scenarios are they suitable for? 1. Horizontal and vertical Cable ManagerThis is the most common type, usually designed with a long s...
Do different sizes and shapes of male connectors affect their performance or application range? Different sizes and shapes may result in different Male Connector arrangements, spacing, and shieldi...
What devices are mainly connected to the Surface Mount Box in the building wiring system? The patch panel is a key device in the integrated wiring system, which is used to manage and distrib...
Which level of wiring connection is the CAT6 patch panel mainly used for in the building? The CAT6 patch panel plays a key role in the structured cabling system. It is responsible for organi...

INDUSTRY KNOWLEDGE EXTENSION

When it comes to the design and features of a Cat6 Keystone Jack, there are several key aspects to consider. Here's an overview of the design and features commonly found in Cat6 Keystone Jacks:
    Design and Compatibility: Cat6 Keystone Jacks are specifically designed to support Cat6 Ethernet cables, which are capable of transmitting data at higher speeds and with better performance compared to Cat5e cables. The keystone design allows for easy installation and compatibility with keystone wall plates, patch panels, or surface-mount boxes.
    Performance and Bandwidth: Cat6 Keystone Jacks are engineered to meet the performance requirements of Cat6 cabling standards. They provide improved signal integrity, reduced crosstalk, and better noise immunity, allowing for reliable and high-speed data transmission. Cat6 cables and keystone jacks can support Gigabit Ethernet (1000BASE-T) and are suitable for various network applications.
    Termination Process: Cat6 Keystone Jacks employ a termination process that enables the precise connection of individual conductors from the Cat6 Ethernet cable to the jack's contacts or terminals. This termination process typically involves punching down the wires using a punch-down tool, ensuring a secure and consistent connection.
    Wiring Schemes: Cat6 Keystone Jacks often support both T568A and T568B wiring schemes, which are the industry-standard wiring configurations for Ethernet connections. These color-coded schemes provide consistency and compatibility with other networking equipment, making installation and troubleshooting easier.
    Backward Compatibility: Cat6 Keystone Jacks are backward compatible with lower category cables such as Cat5e and Cat5. This means that you can use Cat6 Keystone Jacks with Cat5e or Cat5 cables, but keep in mind that the overall network performance will be limited to the capabilities of the lowest category component in use.
    Shielded or Unshielded: Cat6 Keystone Jacks are available in both shielded (STP) and unshielded (UTP) versions. Shielded Cat6 Keystone Jacks provide additional protection against electromagnetic interference (EMI) and can be beneficial in environments with higher levels of interference.
    Durability and Construction: Cat6 Keystone Jacks are typically constructed with high-quality materials to ensure durability and long-lasting performance. Look for jacks with robust housing, gold-plated contacts for better conductivity and corrosion resistance, and reliable IDC (Insulation Displacement Connector) terminals for secure wire termination.
    Certification and Compliance: Cat6 Keystone Jacks that adhere to industry standards and certifications, such as those set by the Telecommunications Industry Association/Electronic Industries Association (TIA/EIA) and UL (Underwriters Laboratories), provide assurance of quality, performance, and compliance.
It's important to note that the specific design and features of Cat6 Keystone Jacks may vary among manufacturers and models. When selecting a Cat6 Keystone Jack, consider your specific requirements, such as the installation environment, performance needs, and compatibility with other networking equipment, to choose a jack that best suits your needs.
