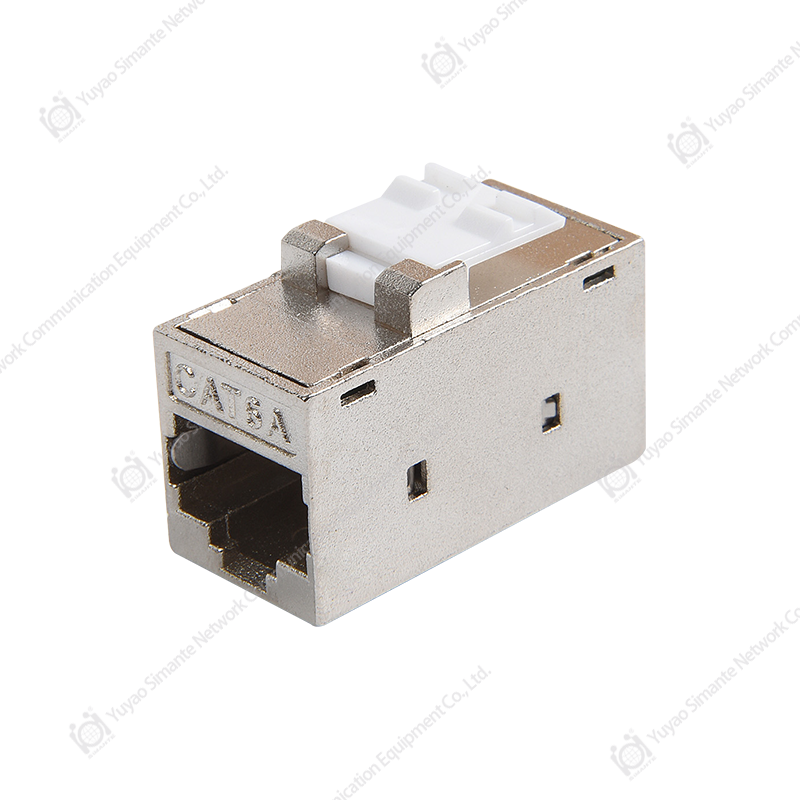

CAT6A Keystone Jack Manufacturers

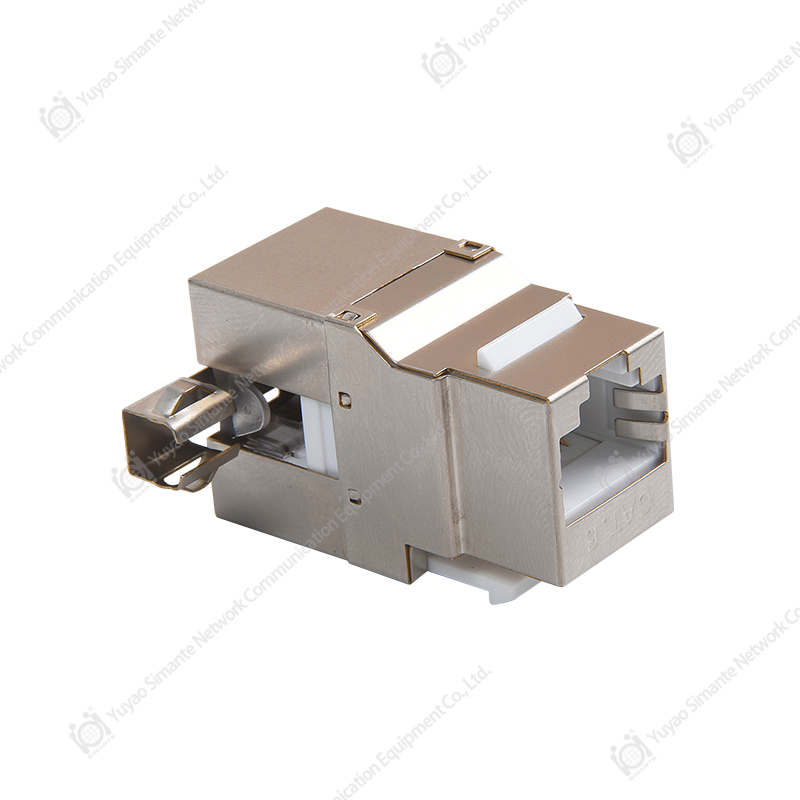

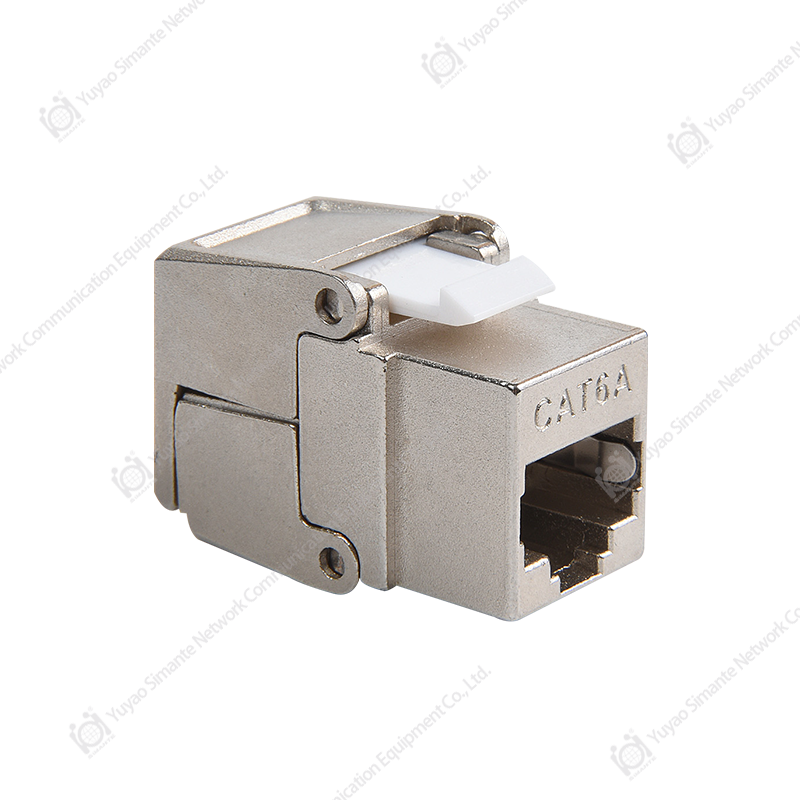

A CAT6A keystone jack is a type of keystone jack that is designed to support the CAT6A standard for Ethernet networking. CAT6A (Category 6A) is a higher-performance version of the standard CAT6 (Category 6) cable and is capable of higher speeds and greater bandwidth.

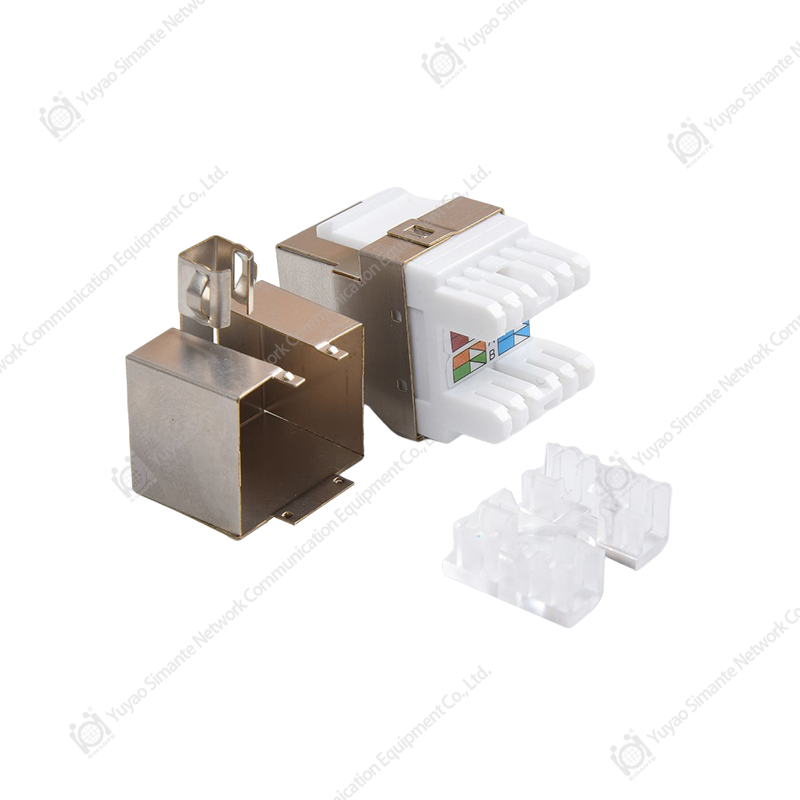

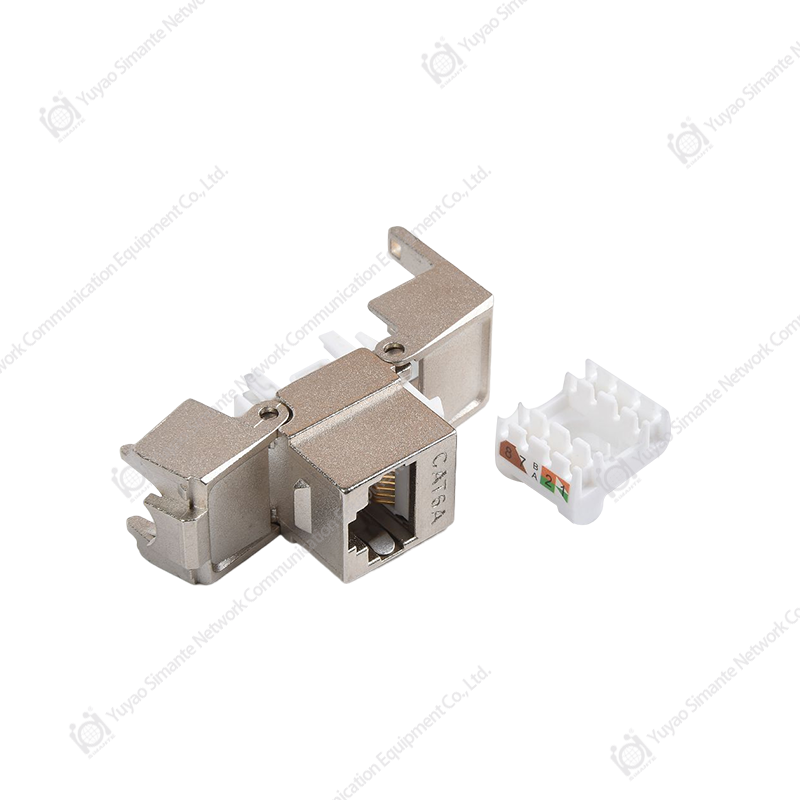

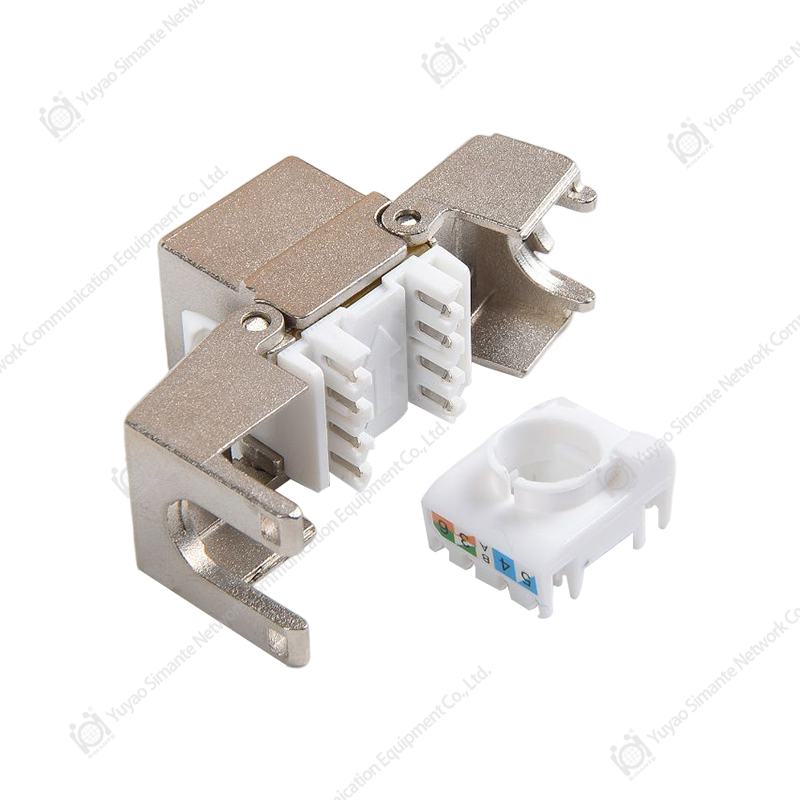

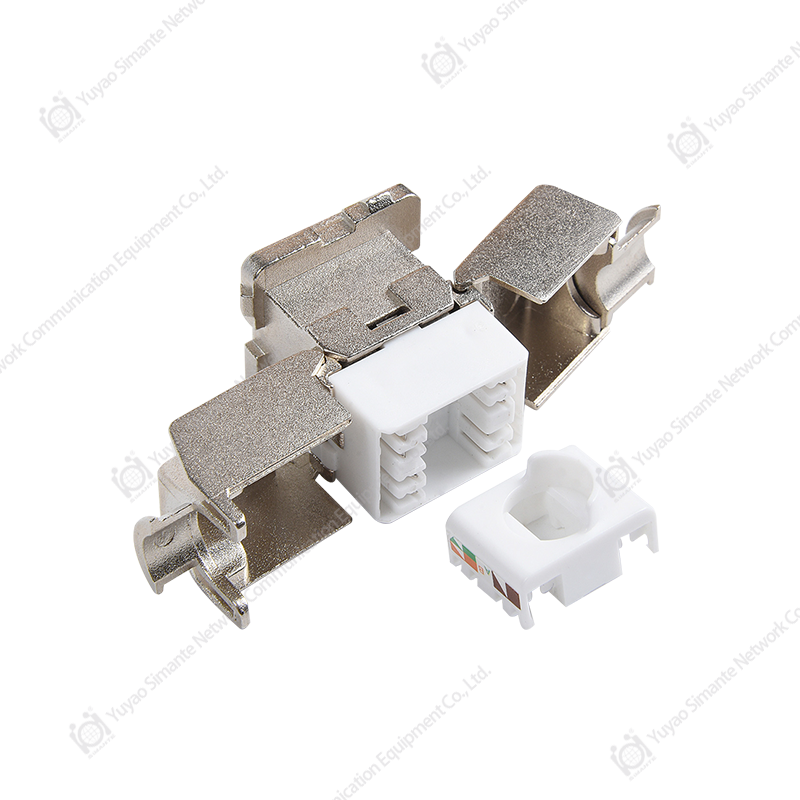

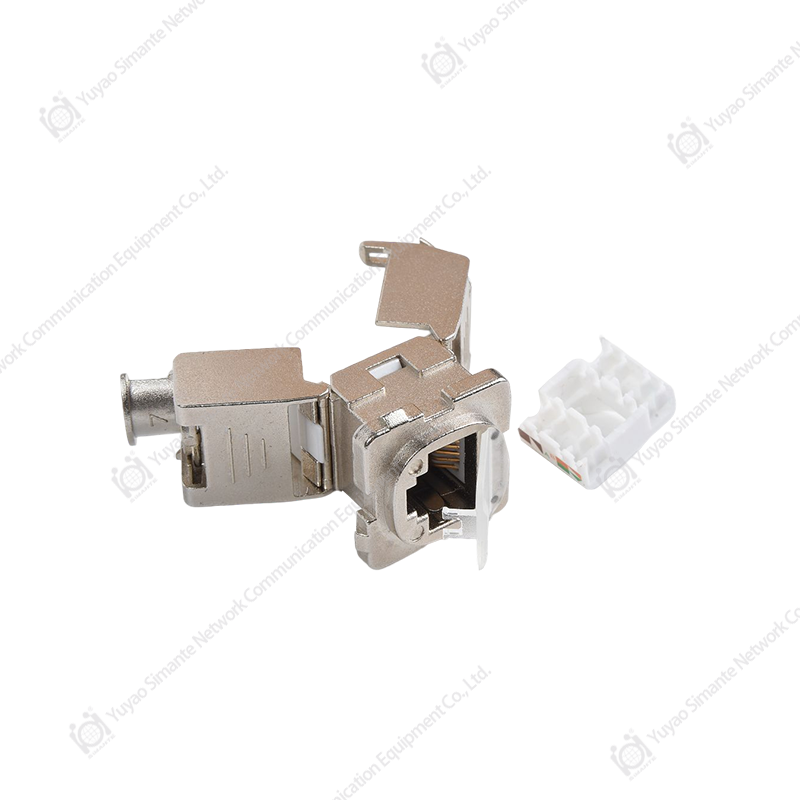

A keystone jack is a small, modular connector that can be used to terminate the end of a cable. The keystone jack is designed to fit into a keystone wall plate or patch panel, which provides a central location for connecting and disconnecting cables. The CAT6A keystone jack typically includes a series of conductive pins that are used to make connections with the wires inside the cable.
CAT6A keystone jacks are designed to support high-speed data transfer and are typically used in data centers, server rooms, and other high-performance networking environments where high-speed data transfer and low crosstalk are critical. They also support 10Gigabit Ethernet standard, which makes it suitable for high bandwidth applications.
CAT6A keystone jack is backward compatible with CAT6, CAT5e and Cat5 cables, which makes it suitable for upgrading existing cabling infrastructure.

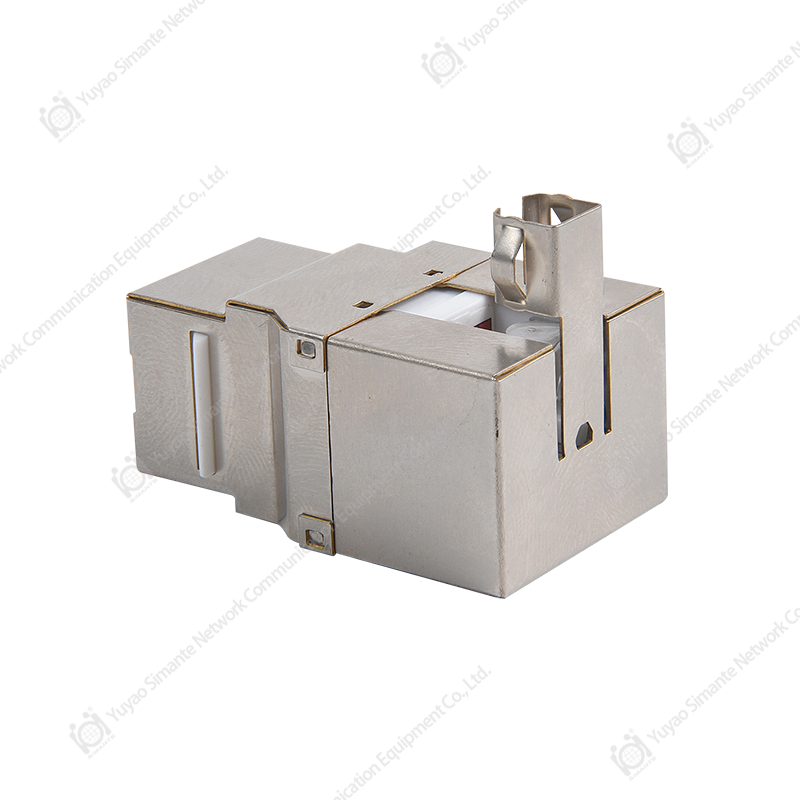

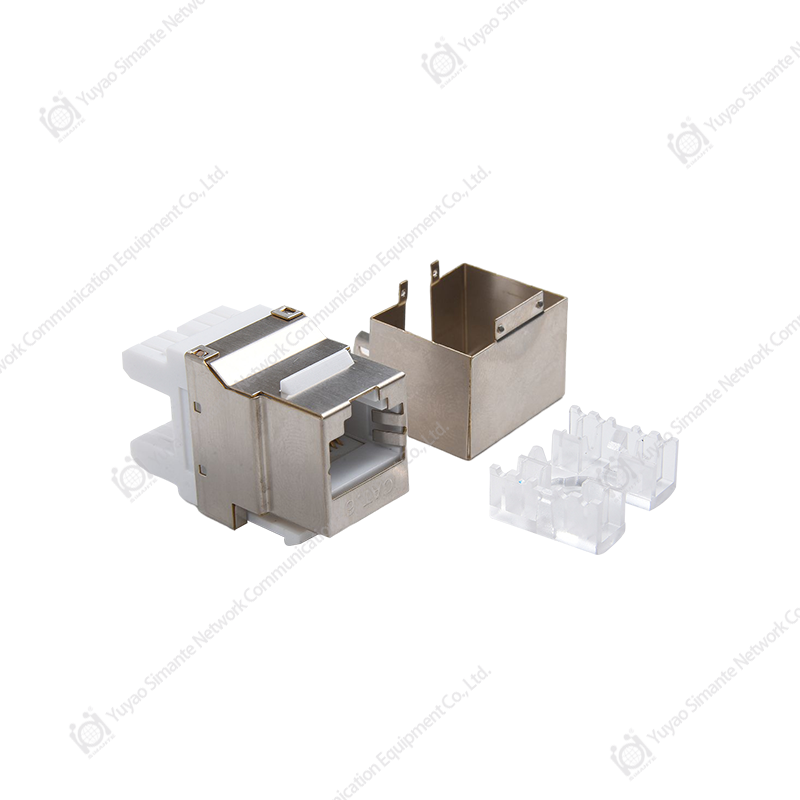

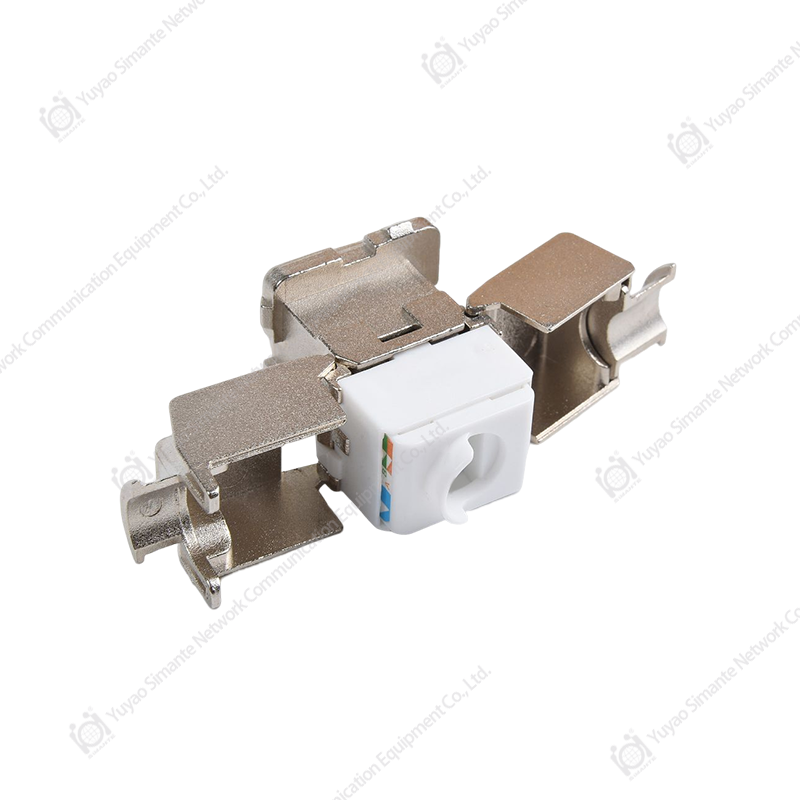

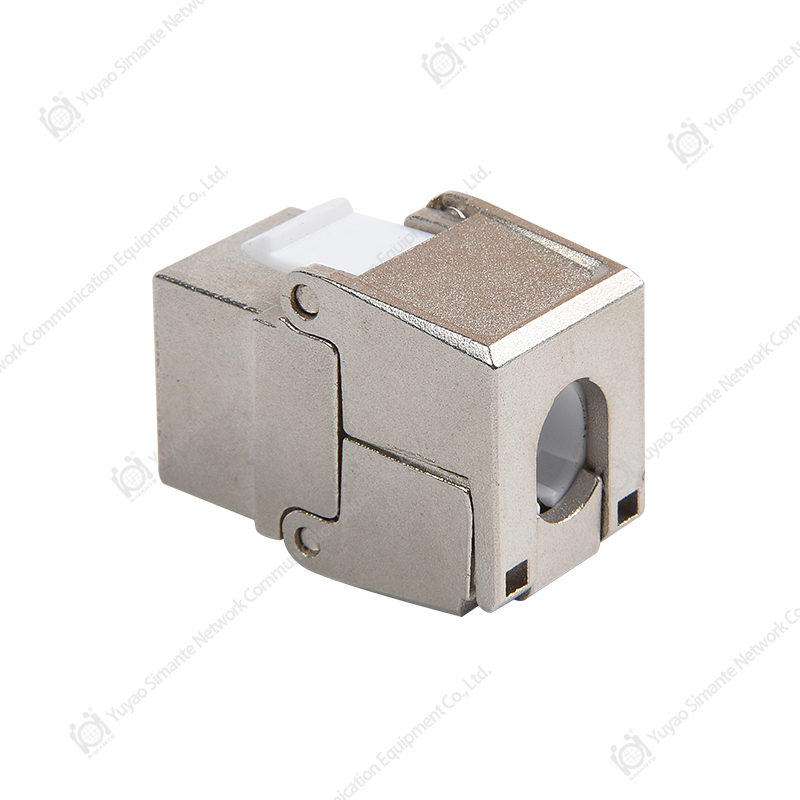

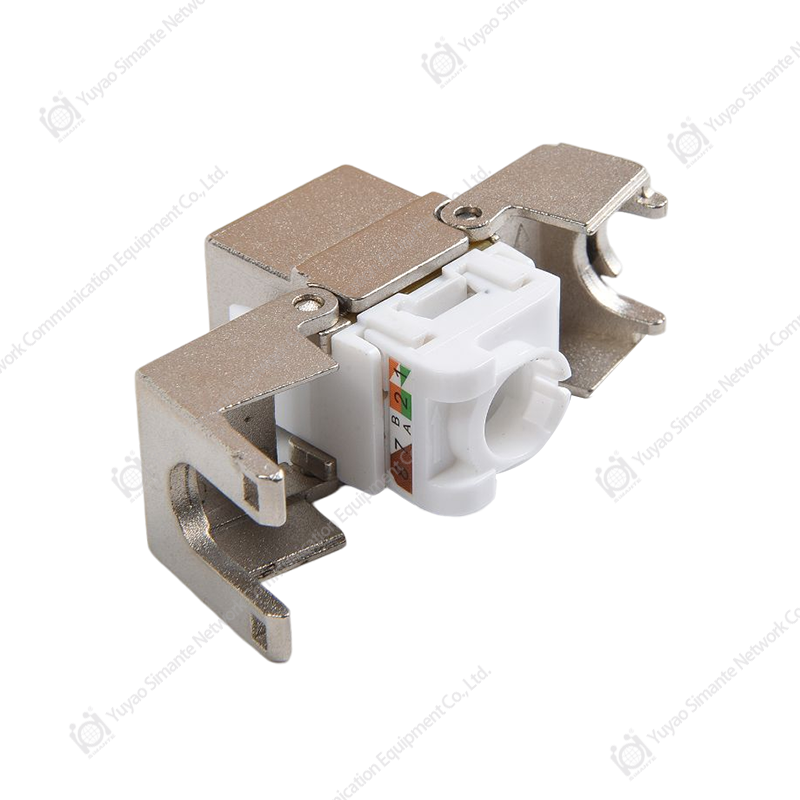

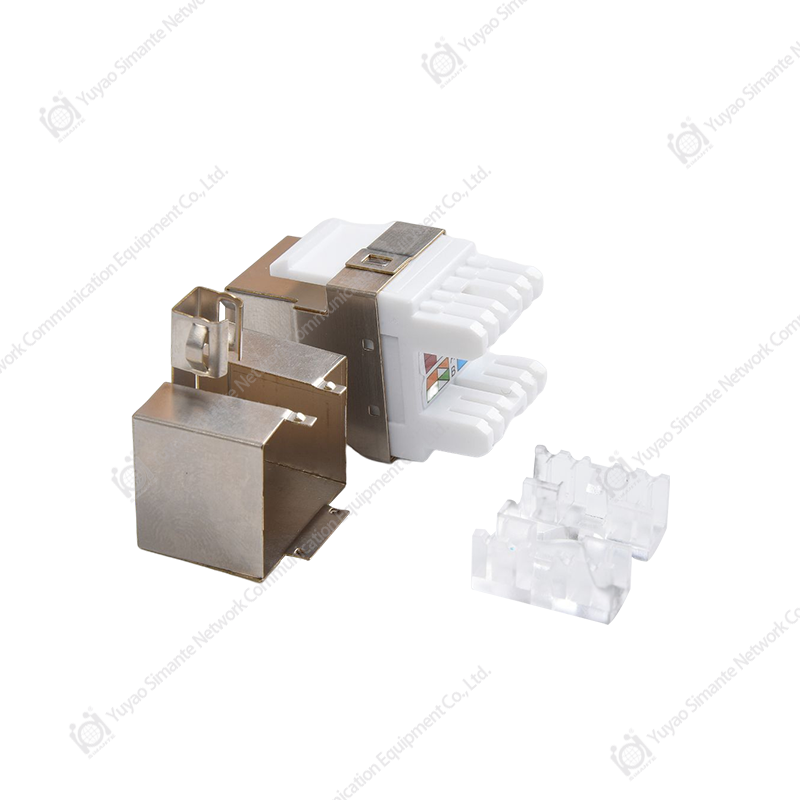

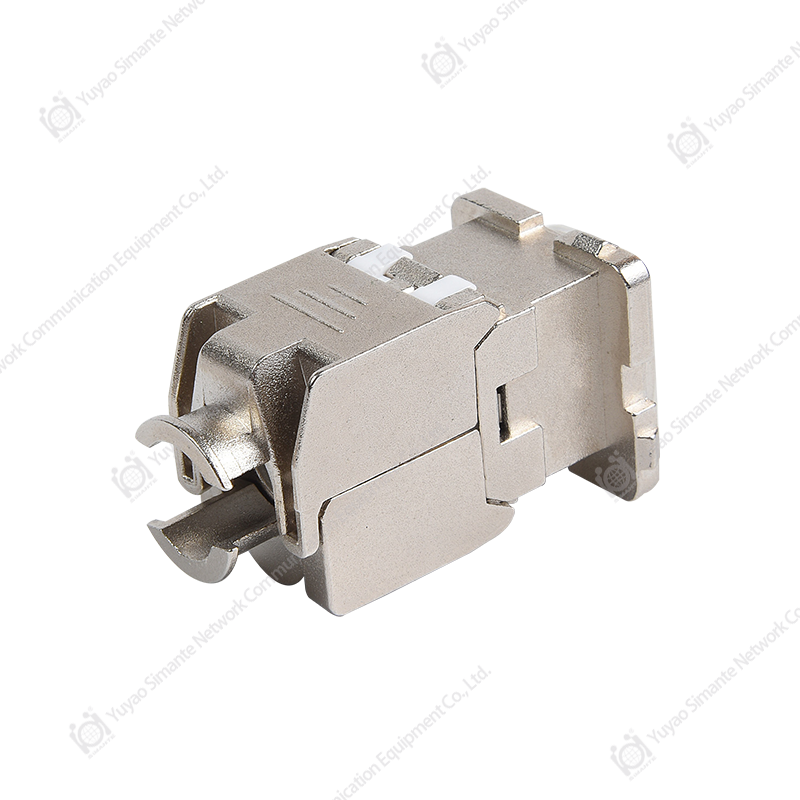

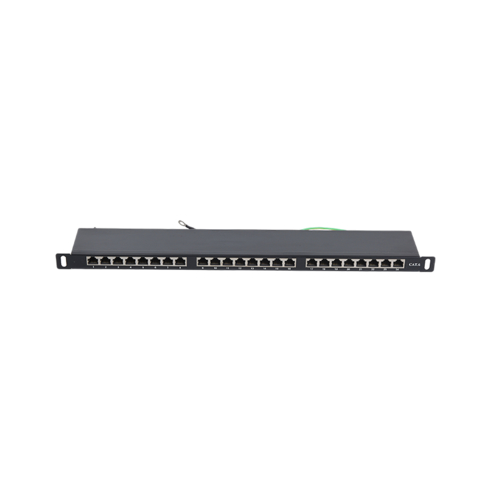

1.19" rack mount standard, sturdy, easy-to-install design, greatly improving work efficiency; compatible with 19" equipment racks, cabinets and wall mounts.
2. The front of the 24 ports are marked with labels for convenient port identification; the back has a cable manager, which can effectively guide the cable to the termination point.
3. Connection method: RJ45 jack with jumper, IDC terminated with horizontal wiring. The contact pin contact adopts high and low dislocation technology, which effectively reduces the near-end crosstalk value. 360-degree all-round shielding shell design to prevent EMC electromagnetic interference. The rear cover of the shielding cover is fixed with a non-screw design, which is convenient and quick to install.
4. Environmental requirements: meet ROHS standards.
5. Material introduction: This patch panel product is used to connect the horizontal wiring and working area wiring on the same floor of the building, and is mainly used for the conversion connection of wiring equipment and terminal equipment or adapters. Product mating and mating cables are copper-axle twisted pair cables and copper-axle jumpers.
6. Inter-matching relationship: use with connectors of the same standard series
7. Applicable standard: General specification: YD/T 926.1-2009
Sub-standard: YD/T 926.3-2009
8. Technical parameters:
Electrical Characteristics:
A. Frequency range: 1～250MHz
B. Working voltage: 125 V
C. Withstand voltage: DC1000V (AC750V) 1min without breakdown and arcing phenomenon
D. Near-end crosstalk attenuation: ≥3dB
E. Insulation resistance: initial value ≥ 100MΩ
      After constant damp heat test ≥100MΩ
Mechanical properties:
A. Insertion force and pull-out force: the insertion force is not more than 20N, and the pull-out force is not less than 20N
B. Effect of connector connection device: 50N 60±5s
C. IDC terminal is clamped to 23~26AWG twisted pair
Durability:
A. The number of times the plug and socket are inserted: 750 times
B. Number of wire terminations: 250 times
9. Material and surface treatment:
A. Metal material:
Bracket: cold rolled steel sprayed with plastic
Gold Needle: Phosphor Bronze Gold Plated
IDC card wire terminal: Phosphor bronze nickel plated
B. Non-metallic materials:
Plastic: PC polycarbonate, PBT
C. Thickness of gold-plated layer: 3~50U gold-plated
D. PCB material: FR4
10. Environmental performance: Temperature: -25～+70℃ Humidity: ≤85% (temperature 85℃±3℃)
Salt spray test:
A. The pH value of the salt solution before atomization is between 6.5 and 7.2 (35±2℃);
B. The salt solution is prepared with sodium chloride (chemically pure, analytically pure) and distilled or deionized water.
Its concentration is (5±0.1)% (mass percentage);
C. Continuous atomization is adopted, and the recommended duration is 48h;
D. When atomizing, it is necessary to prevent impurities such as oil and dust and the temperature and humidity of the jet air from affecting the work.
conditions for the space.
11. Outline drawing and maximum size customized
12. Packaging and storage: The product is put into a special blister bag, and then put into a cardboard box, and the product accessories are placed at the same time, and a label indicating the product model and quantity is affixed on the upper left corner of the front of the carton , and put it in the carton. The packaged products should be stored in a warehouse where the ambient temperature is -5℃~+30℃, the relative humidity is not more than 70%, and there is no acid, alkali and other corrosive gases in the surrounding air, and the storage period is three years.
Regular packing quantity: 10 boxes per box, 1 per box, 10 per box.
13. Note: product use mark: customer specified packaging.
Since 2005

Yuyao Simante Network Communication Equipment Co., Ltd.

Yuyao Simante Network Communication Equipment Co., Ltd. is professional CAT6A Keystone Jack Manufacturers and suppliers in China, we offer complete network cabling solutions and optical fiber products integrating design, development, sales and service. The factory has 10 regular and customization production lines, fully automatic injection molding machine 10 sets, semi-automatic injection molding machine 20 units, all kinds of automatic installed machine 8 units, maintaining the stable annual output of more than 9 million. So we can custom made CAT6A Keystone Jack.

We specialize in network cabling solutions and optical fiber products integrating design, development, sales and service.

Based on the mature research and development system, the quality stability of Simante has been guaranteed at the design source. We have more than 10 engineers and over 30 full-time technical persons who continue to provide their professional value in the position, improving quality and promoting product update. Simante provides specialized integrated solutions for customers to ensure it meets the customer's requirement. We have advanced CAT6A Keystone Jack factory. Welcome to visit.

17+ Industry Experience

Our main products include keystone jacks,patch panels, wall face plates, data sockets, etc., and are widely used in structured cabling, network communication, smart home and automation equipment, and other fields. The factory has 10 regular and customization production lines, fully automatic injection molding machine 10 sets, semi-automatic injection molding machine 20 units, all kinds of automatic installed machine 8 units, maintaining the stable annual output of more than 9 million.

It is precisely because we are based on the high-end market that Simante has higher requirements for product quality. Not only strictly manage the production, but also meet customers' comprehensive testing requirements for products through good performance testing. As fast growing CAT6A Keystone Jack supliers in China, We maintain stable export volume in Europe, Australia, Africa, the Middle East and Southeast Asia, and also undertake OEM and ODM projects.

Simante, help you create value together!

Certificate Display

We have a number of national patents, we have also passed the ISO9001 quality management system certification, and all our products meet the standards.

  • EMC
  • LVD
  • TUV
  • ROHS
  • ISO
  • REACH

News

Our major events and exhibition information.

Does ring cable manager support centralized management of multi-device cables? In the modern office environment, centralized management of multiple device cables has become a key ...
Shielded Male Connector’s shielding effect and mechanism to reduce electromagnetic interference In modern electronic equipment and communication systems, electromagnetic interference (EMI) is a pr...
In which network environments are Port Shielded Blank Patch Panels widely used? Port Shielded Blank Patch Panel, that is, port shielded blank patch panel, is an indispensable part ...
Does Australia Faceplate Single Port support multiple types of cables or adapters? Australia Faceplate Single Port, as a common panel port, is widely used in the Australian market and...
Advantages of Dust-proof Brush Cable Organizer over traditional cable organizers In daily life and work, the organization and management of cables has always been a headache. Althou...
How is the Shielded CAT6A Inline Coupler compatible with other types of network connectors? In the field of network communications, network connectors are one of the key components in building...
Single Port Surface Box: How to install and use it effectively to improve the efficiency of home decoration? In modern home decoration, Single Port Surface Box is popular for its simple design and practical fu...
What is the key role of Male Connector in electronic devices? Among many electronic devices, what role does Male Connector play? This article will delve into the ...
What are the characteristics and applicable scenarios of CAT3 Keystone Jack? In network cabling, CAT3 Keystone Jack is a common connector, but what unique characteristics does i...
RingCable Manager: Maintain a neat and organized cable layout In modern networking and data center environments, a neat and organized cable layout is critical to ...
Toolless Shielded Male Connector’s electromagnetic interference suppression mechanism In network cabling, electromagnetic interference can adversely affect data transmission and network ...
Two Ports Beveled Frame 45°UK Type Faceplate’s special role in network cabling In modern network cabling, choosing the right panel is crucial, and Two Ports Beveled Frame 45°UK Ty...

INDUSTRY KNOWLEDGE EXTENSION

The design and application of a CAT6A Keystone Jack are similar to that of a CAT6 Keystone Jack, with some key differences to accommodate the higher performance capabilities of CAT6A cables. Here's an overview of the design and application of CAT6A Keystone Jacks:
    Design and Compatibility: CAT6A Keystone Jacks are specifically designed to support CAT6A Ethernet cables, which are capable of transmitting data at higher speeds and with better performance compared to CAT6 and lower category cables. They follow the same keystone design as other keystone jacks, allowing for easy installation and compatibility with keystone wall plates, patch panels, or surface-mount boxes.
    Performance and Bandwidth: CAT6A Keystone Jacks are engineered to meet the enhanced performance requirements of CAT6A cabling standards. They provide improved signal integrity, reduced crosstalk, and better noise immunity compared to lower category jacks. CAT6A cables and keystone jacks can support 10-Gigabit Ethernet (10GBASE-T) over longer distances, making them suitable for high-bandwidth applications.
    Termination Process: Similar to other keystone jacks, CAT6A Keystone Jacks use a termination process that involves punching down the wires from the CAT6A Ethernet cable into the jack's contacts or terminals. The termination process ensures a secure and consistent connection, but it's essential to follow proper wiring schemes and use a punch-down tool suitable for CAT6A terminations.
    Wiring Schemes: CAT6A Keystone Jacks support both T568A and T568B wiring schemes, which are the industry-standard configurations for Ethernet connections. These color-coded schemes provide consistency and compatibility with other networking equipment, simplifying installation and troubleshooting.
    Shielding: CAT6A Keystone Jacks commonly feature enhanced shielding options to minimize alien crosstalk and electromagnetic interference (EMI). They may have individually shielded pairs or an overall shield (F/UTP or S/FTP), which helps maintain signal integrity and performance in high-interference environments.
    Backward Compatibility: CAT6A Keystone Jacks are backward compatible with lower category cables, including CAT6, CAT5e, and CAT5. However, it's important to note that using a CAT6A Keystone Jack with lower category cables will limit the overall network performance to the capabilities of the lowest category component in use.
    Durability and Construction: CAT6A Keystone Jacks are typically constructed with high-quality materials to ensure durability and long-lasting performance. They may feature robust housing, gold-plated contacts for better conductivity and corrosion resistance, and reliable IDC (Insulation Displacement Connector) terminals for secure wire termination.
    Certification and Compliance: Look for CAT6A Keystone Jacks that comply with industry standards and certifications, such as those set by the Telecommunications Industry Association/Electronic Industries Association (TIA/EIA) and UL (Underwriters Laboratories). These certifications ensure the quality, performance, and compliance of the keystone jacks.
CAT6A Keystone Jacks are commonly used in applications that require higher data transfer speeds and bandwidth, such as data centers, enterprise networks, and high-performance network installations. They provide reliable connectivity and support the demands of modern networking requirements.
When selecting a CAT6A Keystone Jack, consider your specific needs, installation environment, and compatibility with other networking components to ensure optimal performance and reliability.
