Custom Blank Patch Panel

Home / Products / Copper System / Patch Panel / Blank Patch Panel

PRODUCTS

DETAILS

Blank Patch Panel Manufacturers

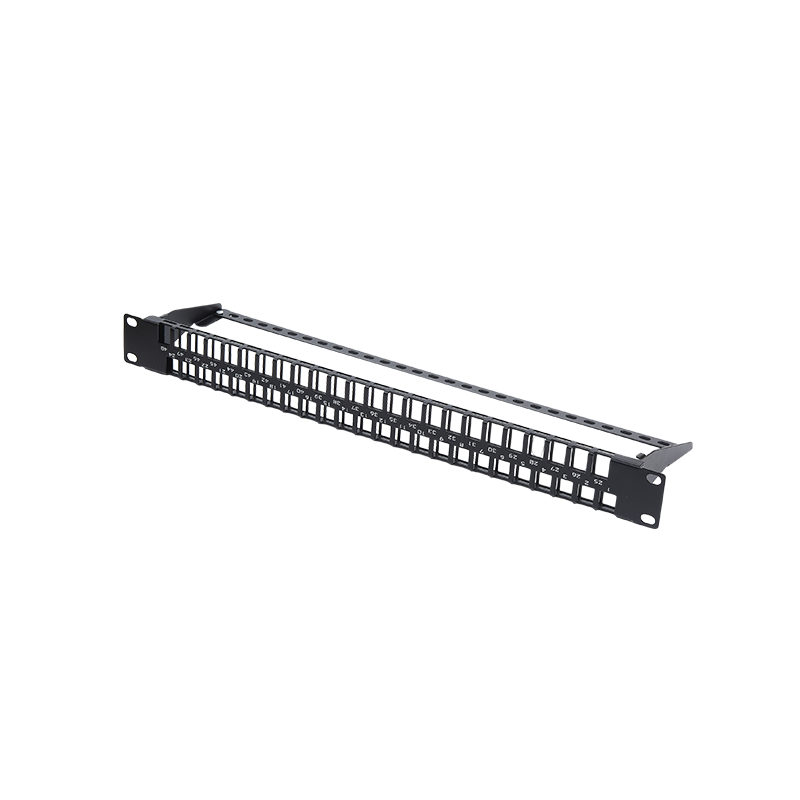

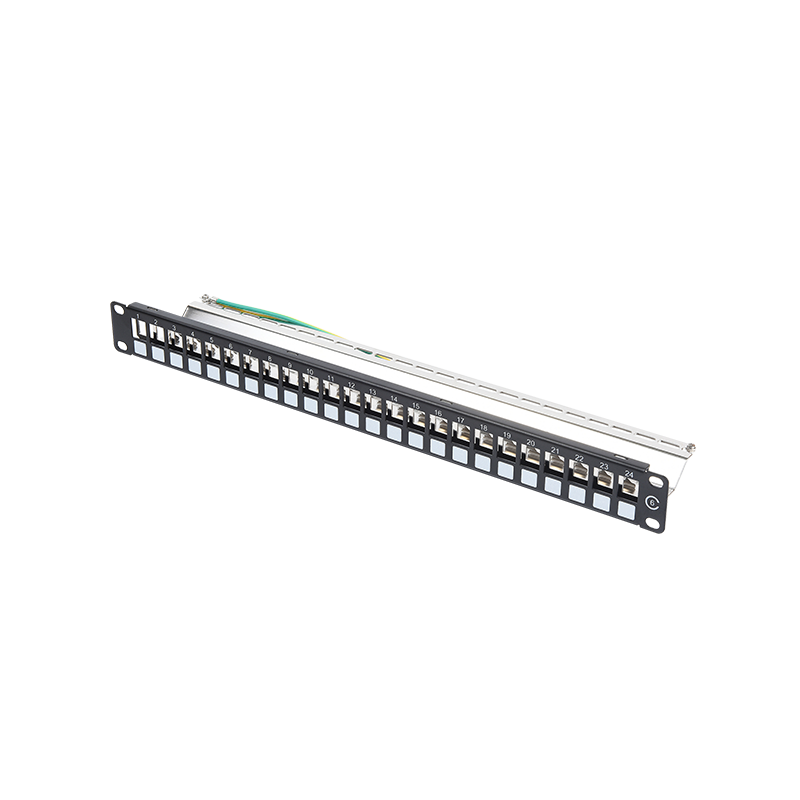

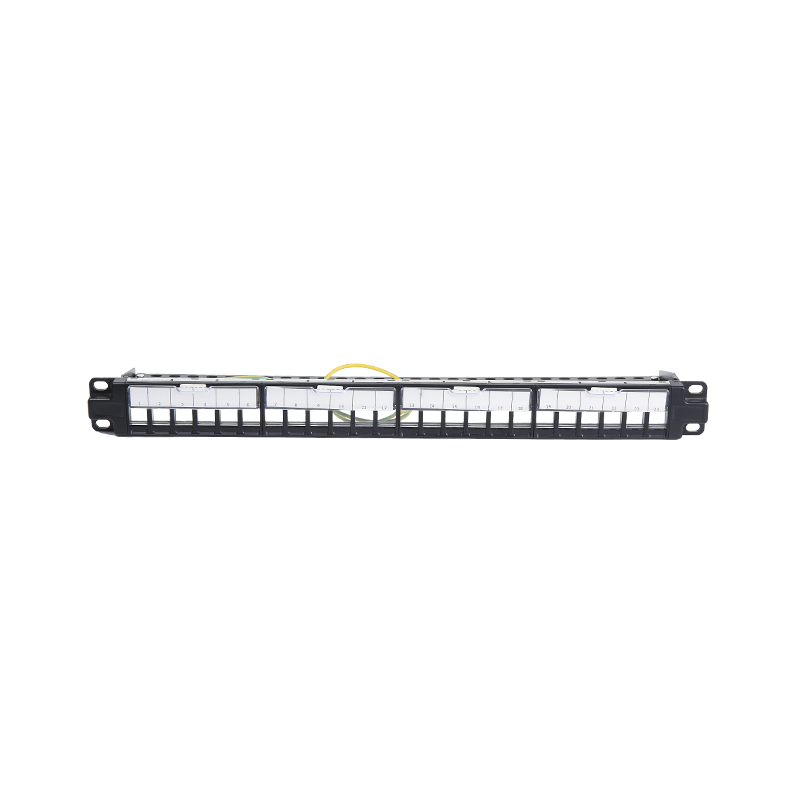

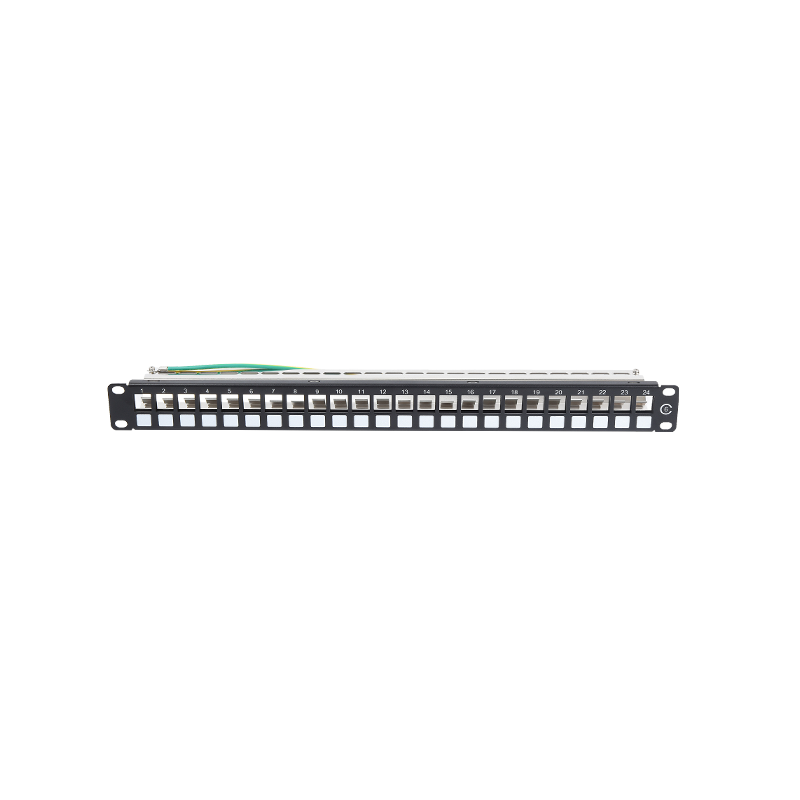

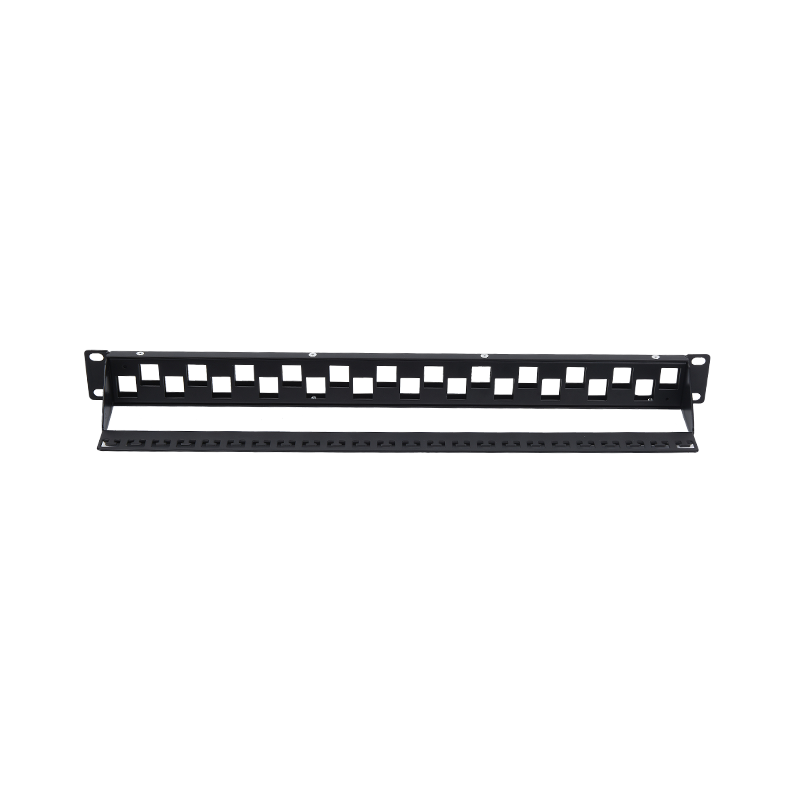

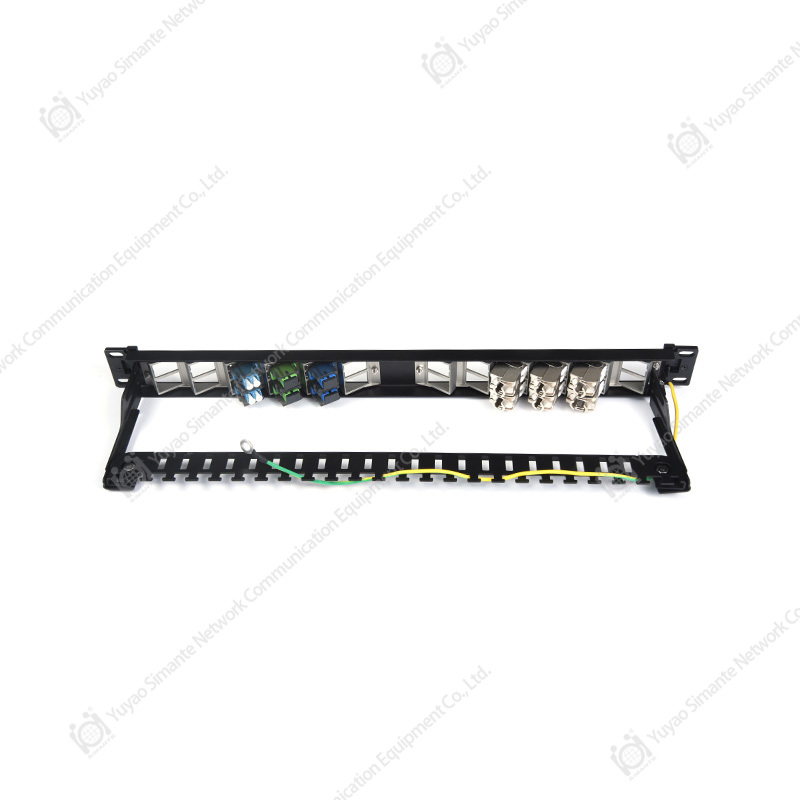

A blank patch panel is a type of patch panel that does not have any pre-installed ports or jacks. It is a metal or plastic panel with the same physical dimensions and mounting options as a standard patch panel, but it does not have any active components.

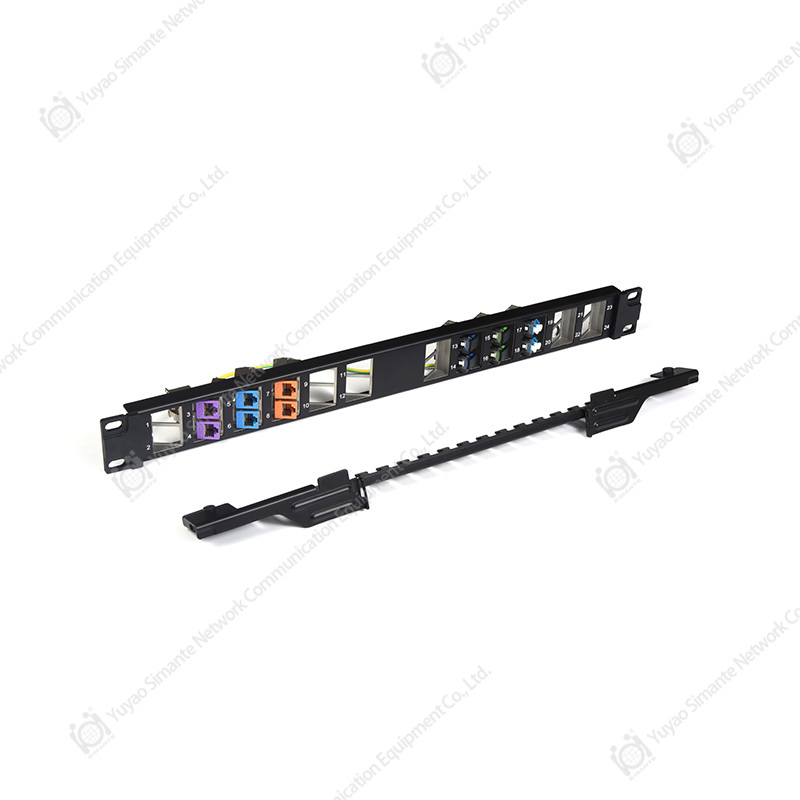

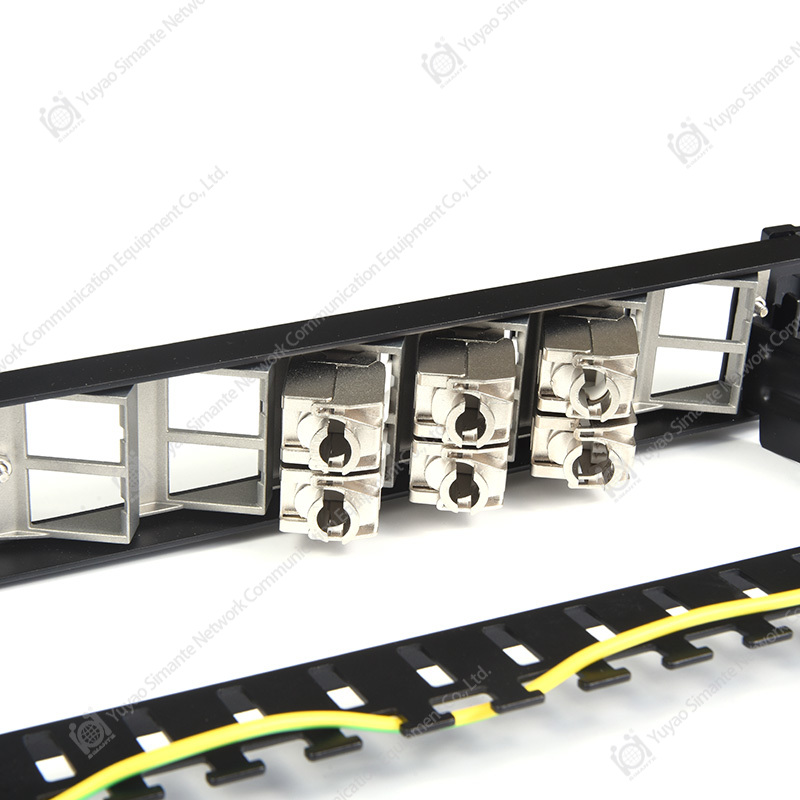

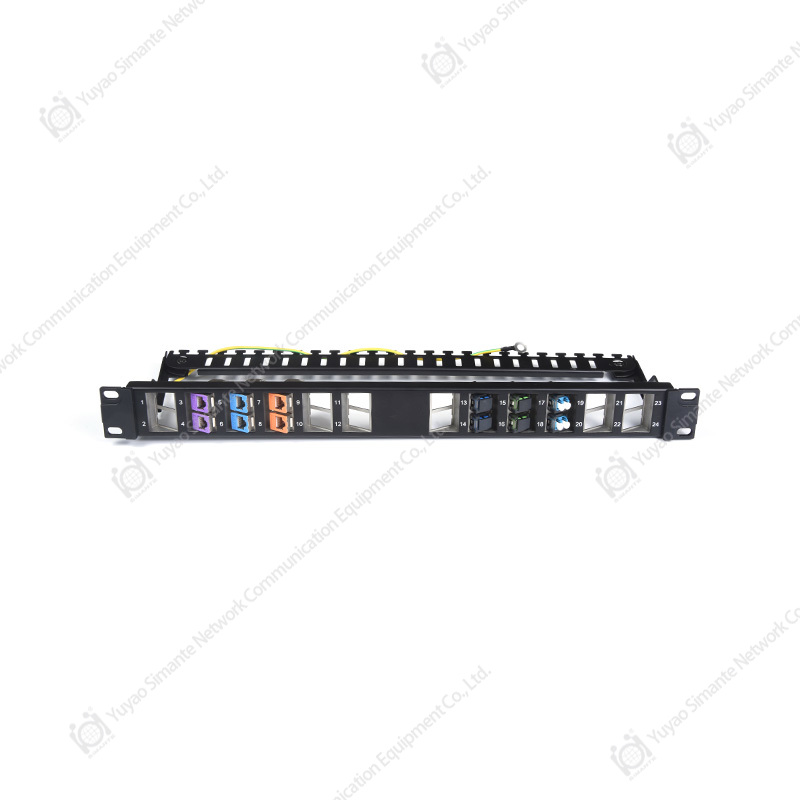

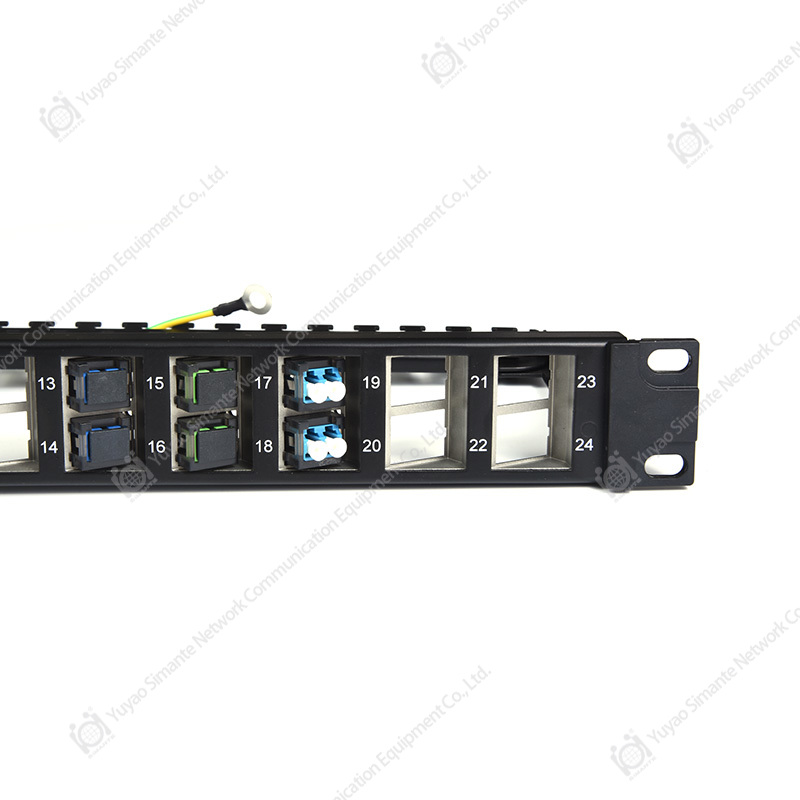

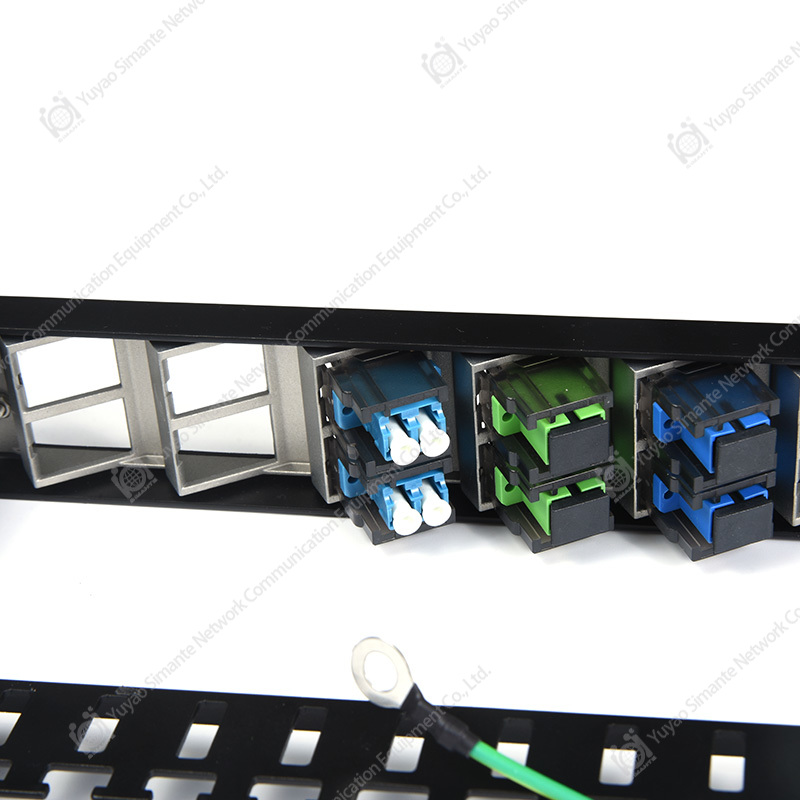

Blank patch panels are used to create a custom configuration of ports for a specific application. They can be used to add additional ports to an existing patch panel, or to create a patch panel with a unique configuration of ports that is not available as a pre-configured panel. The user or installer can install their desired number and type of connectors on the blank patch panel, such as keystone jacks, modular connectors, etc.
Blank patch panels are commonly used in data centers, server rooms, and other high-performance networking environments where flexibility and customization are important. They are also useful in situations where the number of cables required changes frequently, and the ability to add or remove ports as needed.

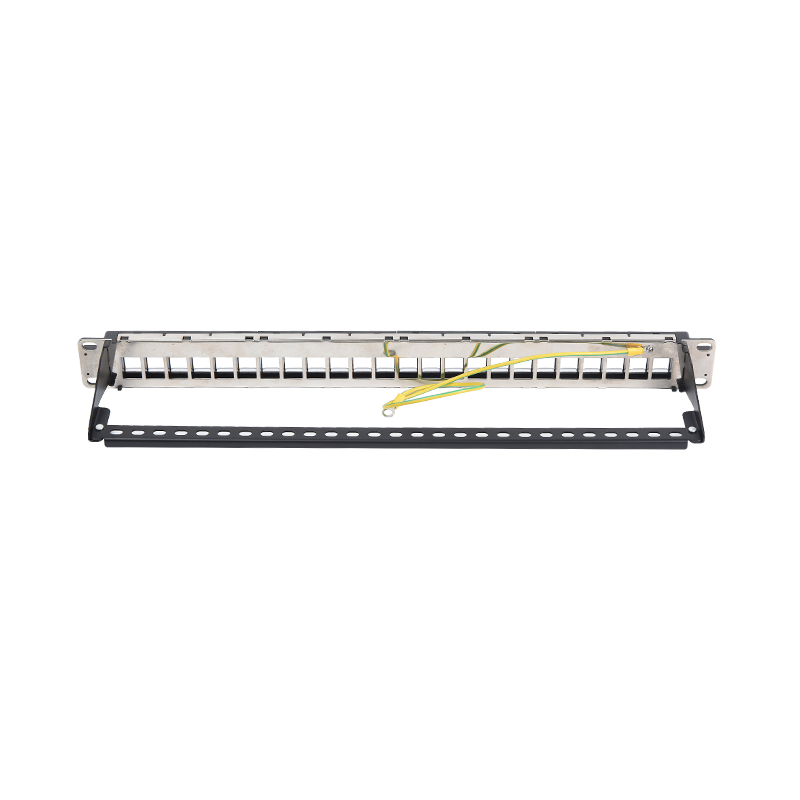

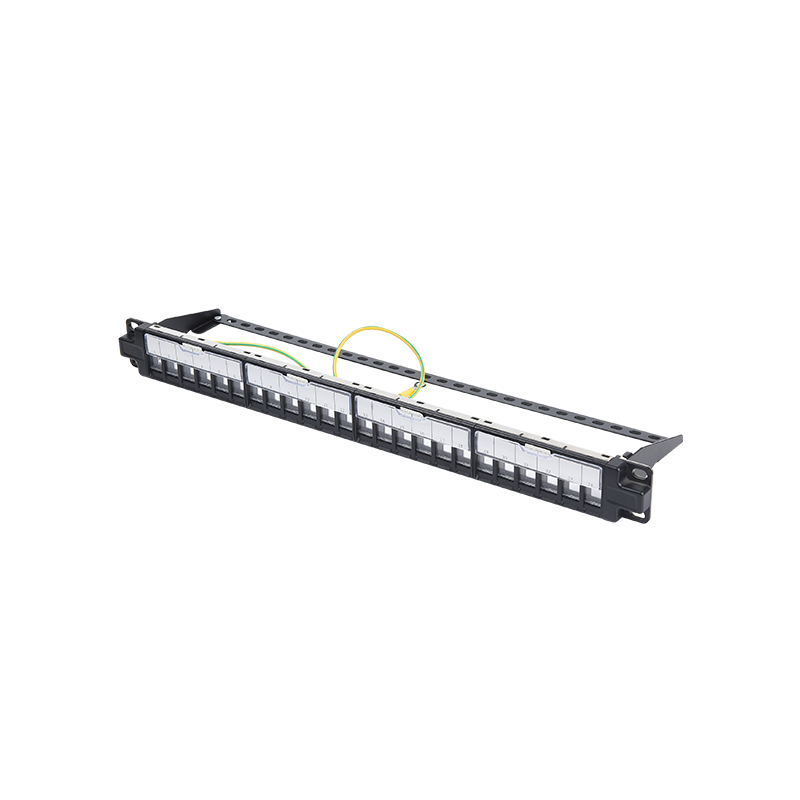

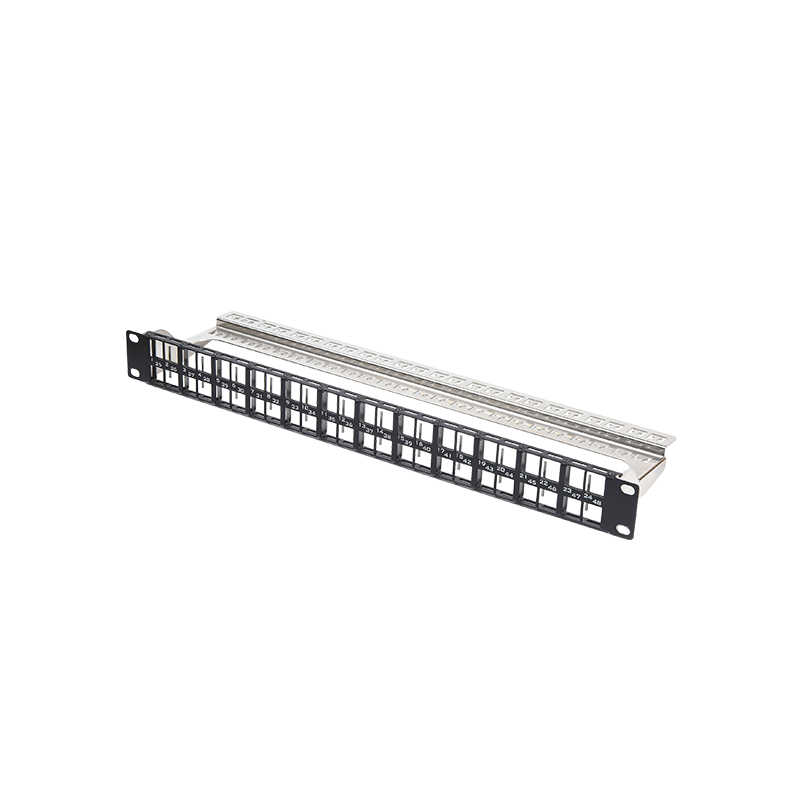

1.19" rack-mounted standard, sturdy, and easy-to-install design, greatly improving work efficiency; compatible with 19-inch equipment racks, cabinets and wall brackets, and the rear grounding fixture can be grounded conveniently and effectively.

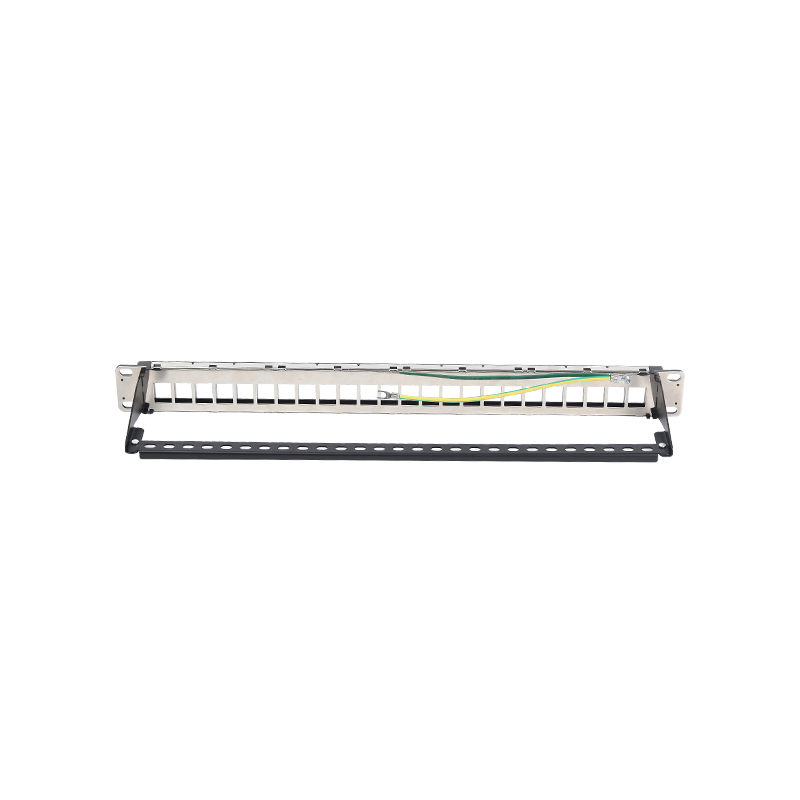

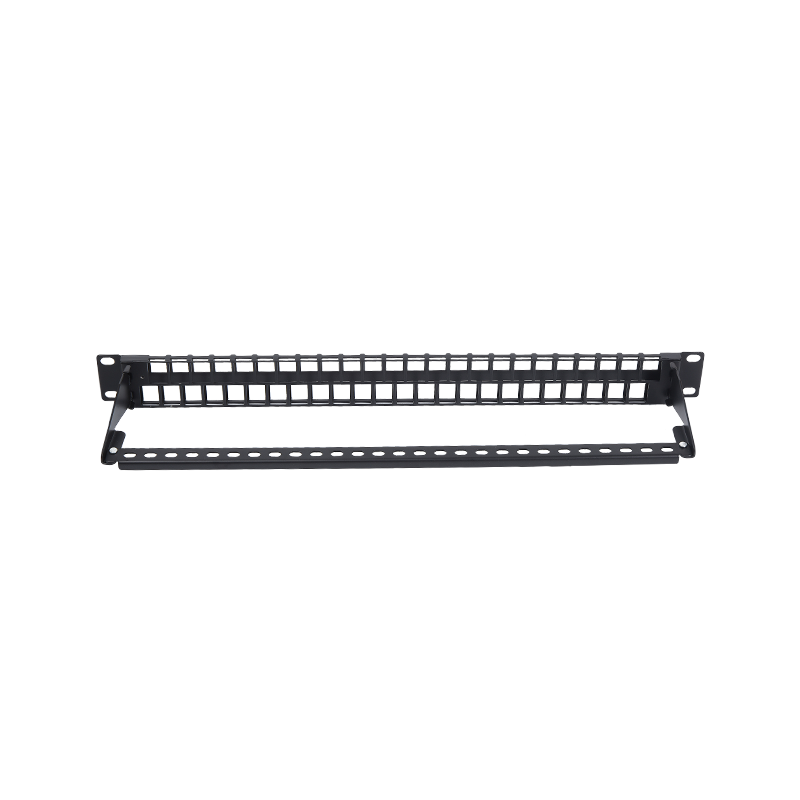

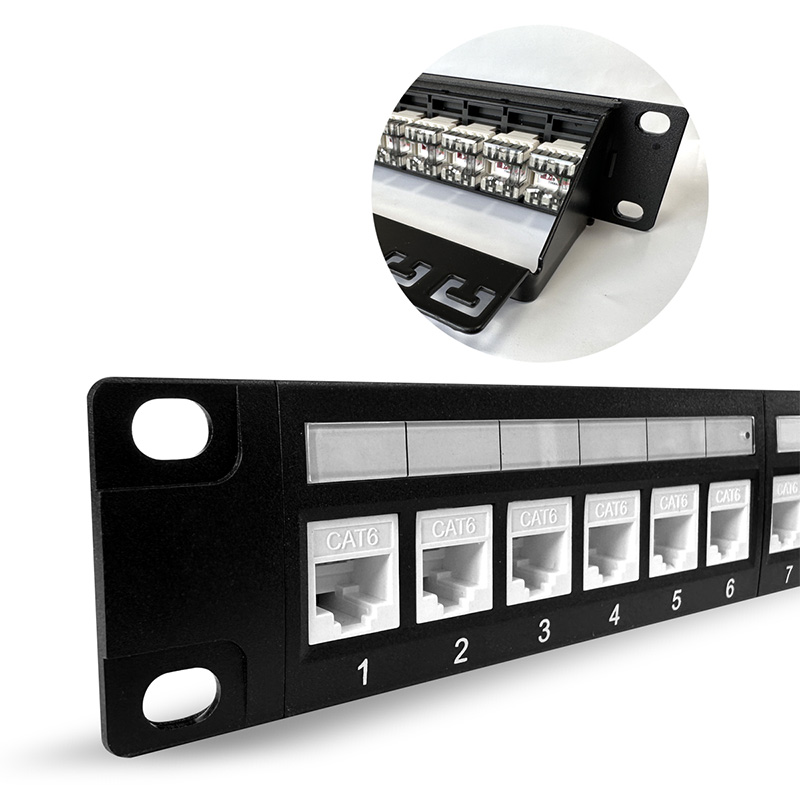

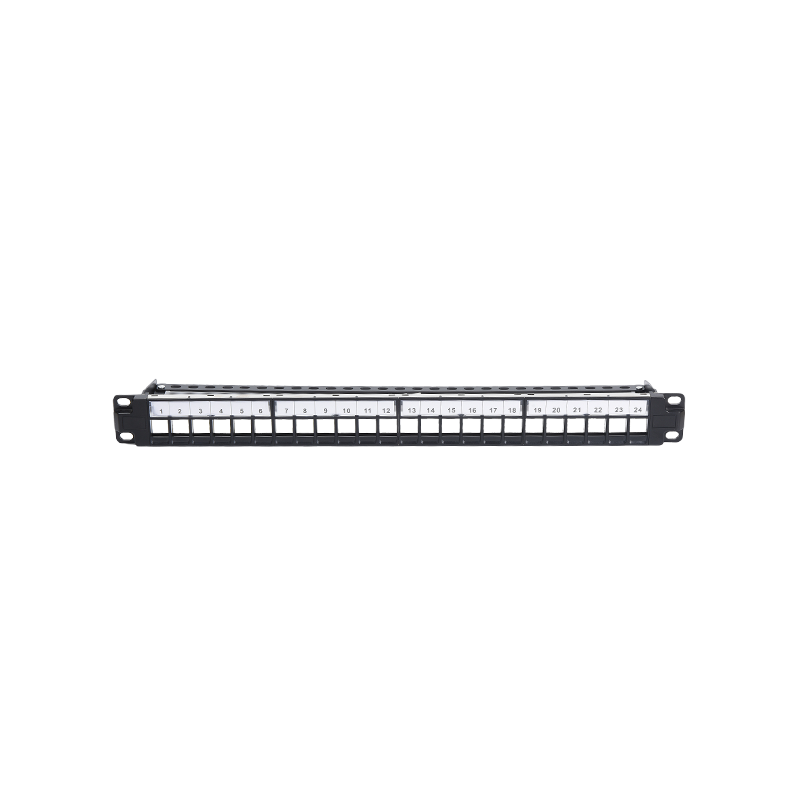

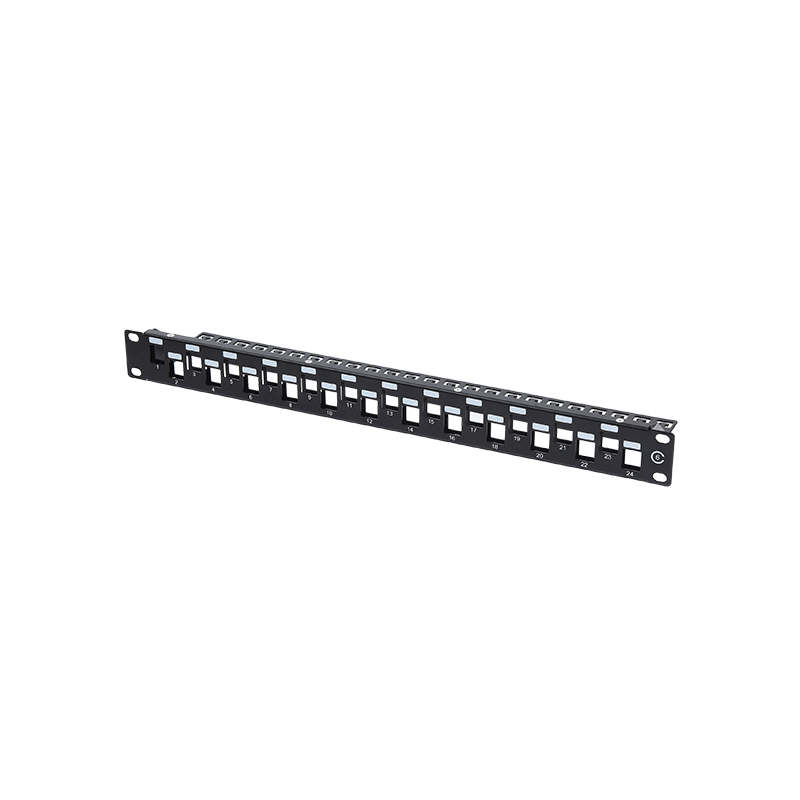

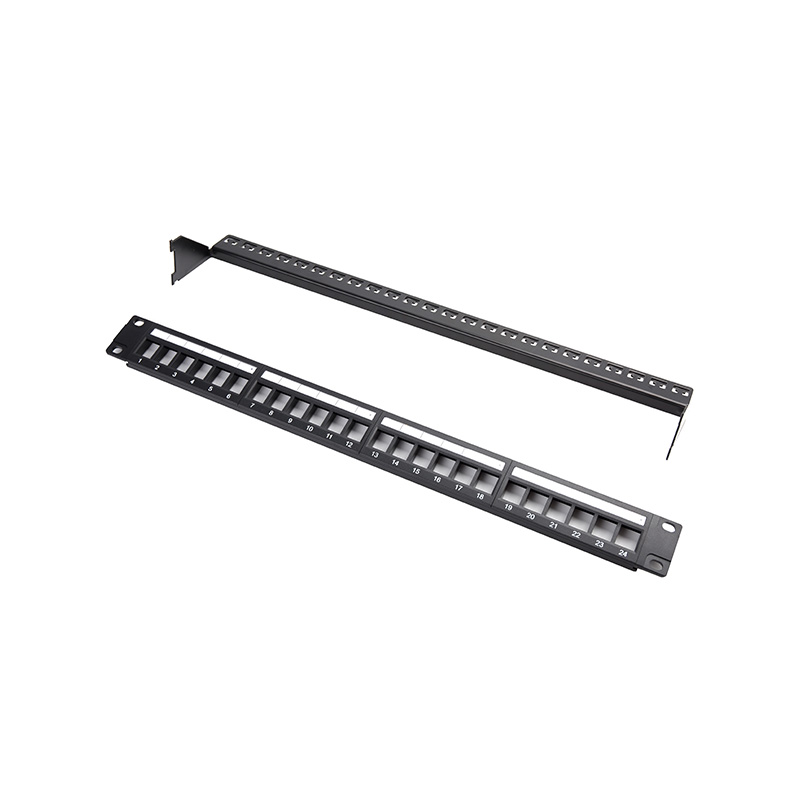

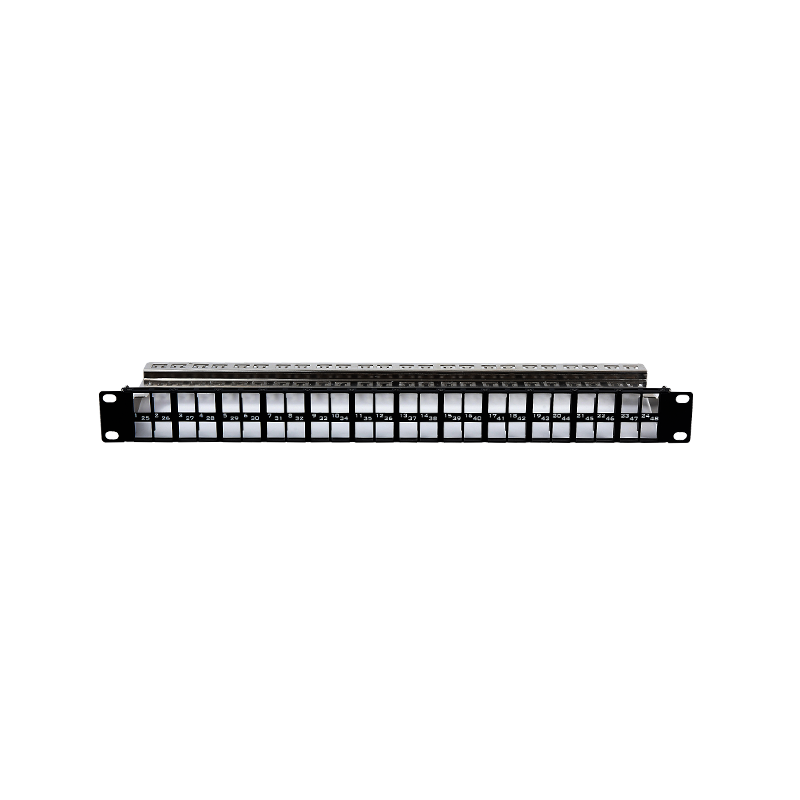

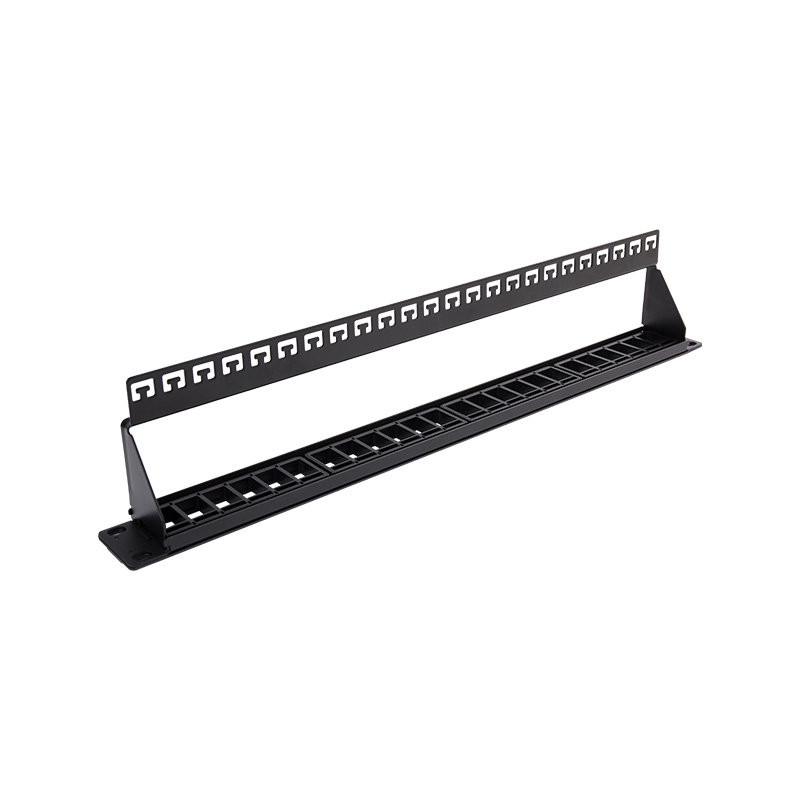

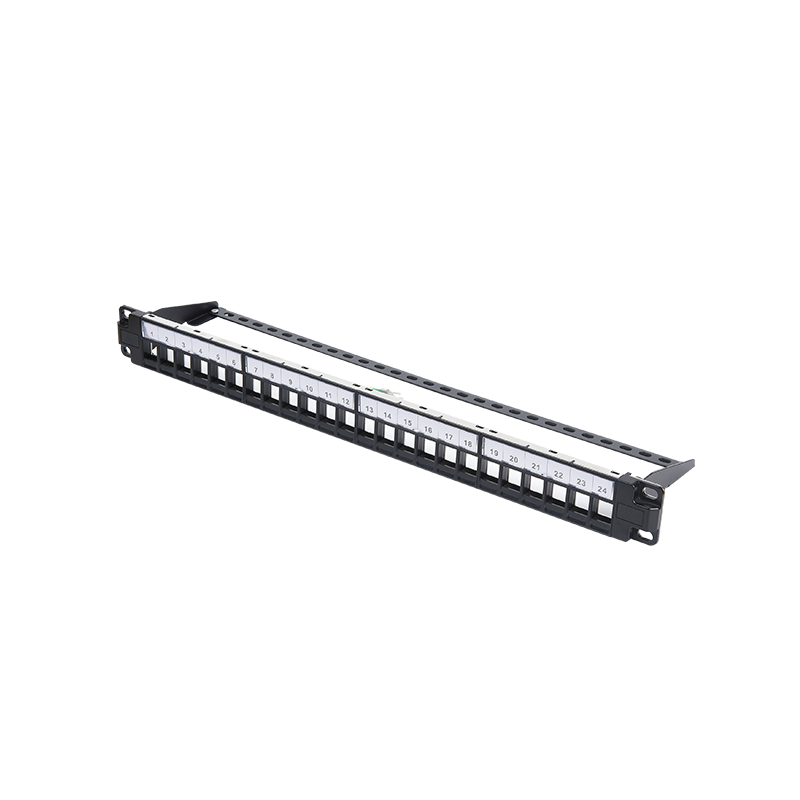

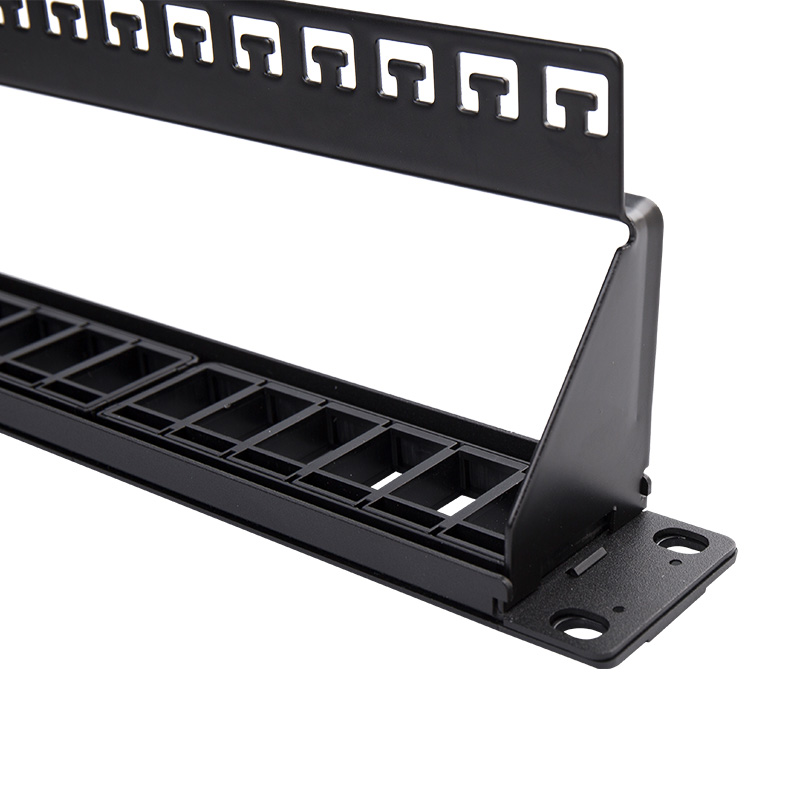

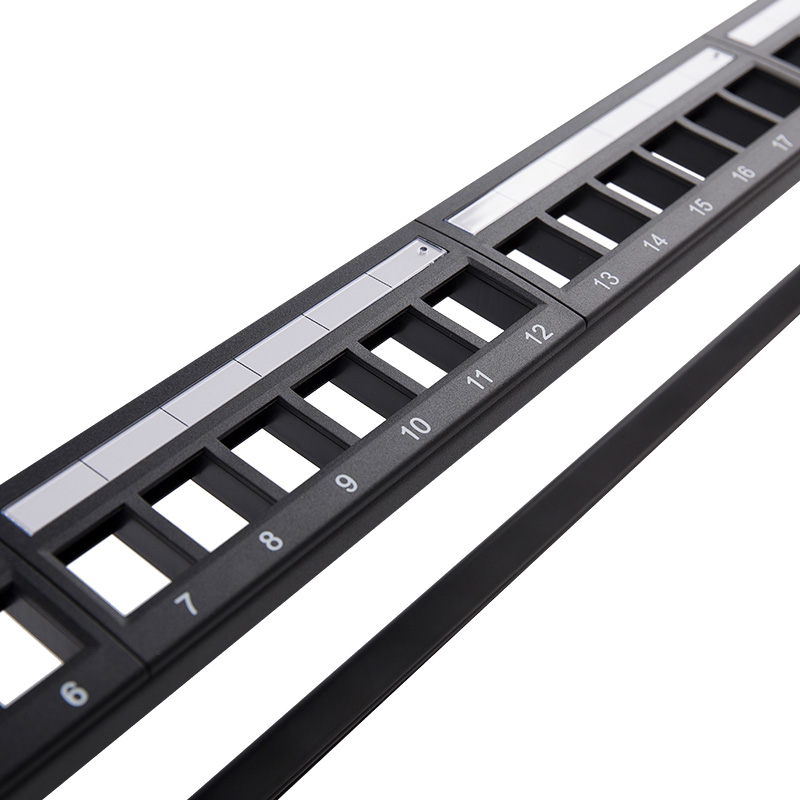

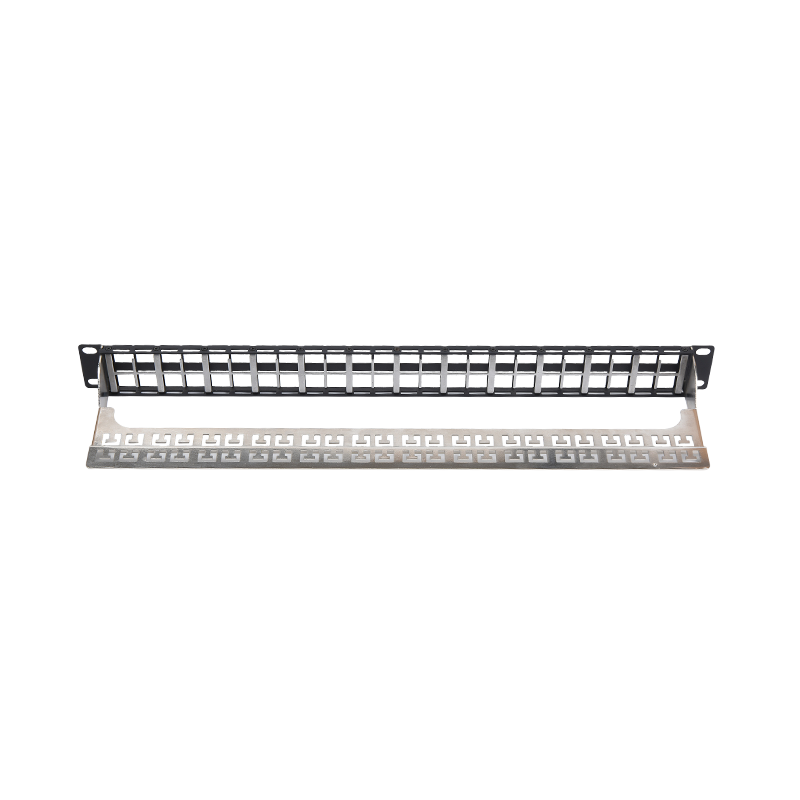

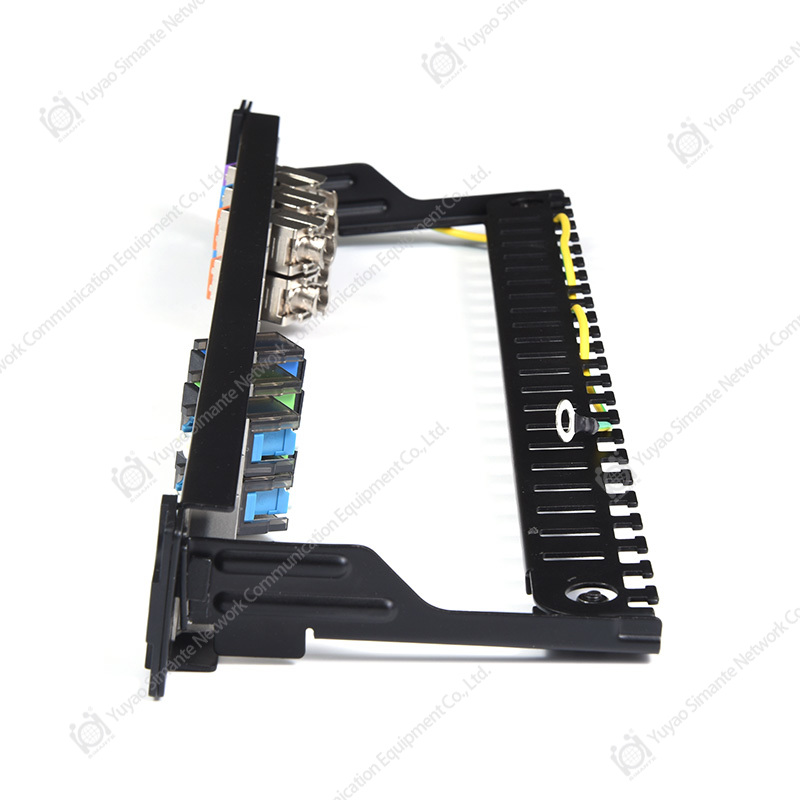

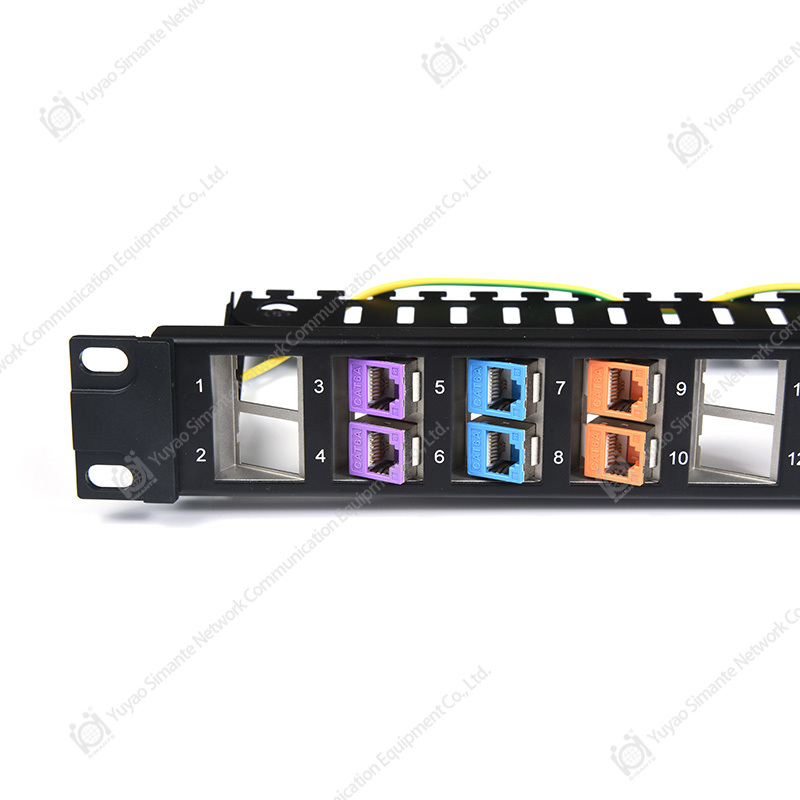

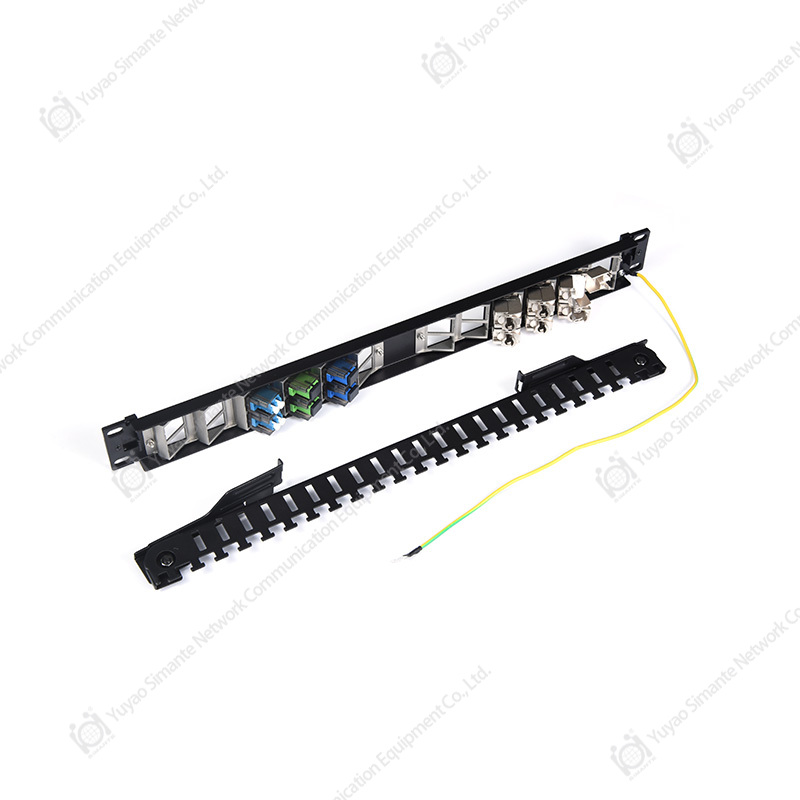

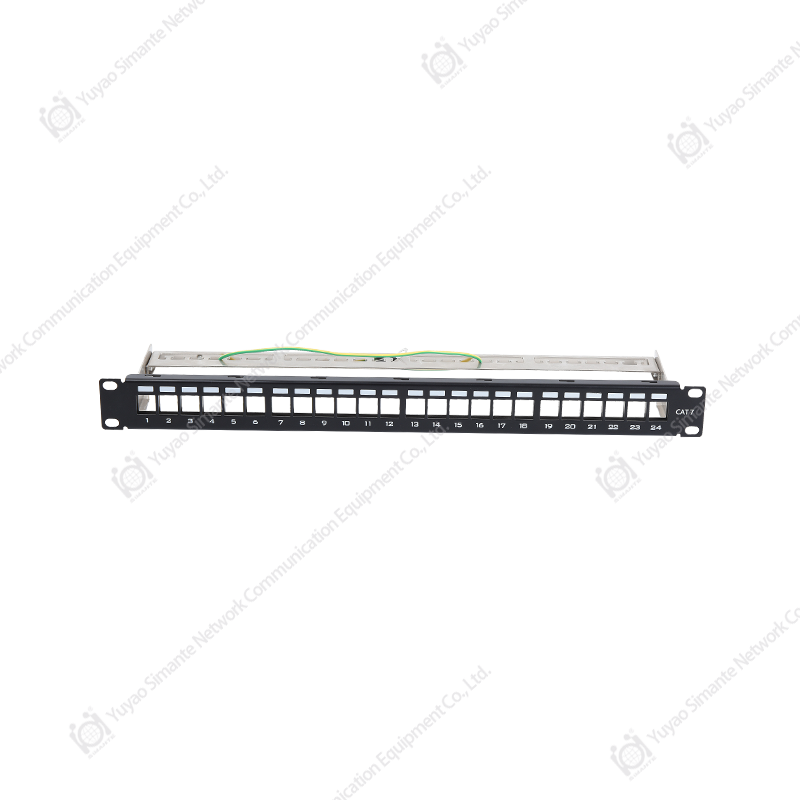

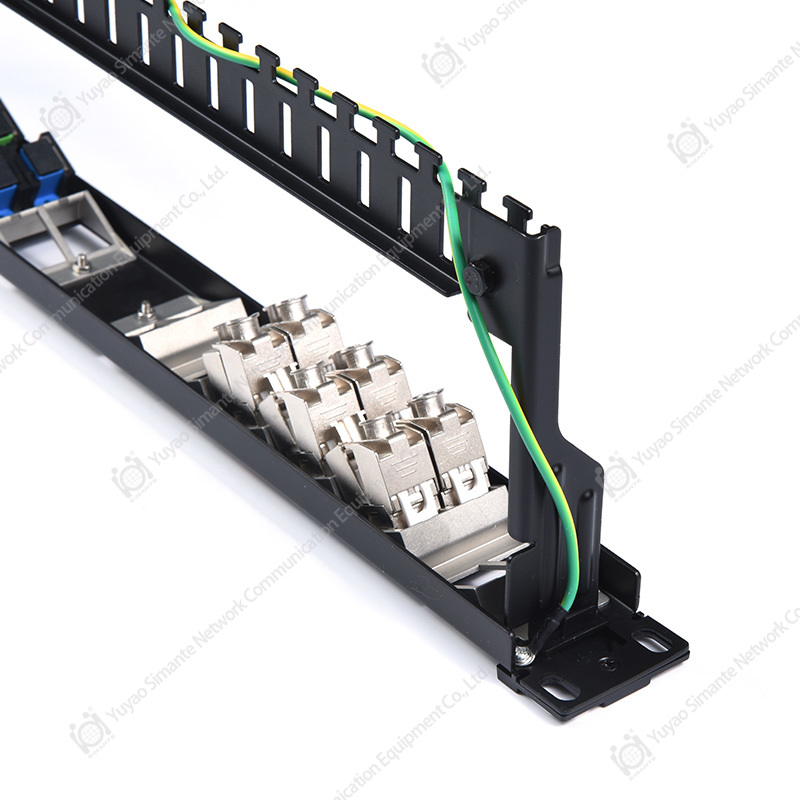

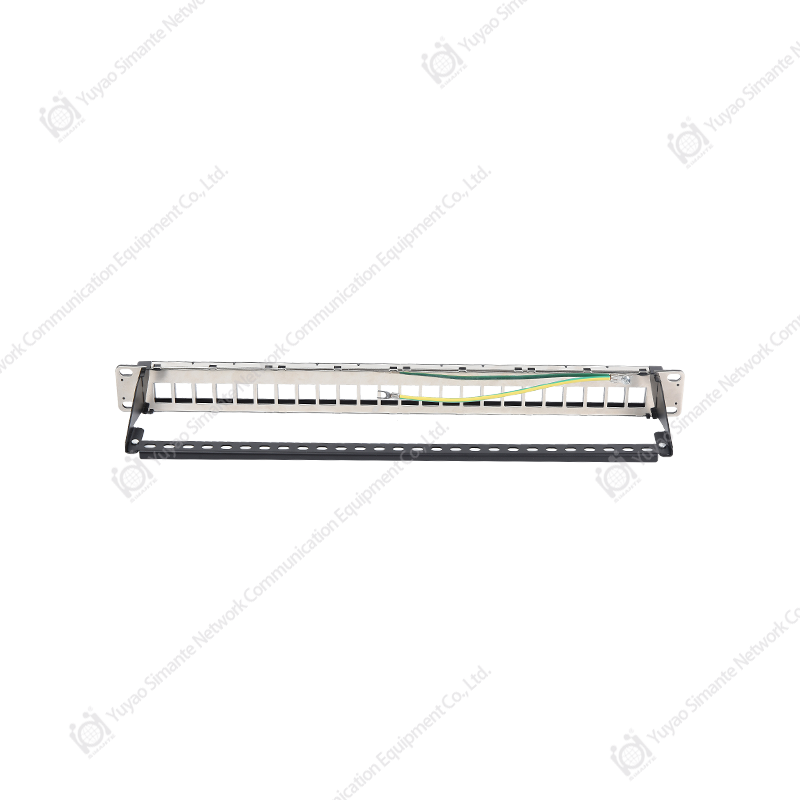

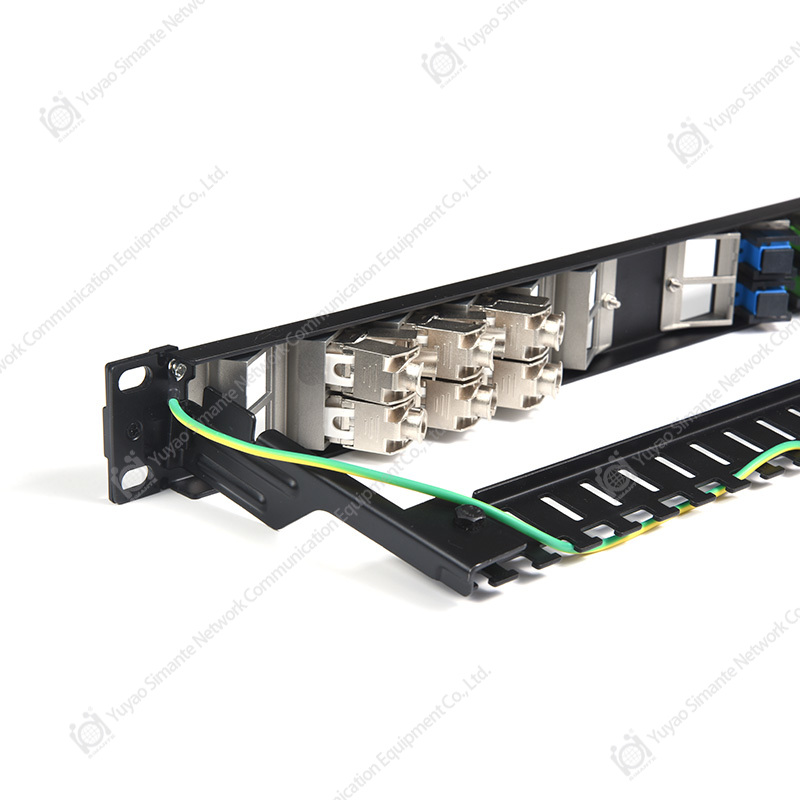

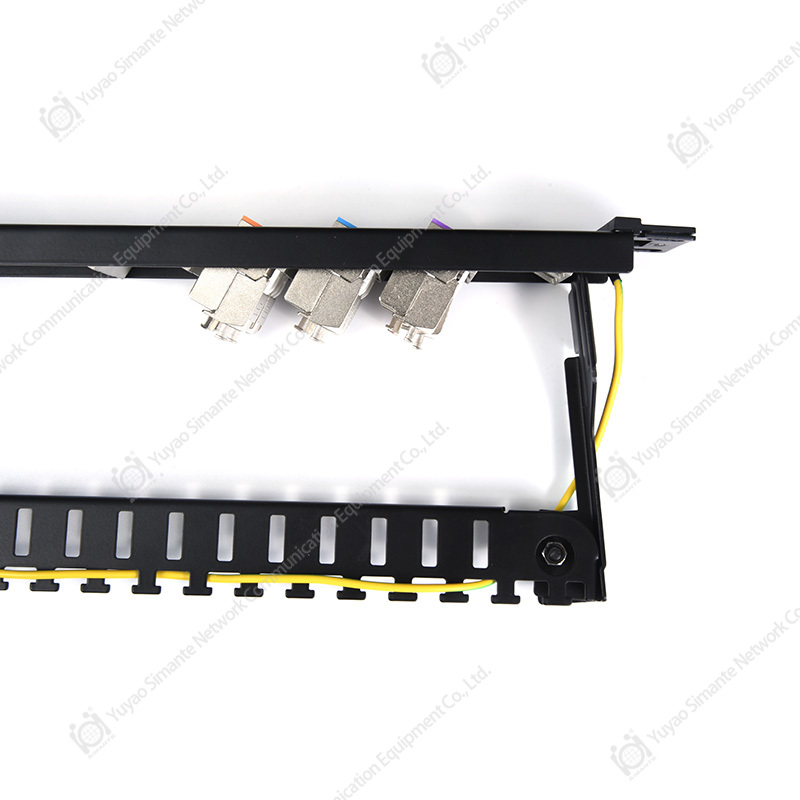

2. 1U 24 and 48 ports have labels on the front, and the large label on the front is convenient for customer's port identification; with a rear-mounted cable manager, it can effectively guide the cable to the termination point and increase the curvature radius of the cable.
3. Environmental requirements: meet ROHS standards.
4. Inter-matching relationship: use with connectors of the same standard series
5. Technical parameters:
Electrical Characteristics:
A. Insulation resistance: initial value ≥ 1000MΩ
Mechanical properties:
A. Insertion force and pull-out force: the insertion force is not more than 12N, and the pull-out force is not less than 20N
6.Material and surface treatment:
A. Metal material:
Bracket: cold-rolled steel sprayed, nickel-plated
7. Environmental performance: Temperature: -25～+70℃ Humidity: ≤85% (temperature 85℃±3℃)

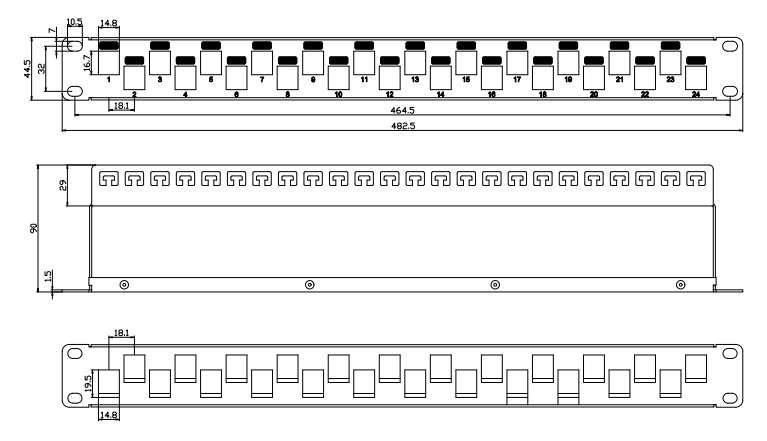

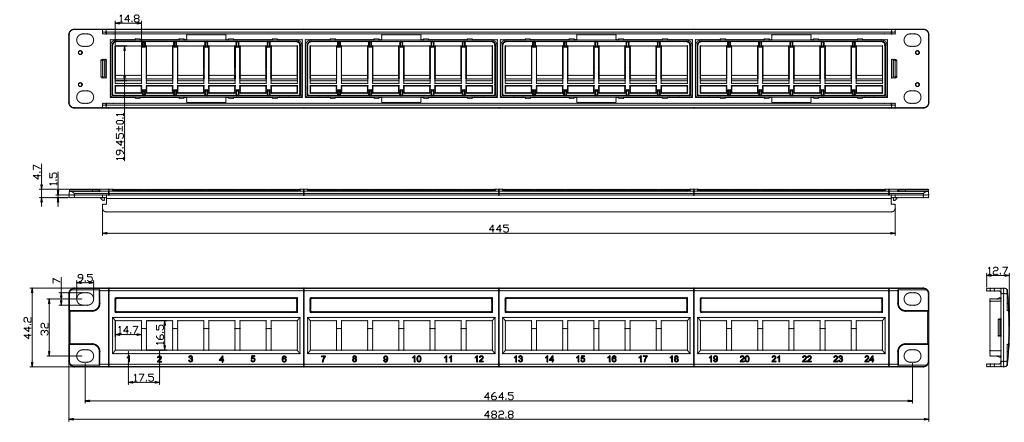

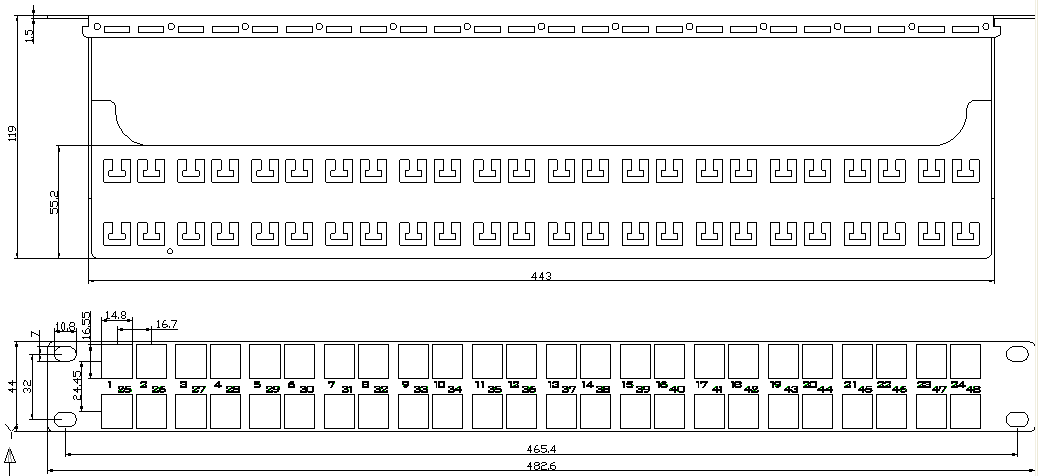

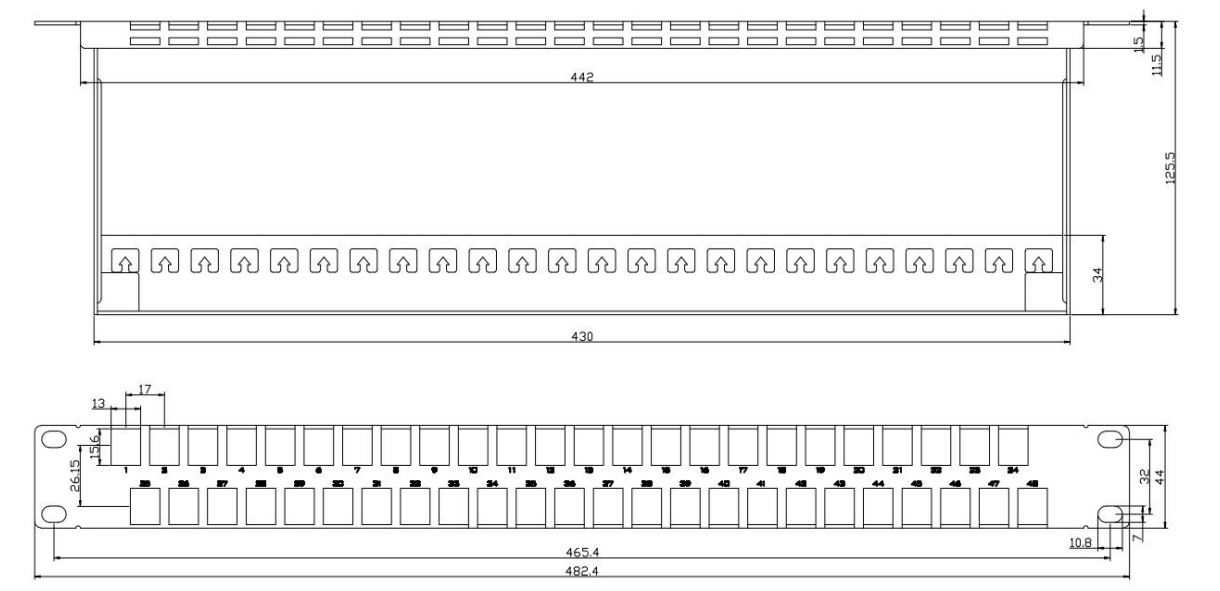

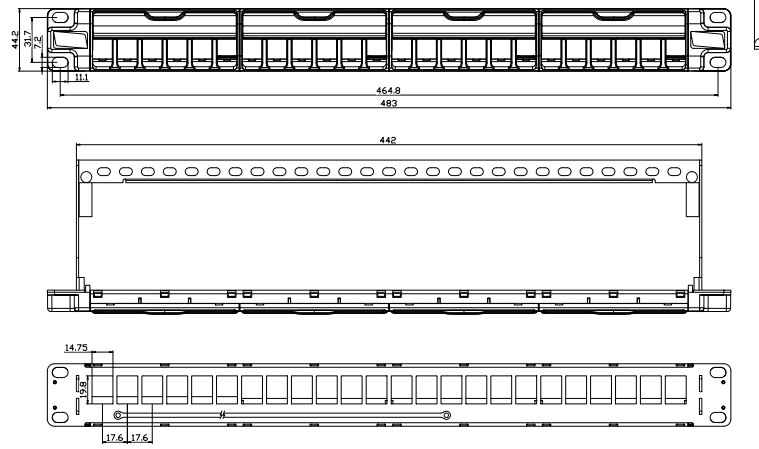

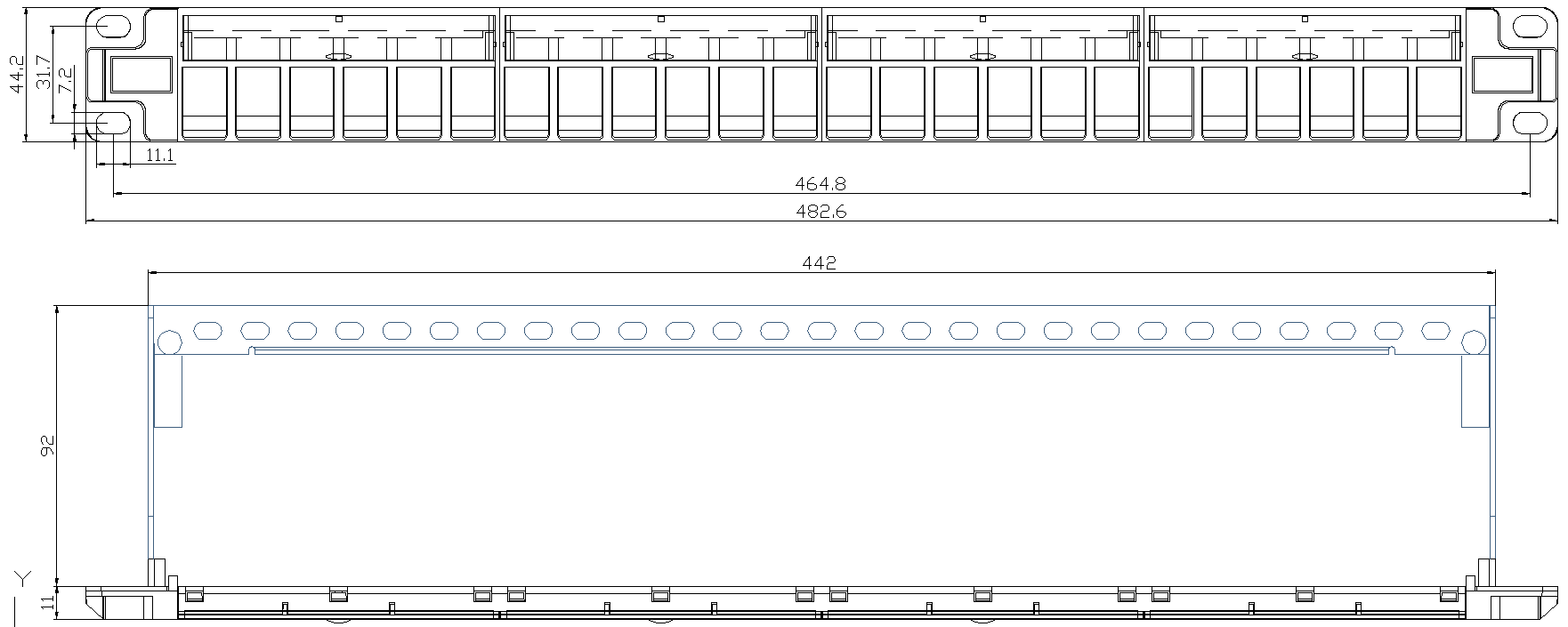

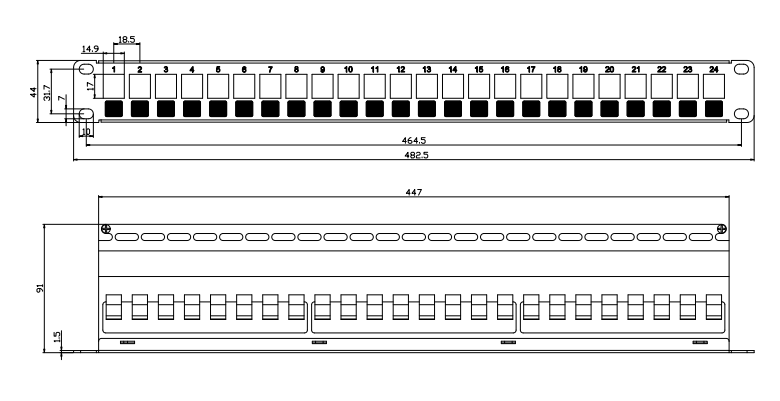

8. Outline drawing and maximum size customized
9. Packaging and storage: The product is put into a special blister bag, and then put into a cardboard box, and product accessories are placed at the same time, and a label indicating the product model and quantity is affixed on the upper left corner of the front of the carton , and put it in the carton. The packaged products should be stored in a warehouse where the ambient temperature is -5℃~+30℃, the relative humidity is not more than 70%, and there is no acid, alkali and other corrosive gases in the surrounding air, and the storage period is three years.
Regular packing quantity: 10 boxes per box, 1 per box, 10 per box.
10. Note: Product use mark: customer specified packaging.
Since 2005

Yuyao Simante Network Communication Equipment Co., Ltd.

Yuyao Simante Network Communication Equipment Co., Ltd. is professional FTP Blank Patch Panel manufacturers and suppliers in China, we offer complete network cabling solutions and optical fiber products integrating design, development, sales and service. The factory has 10 regular and customization production lines, fully automatic injection molding machine 10 sets, semi-automatic injection molding machine 20 units, all kinds of automatic installed machine 8 units, maintaining the stable annual output of more than 9 million. So we can custom made 24 48 Port Blank Patch Panels. Type: Shielded, Unshielded..

We specialize in network cabling solutions and optical fiber products integrating design, development, sales and service.

Based on the mature research and development system, the quality stability of Simante has been guaranteed at the design source. We have more than 10 engineers and over 30 full-time technical persons who continue to provide their professional value in the position, improving quality and promoting product update. Simante provides specialized integrated solutions for customers to ensure it meets the customer's requirement. We have advanced Blank Patch Panel factory. Welcome to visit.

17+ Industry Experience

Our main products include keystone jacks,patch panels, wall face plates, data sockets, etc., and are widely used in structured cabling, network communication, smart home and automation equipment, and other fields. The factory has 10 regular and customization production lines, fully automatic injection molding machine 10 sets, semi-automatic injection molding machine 20 units, all kinds of automatic installed machine 8 units, maintaining the stable annual output of more than 9 million.

It is precisely because we are based on the high-end market that Simante has higher requirements for product quality. Not only strictly manage the production, but also meet customers' comprehensive testing requirements for products through good performance testing. As fast growing Blank Patch Panel supliers in China, We maintain stable export volume in Europe, Australia, Africa, the Middle East and Southeast Asia, and also undertake OEM and ODM projects.

Simante, help you create value together!

Certificate Display

We have a number of national patents, we have also passed the ISO9001 quality management system certification, and all our products meet the standards.

  • EMC
  • LVD
  • TUV
  • ROHS
  • ISO
  • REACH

News

Our major events and exhibition information.

What parts are 24 Port Fiber Optic Patch Panel mainly used to connect in building wiring? The horizontal wiring system is the physical link between the information point in the building and ...
In a high electromagnetic interference environment, how does the port shielded blank patch panel ensure network stability? In a high electromagnetic interference environment, the port shielded blank patch panel uses multipl...
During the wiring process, when using the 110 Wiring Block, are there any special requirements for the wiring and jumper connection methods? The 110 Wiring Block is mainly used to terminate multiple pairs of voice cables from the main machin...
What application scenarios can blank patch panels be used for? In a data center or network room, as the number of devices and bandwidth requirements increase, the ...
What positive impact can the Dust-proof Brush Cable Organizer have on extending the service life of cables? The Dust-proof Brush Cable Organizer can effectively prevent dust and debris from entering the cabin...
How does the 86 Type Single Port Rotary Faceplate perform in terms of impact resistance and collision resistance? The 86 Type Single Port Rotary Faceplate is made of high-quality ABS engineering plastics, which has...
What role do Cable Manager play in preventing cable damage? Cable Manager arrange and fix cables neatly through their unique designs, such as adjustable fingers...
What are the environmental performance requirements for Single Port Surface Box in terms of humidity? The environmental performance requirements for Single Port Surface Box in terms of humidity are extr...
What are the common types of Cable Manager? What scenarios are they suitable for? 1. Horizontal and vertical Cable ManagerThis is the most common type, usually designed with a long s...
Do different sizes and shapes of male connectors affect their performance or application range? Different sizes and shapes may result in different Male Connector arrangements, spacing, and shieldi...
What devices are mainly connected to the Surface Mount Box in the building wiring system? The patch panel is a key device in the integrated wiring system, which is used to manage and distrib...
Which level of wiring connection is the CAT6 patch panel mainly used for in the building? The CAT6 patch panel plays a key role in the structured cabling system. It is responsible for organi...

INDUSTRY KNOWLEDGE EXTENSION

A blank patch panel is a device used in networking and telecommunications infrastructure to provide a structured interface for network connections. It consists of empty ports or slots that can accommodate modular connectors or other types of connectors. The primary purpose of a blank patch panel is to facilitate cable management, organization, and flexibility in network installations.
Blank patch panels are designed to be versatile and adaptable to different connector types and configurations. They allow network administrators to customize their network setups by choosing and installing the specific connectors required for their applications. This flexibility is particularly useful when working with various network standards, such as Ethernet, fiber optic, or telecommunication connections.
One of the key advantages of using a blank patch panel is future-proofing. By leaving empty ports or slots, network administrators can plan for future network expansions or changes without having to replace the entire patch panel. This adaptability ensures that the network infrastructure can evolve with technological advancements or growing demands, saving time and costs in the long run.
Here are the key functions and applications of a blank patch panel:
    Cable management: Blank patch panels are used to manage and organize network cables effectively. By providing dedicated ports or slots for connectors, they ensure that cables are neatly arranged and easily traceable, reducing the risk of tangling, disconnection, or accidental damage.
    Flexibility: Blank patch panels offer flexibility in terms of connector types and configurations. They allow you to choose and install the specific connectors required for your network setup. This flexibility is particularly useful when working with different network standards, such as Ethernet, fiber optic, or telecommunication connections.
    Future-proofing: Installing a blank patch panel allows you to plan for future network expansions or changes. By leaving empty ports or slots, you can easily add or replace connectors as needed without having to replace the entire patch panel. This adaptability ensures that your network infrastructure can evolve with technological advancements or growing demands.
    Port identification: Blank patch panels often feature labeling or numbering systems that help identify specific ports or slots. This labeling simplifies cable management, troubleshooting, and maintenance tasks by providing a clear reference for each connection point.
    Professional installations: Blank patch panels contribute to a clean and professional appearance of network installations. They help eliminate loose cables and ensure that connectors are securely fixed in place. This tidiness simplifies maintenance, reduces the risk of accidental disconnections, and improves overall system reliability.
It's important to note that a blank patch panel does not provide active network connectivity or signal distribution on its own. It acts as a passive infrastructure component that serves as an interface for connecting various devices or equipment in a structured manner.
Overall, a blank patch panel plays a crucial role in network organization, cable management, and adaptability, making it an essential component in data centers, telecommunications facilities, or any environment that requires a well-structured and scalable network infrastructure.
