Why Use Shielded Patch Cord?

Electromagnetic interference (EMI) is a prevalent and troublesome problem in modern electronic equipment and communication systems. To ensure the integrity, reliability, and stability of signal transmission, engineers must take effective measures to suppress this interference. Among many solutions, Shielded Patch Cord have become a key component in many applications due to their unique advantages.

What are Shielded Patch Cord?

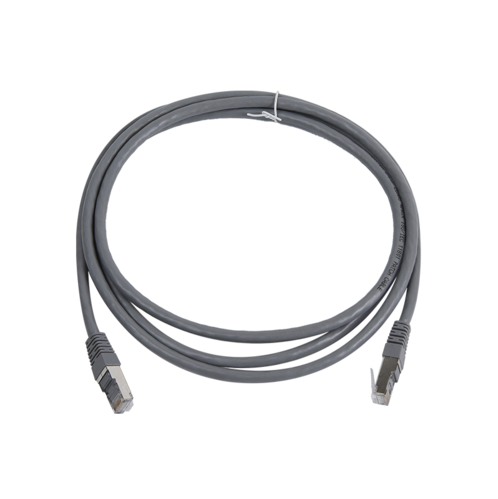

Shielded Patch Cord are essentially wire or cable assemblies with a metallic shielding layer. Unlike ordinary unShielded Patch Cord (such as unshielded twisted pair UTP), Shielded Patch Cord add one or more conductive shielding layers (usually braided mesh, aluminum foil, or a combination of both) to the outside of the internal conductors. Through proper grounding, they effectively isolate the influence of external electromagnetic noise on internal signals and prevent internal signals from radiating outwards, thus protecting the electromagnetic environment.

Why Choose Shielded Patch Cord?

Choosing Shielded Patch Cord is not an optional luxury, but a necessary condition for ensuring system performance in specific high-demand environments. Here are some key reasons to use Shielded Patch Cord:

1. Superior Electromagnetic Interference (EMI) Immunity

This is the most significant value of Shielded Patch Cord. In electromagnetically complex or sensitive environments such as industrial automation, medical equipment, aerospace, and data centers, high-frequency signals and strong electromagnetic waves are ubiquitous. Shielding acts like an electromagnetic "shield," significantly reducing crosstalk and impact of external noise on transmitted signals by reflecting and absorbing electromagnetic waves. This is crucial for ensuring the accuracy of critical data, such as high-precision measurements and real-time control signals.

2. Improved Signal Transmission Quality and Rate

With ever-increasing data transmission rates (e.g., high-speed data buses, high-bandwidth Ethernet), even minor interference can lead to data errors (increased bit error rate). Shielded patch cords effectively isolate noise, ensuring signals maintain their intended waveform and strength during transmission, allowing systems to communicate stably at higher rates and lower bit error rates. For long-distance or high-frequency applications, using shielded patch cords is fundamental to achieving high-performance transmission.

3. Protection of Sensitive Equipment and Compliance with Electromagnetic Compatibility (EMC) Requirements

Shielded patch cords not only prevent external interference from entering but also prevent internal signals from radiating outwards. In some applications, the electromagnetic radiation generated by equipment must be controlled within specific standard ranges (i.e., compliance with EMC standards) to avoid interfering with other equipment. For example, electromagnetic radiation from medical equipment requires extremely strict control. Using high-quality shielded patch cords is a crucial step in ensuring equipment passes stringent EMC certifications.

4. Improved System Safety and Reliability

In environments with strong electric fields or high-voltage pulses, the metal shielding layer of shielded patch cords provides additional grounding protection, improving the system's surge and electrostatic discharge (ESD) immunity. This enhanced reliability reduces system failures and downtime, which is indispensable for mission-critical systems requiring high continuity.

Application Scenarios: Where do shielded patch cords function?

• Industrial Control and Automation: Near strong electromagnetic interference sources such as motors and frequency converters, shielded cables and patch cords used to connect sensors and controllers ensure the accuracy of control signals.


• Communication and Networking: In data centers or densely populated server rooms, shielded network patch cords (such as SFTP or FTP cables) resist crosstalk between high-density cables.


• Medical Electronics: Ensures uninterrupted data transmission for life support systems and high-precision diagnostic equipment.


• Automotive Electronics: The complex electromagnetic environment inside automobiles necessitates the use of Shielded Patch Cord for critical buses (such as CAN and Ethernet).



When your application involves high-speed data, sensitive signals, complex electromagnetic environments, or requires compliance with stringent EMC standards, choosing Shielded Patch Cord is the optimal choice to ensure high system performance, high reliability, and long-term stability.
