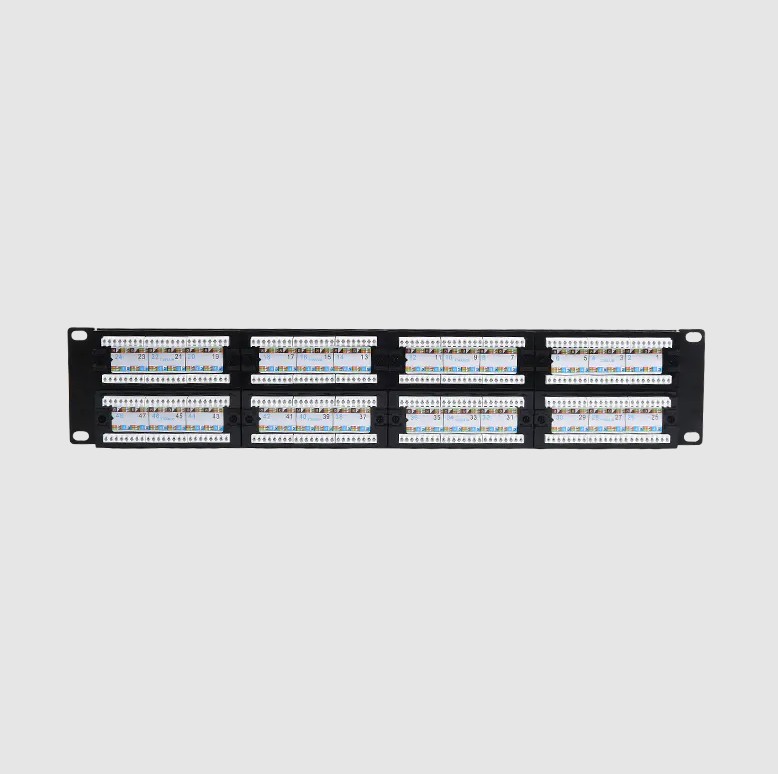

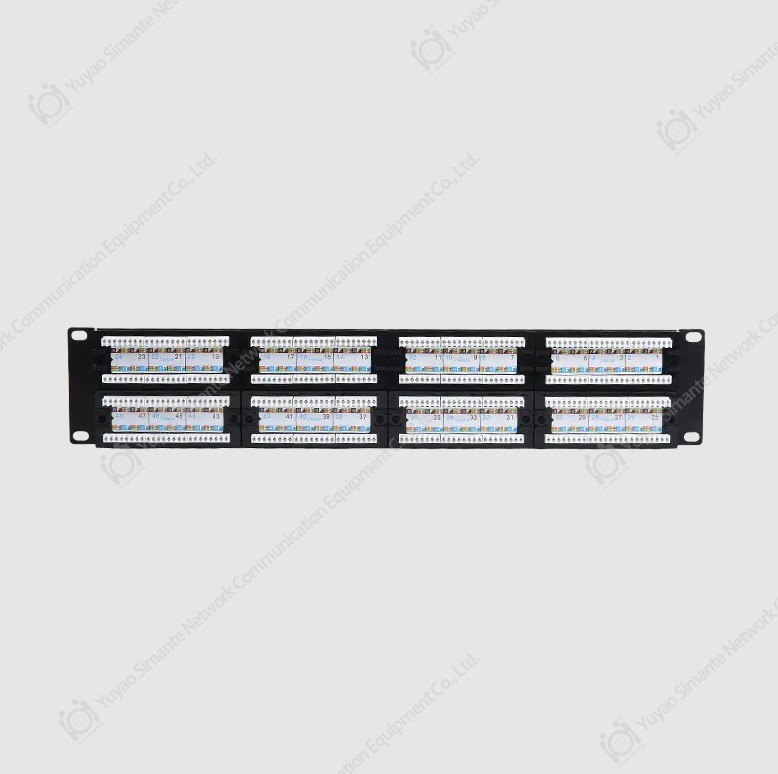

عربىA patch panel typically consists of a series of ports that can be connected to switches, servers, or other network devices via patch cables. Its core value lies in separating permanent wiring (such as cables in walls or under floors) from flexible patch cable connections. This reduces wear and tear on permanent wiring caused by frequent plugging and unplugging, thereby extending cable life and significantly simplifying daily network management.
How does a patch panel work?
The operating principle of a patch panel can be divided into two main parts: termination and connection.
1. Termination
First, the network cable (usually twisted pair, such as Cat5e or Cat6) running from the wall or ceiling is stripped and the eight copper wires are terminated according to a specific standard (T568A or T568B) to insulation displacement connectors (IDCs) on the back of the patch panel. This process permanently secures the cable to the patch panel.
2. Connection
After termination, the corresponding RJ45 ports are exposed on the front of the patch panel. You can now use short patch cables to connect these ports to ports on the network switch. For example, if you want to connect a computer in a conference room to the network, simply terminate the cable extending from the port on the conference room wall to the patch panel and then use a patch cable to connect the corresponding port on the patch panel to a port on the switch. This flexible connection method allows network administrators to easily change the connection location or topology of devices without having to re-route cables.
Types of patch panels
Based on different standards and application scenarios, patch panels are primarily categorized into the following types:
- Unshielded and Shielded Patch Panels (UTP/STP): UTP panels are suitable for most office environments, while STP panels are used in areas with high electromagnetic interference.
- By Port Count: Common options include 24-port and 48-port patch panels, chosen based on network scale and expansion needs.
- By Application: Copper patch panels are widely used, while fiber optic patch panels manage fiber networks and protect splice points.
- By Installation: Rack-mounted patch panels (1U or 2U) are installed in standard 19-inch cabinets for centralized management.
Patch Panels vs. Switches
Patch panels and switches play different roles in a network, but they complement each other.
- Patch panels: Passive devices that provide physical connection and structured cable management.
- Switches: Active devices that process data and forward packets to enable communication between devices.
In a typical cabling setup, cables from rooms terminate at the patch panel, and short patch cables connect the panel to the switch. This layered approach simplifies deployment, troubleshooting, and maintenance.
