What is a network faceplate?

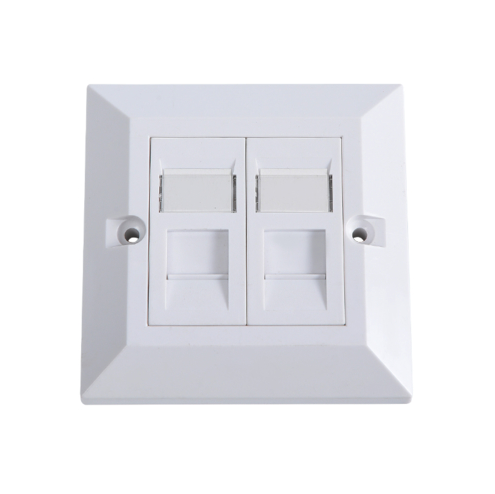

A network faceplate is an essential terminal device in modern structured cabling systems. It is a small, aesthetically pleasing, recessed device designed to provide access points for network, telephone, or multimedia connections within a room or building.

network faceplates: Function and Core Value

The core value of network faceplates lies in transforming the complex ends of network cables into convenient and secure socket interfaces for users, while maintaining a clean and aesthetically pleasing wall surface.

1. Structure and Components

A typical network faceplate usually consists of the following parts:

Panel/Frame

Made of plastic or metal, designed for embedding in a wall or mounting on a surface. It provides a uniform and aesthetically pleasing external finish.

Modular Outlets (e.g., RJ45 Outlets)

These outlets are the core of the network faceplate. They are installed within the frame, allowing users to easily connect devices such as computers, printers, IP phones, etc., via network patch cords.

Mounting Accessories

Used to securely fasten the panel to the wall or mounting box.

2. Application Scenarios and Connectivity Advantages of network faceplates

network faceplates are widely used in various environments requiring convenient network access, playing a crucial role in different locations:

Office Buildings/Office Spaces

Main Purpose: Provides standardized network (data) and telephone (voice) access points for desks and workstations.

Supported Equipment: They are typically used in conjunction with patch panels and cable managers placed in network cabinets for centralized connection management and neat cable routing.

Residential/Smart Home

Main Purpose: Achieves reliable wired network coverage throughout the home. This is essential for providing stable, high-speed wired connections for smart TVs, home office computers, surveillance cameras, or game consoles.

Supported Equipment: In home cabling boxes, network faceplates are often connected to patch panels or directly to the main router.

Data Centers/Server Rooms

Main Purpose: Serves as an endpoint between mobile devices and permanent cabling in server racks and equipment racks, enabling high-density, flexible data connectivity.

Compatible Equipment: They work with switches and a wide range of cable managers to ensure efficient management and clarity of connectivity in critical infrastructure.

By working with patch panels and cable managers in these locations, network faceplates provide a complete, organized, and easy-to-maintain structured cabling solution.

network faceplates are wall-mounted network interface terminals that connect the hidden portion of a structured cabling system to the user's everyday devices, providing convenient, reliable, and aesthetically pleasing network connectivity. Understanding what network faceplates are is understanding the foundation for efficient and organized data communication in modern buildings.
