What is a male connector?

A male connector is a component specifically designed to establish an electrical or mechanical connection with a female connector. They typically feature protruding pins or plugs that plug into corresponding receptacles on the female connector, ensuring a secure and reliable connection. Male connectors play a vital role in the electronics and technology sectors, being widely used in a variety of devices and systems to ensure the seamless transmission of information and power.

Male connectors typically feature protruding pins or terminals, often made of highly conductive metal materials such as copper alloys and treated with surface treatments such as gold plating to reduce contact resistance and enhance resistance to oxidation and corrosion. The number, diameter, length, and arrangement of the pins vary depending on the connector type, application, and transmission requirements.

The primary function of a male connector is to quickly mate with a female connector, which is designed for easy insertion, thereby establishing a quick electrical connection between devices. During the connection process, the male connector often acts as a removable component, allowing it to flexibly mate with the female connector in different locations. For example, the external data cable of a portable electronic device has a male connector on one end, allowing users to easily plug it into the device's female port for data transfer or charging.

There are many types of male connectors, each designed for specific applications. Some common male connector types include:

USB connectors: USB (Universal Serial Bus) connectors are the most well-known male connectors in modern electronics, used for data transmission and power supply, and are widely used in devices such as computers, smartphones, and printers.

Audio jacks: Jacks such as 3.5mm and 6.35mm are used to transmit audio signals in audio devices.

Coaxial connectors: Used to transmit radio frequency (RF) signals and are common in cable television, satellite communications, and network systems.

Power connectors: Used in power distribution, charging devices, and renewable energy systems.

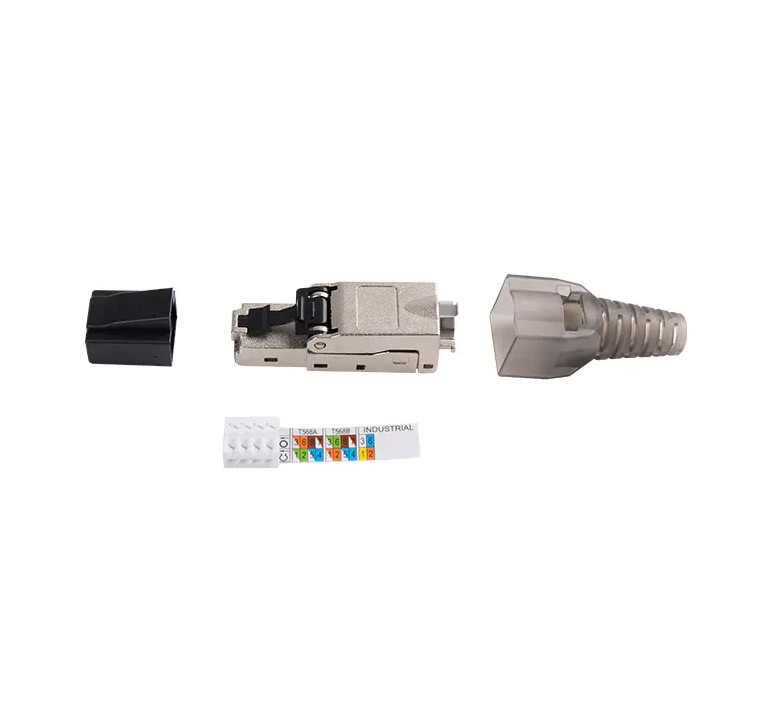

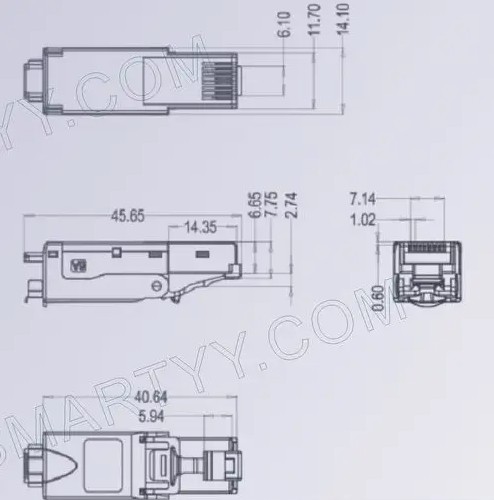

Ethernet connectors: Connectors such as RJ-45 connectors are used to establish wired internet connections.

In recent years, the robust connection performance of male connectors has been further improved. For example, APTek Electronics Korea Co., Ltd. has obtained a patent for a male connector that covers a connector assembly comprising a female connector and a male connector secured to the female connector in a first direction. This design enhances the stability and reliability of the connection through features such as the terminal housing, body, cover, retainer, and connector arm.

The main differences between male and female connectors lie in their structure and function. Male connectors typically feature protruding pins or plugs, while female connectors have recesses or sockets that receive the male connector. During the connection process, the male connector typically acts as the movable component, while the female connector provides a stable docking base.

Male connectors are widely used in various electronic devices and systems, including:

Cable end connections: These are used at the ends of various cable assemblies for connection to other devices.

External device connections: Many electronic devices use male connectors for external connections, allowing users to connect peripheral devices.

Network connections: Ethernet connectors, for example, are used to establish wired internet connections.

Male connectors are essential components in the electronics and technology world. They provide secure and reliable electrical connections, ensuring the seamless transmission of information and power. Whether used for data transmission, audio signal transmission, power supply, or network connectivity, male connectors play a vital role.
