What is a Keystone Jack?

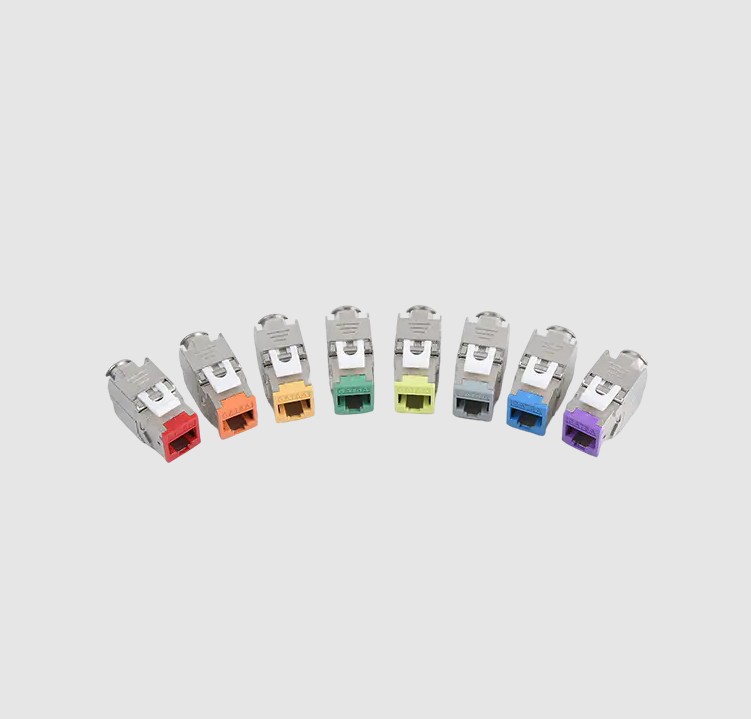

In modern network cabling and home theater setups, you may often hear the term "Keystone Jack" (also known as a trapezoidal jack). So, what exactly is a Keystone Jack? Simply put, it's a standard modular jack designed to install in wallplates, patch panels, or surface-mount boxes to connect a variety of low-voltage cables, such as Ethernet, telephone, audio, and video. It's called "Keystone" because its unique and universal trapezoidal snap-on design allows different connector types to be easily interchanged and installed in a single panel.

Keystone Jack Core Advantages

The Keystone Jack's greatest value lies in its flexibility and modular design.

• Ultimate Versatility and Flexibility: Keystone Jacks allow you to mix and match different connector types on a single standard wallplate or patch panel. For example, you can install a Category 6 Ethernet jack, an HDMI port, and a fiber optic connector on a single panel. This modular approach makes upgrading and maintaining network or audio/video systems incredibly simple. If your needs change, you can simply replace a specific Keystone module rather than replacing the entire wall plate or rewiring.


• Easy Installation: Most Keystone jacks feature a tool-less or punch-down design. Tool-less designs, in particular, allow users to easily press the cable cores into the module without the need for complex tools, significantly simplifying the effort and time required for network cabling.


• Standardized Interface: The Keystone standard ensures compatibility between modules and panels from different manufacturers. This provides a wide range of cabling system options.


Common Keystone Jack Types and Applications

• Ethernet Connectors (Network Jacks): This is the most common type and includes Cat5e, Cat6, Cat6a, and even the latest Cat8 network jacks. They are a key component in building wired local area networks (LANs).


• HDMI Modules: Used to connect HDMI cables inside the wall to external devices and are commonly used in home theater installations.


• USB Module: Provides a USB charging or data expansion port on the wall.


• Audio/Video Connectors: Connectors such as RCA, speaker cable connectors (banana plugs), or 3.5mm audio jacks are used for professional audio cabling.


• Fiber Optic Connectors: Connectors such as LC or SC are used for fiber optic cabling systems requiring extremely high bandwidth.


• Phone Jack: Traditional RJ11 phone jacks.



How to Choose Your Keystone Module?

Choosing the right Keystone jack depends primarily on your cabling needs:

• Application Type: Determine whether you need to connect network (Category 6a for high performance), video (HDMI), or audio (RCA).


• Cable Standard: For network cabling, ensure the grade of your Keystone jack (such as Category 6) matches the grade of your cable to ensure network performance.


• Termination Method: Tool-less Keystone Modules are easy to install; piercing Keystone Modules are more commonly used for professional network cabling applications requiring extremely high stability.



Keystone jacks are the essential building blocks of modern, efficient, flexible cabling systems. They provide a standardized solution that allows you to easily customize and manage your network and audio/video connections, ensuring your system is always future-proof.
